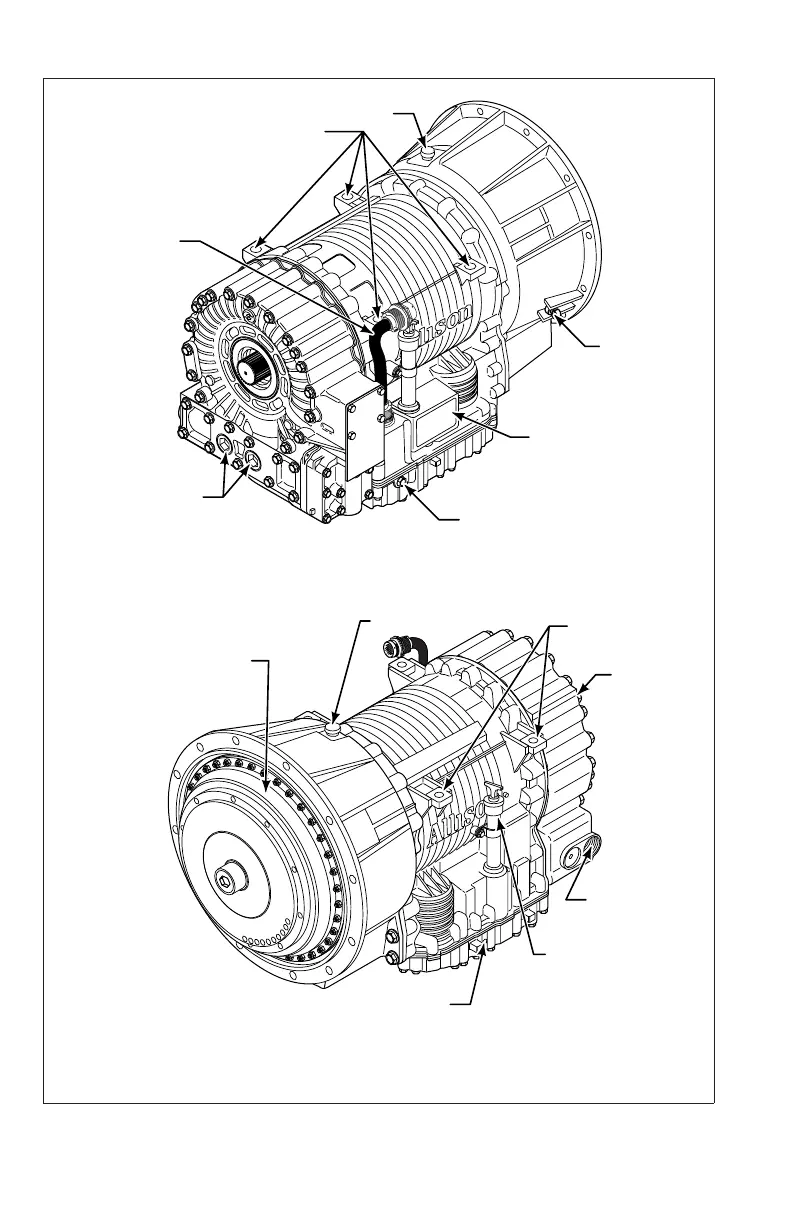

Allison Transmission 3000

ASSEMBLY PADS
(BOTH SIDES)
TO RETARDER
ACCUMULATOR
OIL FILL TUBE AND
DIPSTICK
(AVAILABLE ON
BOTH SIDES
)
OUTPUT
RETARDER
TORQUE CONVERTER
WITH LOCKUP CLUTCH
AND TORSIONAL DAMPER
BREATHER
MAIN-PRESSURE TAP
NOTE: Inch series threads
FEEDTHROUGH
HARNESS
CONNECTOR
INPUT SPEED
SENSOR
NAMEPLATE
ASSEMBLY PADS
MAIN-PRESSURE TAP
NOTE: Inch Series Threads
BREATHER
COOLER PORTS
NOTE: Inch Series Threads
RIGHT-REAR VIEW
LEFT-FRONT VIEW
V07290.01.00
Figure 1–7. 3000 Product Family Transmission with Retarder
