Allison Transmission 3000

To Next Page

To Previous Page

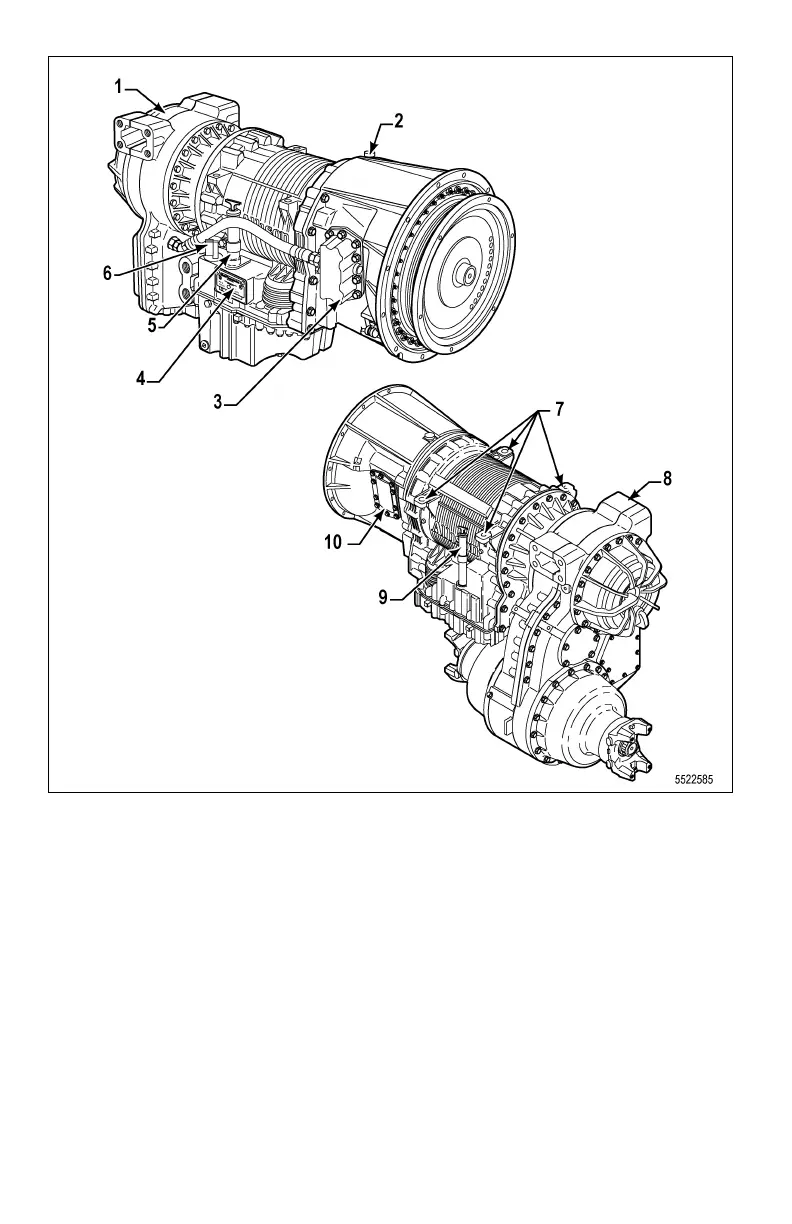

(1)–TransferCase

(2)–Breather

(3)–ScavengePump

(4)–Nameplate

(5)–OilFillTubeandDipstick

(AvailableonBothSides)

(6)–FeedthroughHarness

Connector

(7)–AssemblyPads(BothSides)

(8)–TransferCase

(9)–OilFillTubeandDipstick

(10)–PTOProvision

Figure2–4.3700SPwithTransferCase
