7.2. HITCH HEIGHT ADJUSTMENT
The MF340 & 360 hitch has been designed to allow for a number of various
hitch height options with same components used, the hitch height is normally
selected for the application and set at the factory per the options below.
The main standard hitch assembly is a bolt on assembly and once the main set-
ting is completed at the factory, it may also be adjusted on farm by moving the
assembly up or down within the bolt holes, or turning the complete hitch over,
as it is suitable to operate facing either way up.
Notes:
1: : A minimum of four M20 x 100mm Grade 8.8 bolts must be used to secure the Swivel
Ring Hitch & the Clevis Hitch to the drawbar.
2: Care must be taken, when adjusting the hitch height, so that there is adequate PTO
clearance and that there is enough ground clearance below the stand.
15

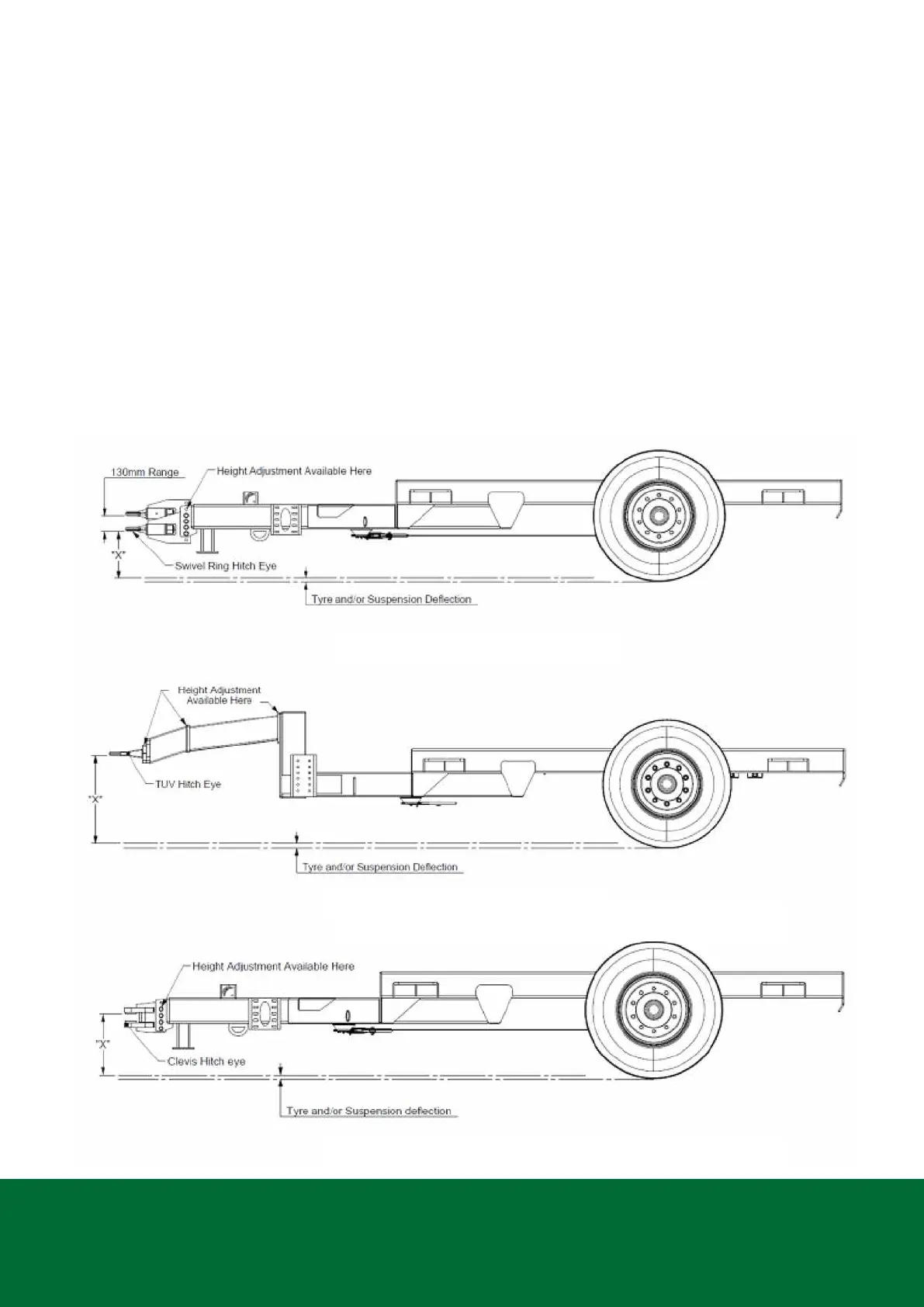

Figure 6.1: Standard Hitch Adjustment
Figure 6.2: High Hitch Adjustment
Figure 6.3: Clevis Hitch Adjustment
