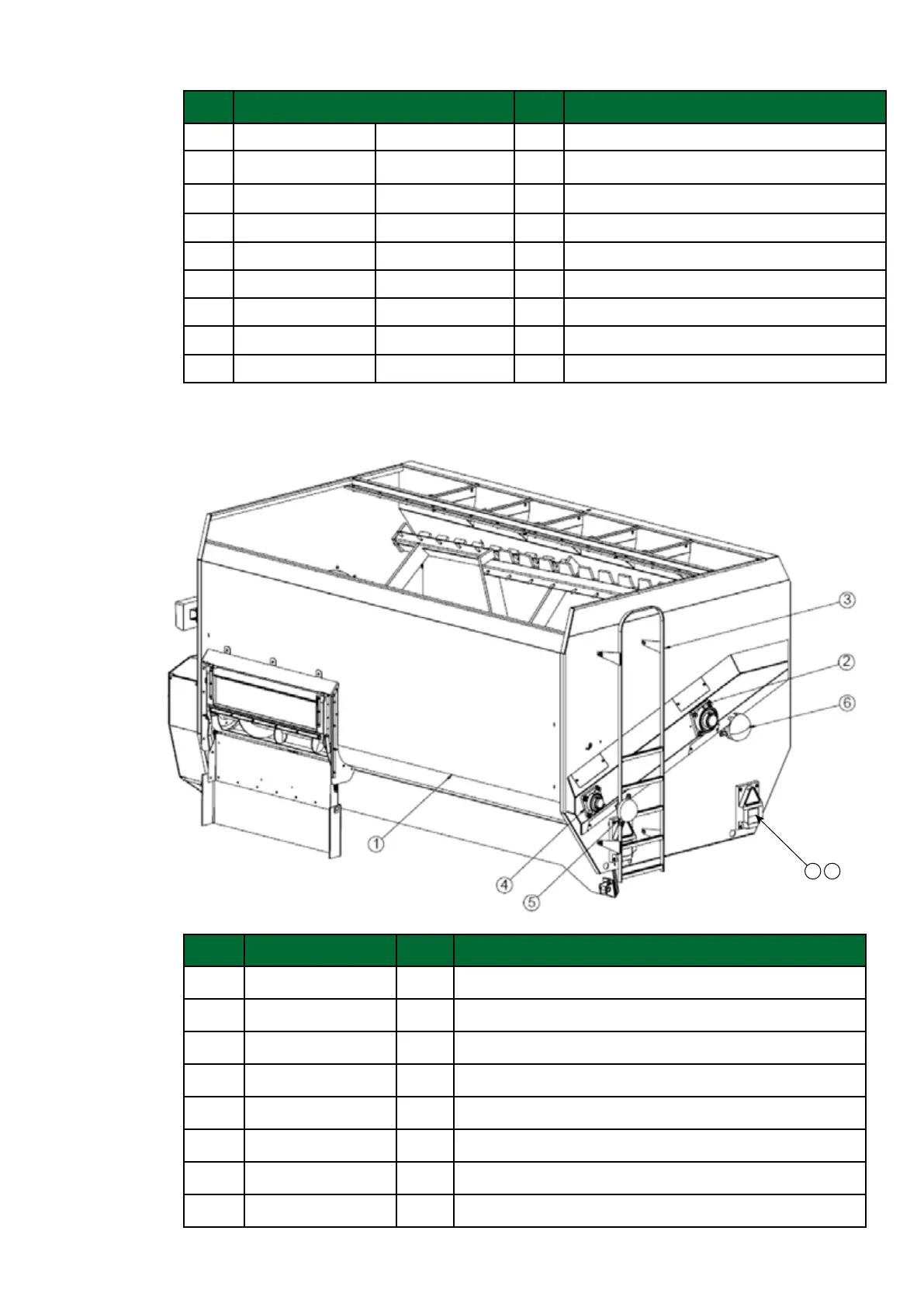

11.12 REAR PANEL PARTS
Item: P/N: Qty: Description:
1 FP160-047-0001 1 Main Body Shell assembly
2 702294 1 Rear Rotor Bearing 90mm
3 FP160-013-0001 1 Ladder Assembly
4 700842 1 Bearing, 70mm, Rear Auger Bearing
5 701273 1 Rear Auger Bearing Cover
6 701274 1 Rear Rotor Bearing Cover
7 705309 1 Rear Right Light Pod Assembly
8 705310 1 Rear Left Light Pod Assembly
Table 23: Rear panel assembly
Table 22: Body Reline Plates
Reline Plates:
Item: P/N Qty: Description:
MechFiber340 MechFiber360
- FP160-004-0015 FP200-004-0137 1 Hardened Body Liner - Front
- FP160-004-0016 FP200-004-0139 1 Hardened Body Liner - Rear
- N/A FP200-004-0138 1 Hardened Body Liner - Centre
- FP160-004-0070 FP200-004-0164 1 Hardened Body Liner - Front (Extra Blades)
- FP160-004-0071 FP200-004-0166 1 Hardened Body Liner - Rear (Extra Blades)
- N/A FP200-004-0165 1 Hardened Body Liner - Centre (Extra Blades)
- FP160-004-0020 same as 340 1 Front Panel Liner
- FP160-004-0021 same as 340 1 Rear Panel Liner
