11.14 BALEBLEND PARTS

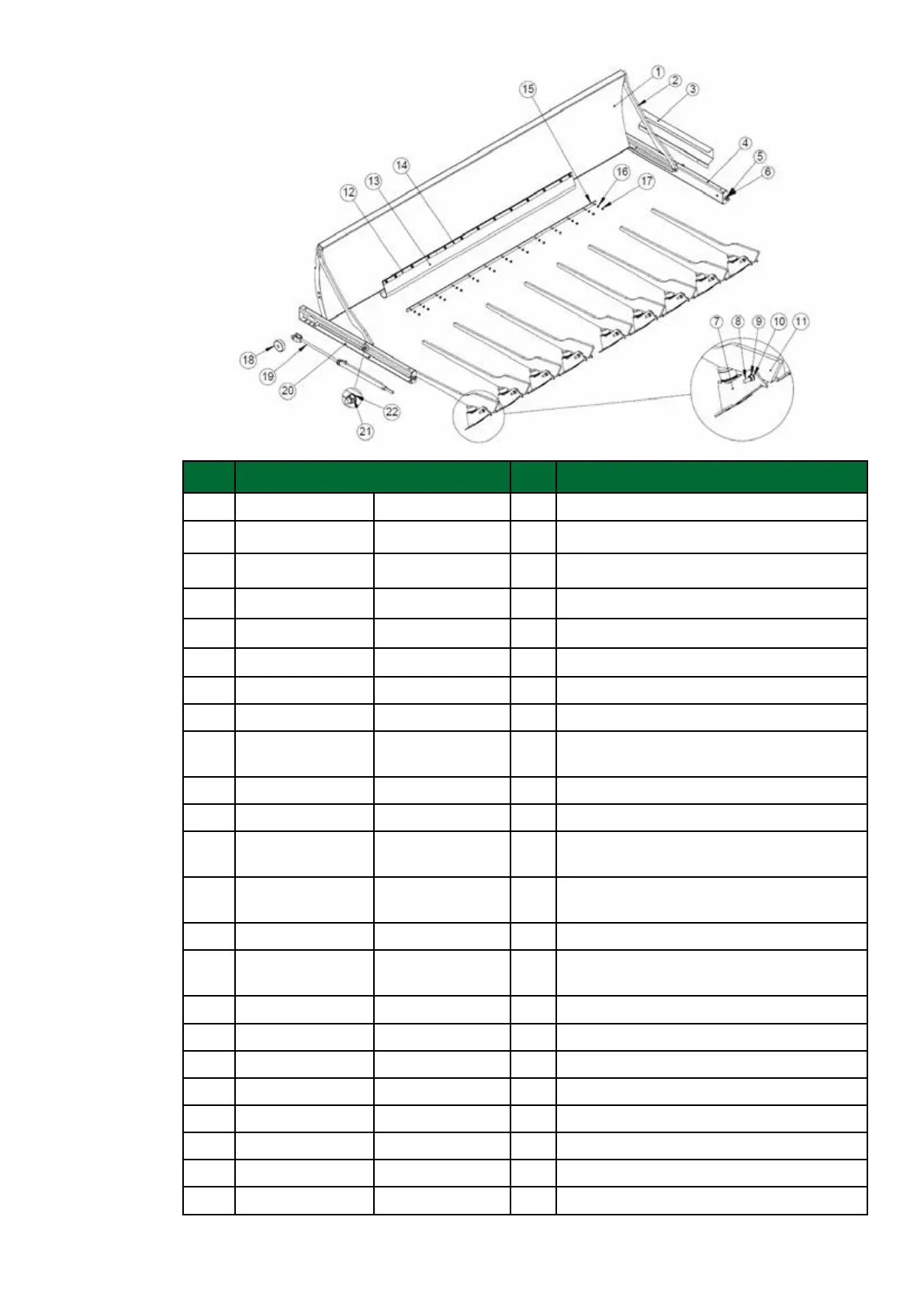

Series I BaleBlend
Item: P/N Qty: Description:
MechFiber340 MechFiber360
1 FP160-045-0083 FP280-045-0056 1 BaleBlend Creel Curved Plate Assembly
2 FP280-045-017
same as 340
2 BaleBlend Creel Guide Arm
3 FP160-045-0088
same as 340
1 Creel End Cover Plate
4 FP160-045-0003
same as 340
1 BaleBlend End Creel Assembly (Rear)
5 700733
same as 340
2 M20 Washer
6 700305
same as 340
2 M20 Locknut
7 FP200-045-0143
same as 340
9/11 BaleBlend Tine Bracket
8 FP140-045-0111
same as 340
9/11 M24 x 150mm Bolt with Grease Nipple
(701127) Fitted
9 700318
same as 340
9/11 M24 Locknut
10 700316
same as 340
9/11 M24 Washer
11 FP200-045-0154
same as 340
9/11 Tine Arm Assembly
12 FP140-045-0004
same as 340
2/0 Retainer Strip, 5mm, for Rubber Apron
(675mm Long)
13 FP140-045-0003 FP200-045-0003 1 Rubber Apron
14 FP200-045-0004
same as 340
2/4 Retainer Strip, 5mm, for Rubber Apron
(1725mm Long)
15 FP140-045-0005
same as 340
1 Apron Rail & Stud Assembly
16 700729
same as 340
13 M10 Washer
17 700241
same as 340
13 M10 Locknut
18 FP280-045-010
same as 340
2 BaleBlend Nylon Guide Wheel
19 704040
same as 340
2 End Creel Ram Assembly
20 FP160-045-0002
same as 340
1 BaleBlend End Creel Assembly (Front)
21 700283
same as 340
2 M16 Locknut
22 700732
same as 340
2 M16 Washer
Table 26: Series I BaleBlend
