Alltech KEENAN MechFiber340 - Chassis and Weighbar Components; Standard Chassis Parts and Hardware; Optional Hydraulic Jacks and Hitches

Revision G04 July 2018
Item: P/N Qty: Description:
MechFiber340 MechFiber360
- FP160-004-0015 FP200-004-0137 1 Hardened Body Liner - Front
- FP160-004-0016 FP200-004-0139 1 Hardened Body Liner - Rear
- N/A FP200-004-0138 1 Hardened Body Liner - Centre
- FP160-004-0070 FP200-004-0164 1 Hardened Body Liner - Front (Extra Blades)
- FP160-004-0071 FP200-004-0166 1 Hardened Body Liner - Rear (Extra Blades)
- N/A FP200-004-0165 1 Hardened Body Liner - Centre (Extra Blades)
- FP160-004-0020 same as 340 1 Front Panel Liner
- FP160-004-0021 same as 340 1 Rear Panel Liner
11.13 CHASSIS PARTS
Item: P/N: Qty: Description:
1 704140 2 Dinamica Generale Weighbar (Front)
2 704141 2 Dinamica Generale Weighbar (Rear)
3 EF201-12 4 Weighbar Bracket Assembly
4 700733 16 M20 Flat Washers
5 700297 16 M20 x 65 Bolts
6 700304 16 M20 Locknuts
7 704067 1 Axle, 150mm x 2100mm, 10 Stud Straight Axle
8 701952 2 385/65R 22.5 Bandenmarkt Tyre with 10 Stud, Zero Oset Rim
9 700306 20 M22 Wheel Nuts
10 702107 1 Hydraulic Hose, 17Ft, Brake Hose Assembly
11 702502 1 Handbrake Cable, 6mm Cable x 5600mm Long
12 FP160-001-0027 1 Bumper Bar Assembly
13 700835 2 Brake Ram
14 FP170-001-0097 1 Swivel Hitch Assembly
15 FP140-001-0019 1 Hydraulic Hose Holder
16 700290 4 Bolt M20 x 100 (Grade 8.8)
17 700733 8 M20 Flat Washer
18 700305 4 M20 NyLock Nut
Optional Parts
Hydraulic
Jacks
FP170-001-0006 1 Hydraulic Jack, Single Acting
704289 1 Hydraulic Jack, Double Acting
702044 1 Mechanical Jack, Side Winding, US Option. 10,000lb
Hydraulic
Jack
Brackets
EF2033-12 1 Hydraulic Jack Mounting Bracket
FP160-001-0070 1 Heavy Duty Hydraulic Jack Mounting Bracket
FP160-001-0078 1 Low Option Hydraulic Jack Mounting Bracket
704288-2 1 Double Acting Hydraulic Jack Mounting Bracket
EF1033-14 1 Sidewinding Jack Mounting Bracket
Hitches
FP160-001-0119 1 Swivel Hitch Assembly (60mm oset)
FP170-001-0197 1 Swivel Hitch Assembly (100mm oset)
FP170-001-0171 1 Swivel Hitch Assembly (Additional Hole)
Bushes
704154 1 Towing Eye Bush, 32.5mm ID
702324 1 Towing Eye Bush, 30mm ID

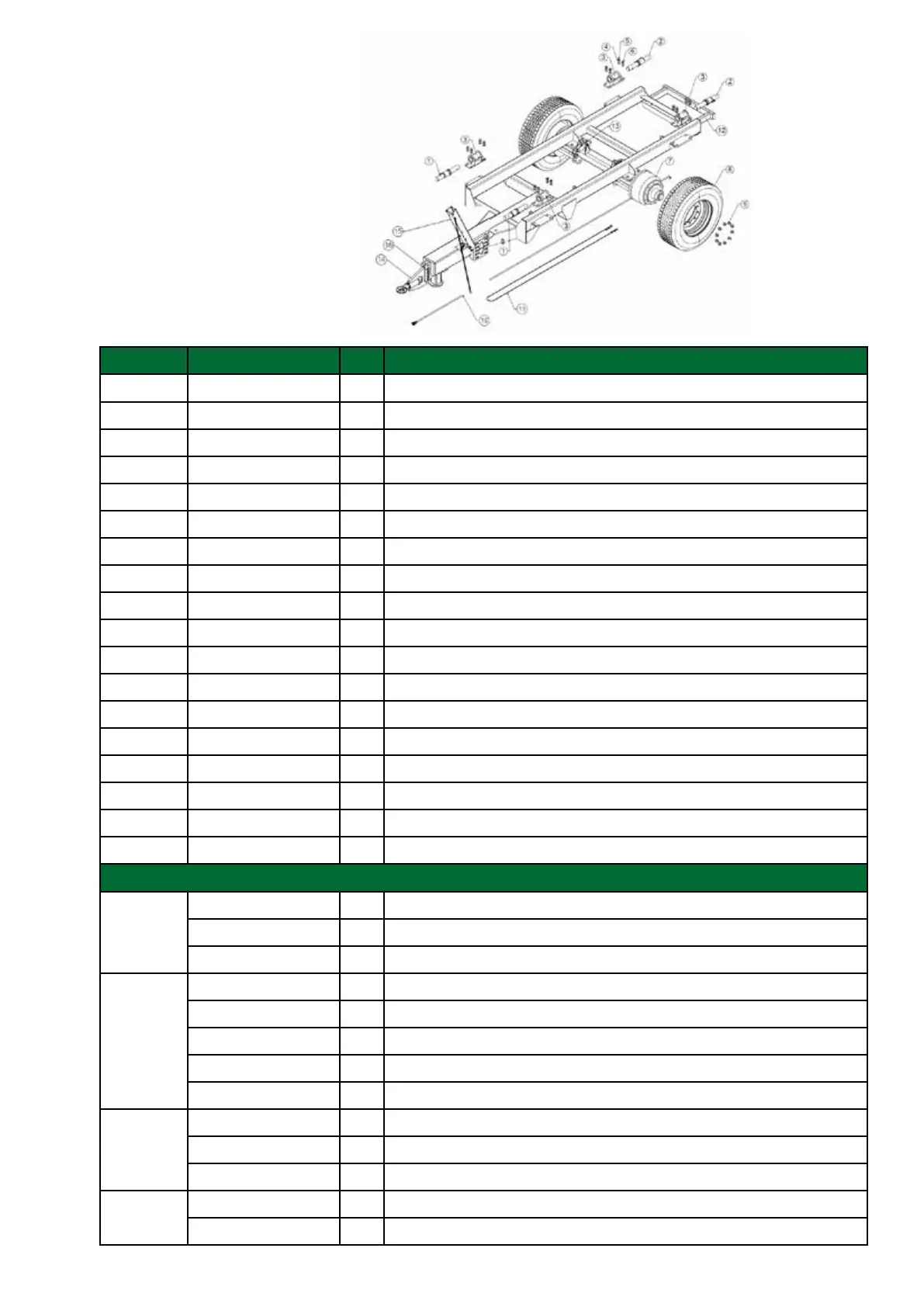

Table 24: Chassis and Weighbars
(exploded view)
59
