Revision G04 July 2018

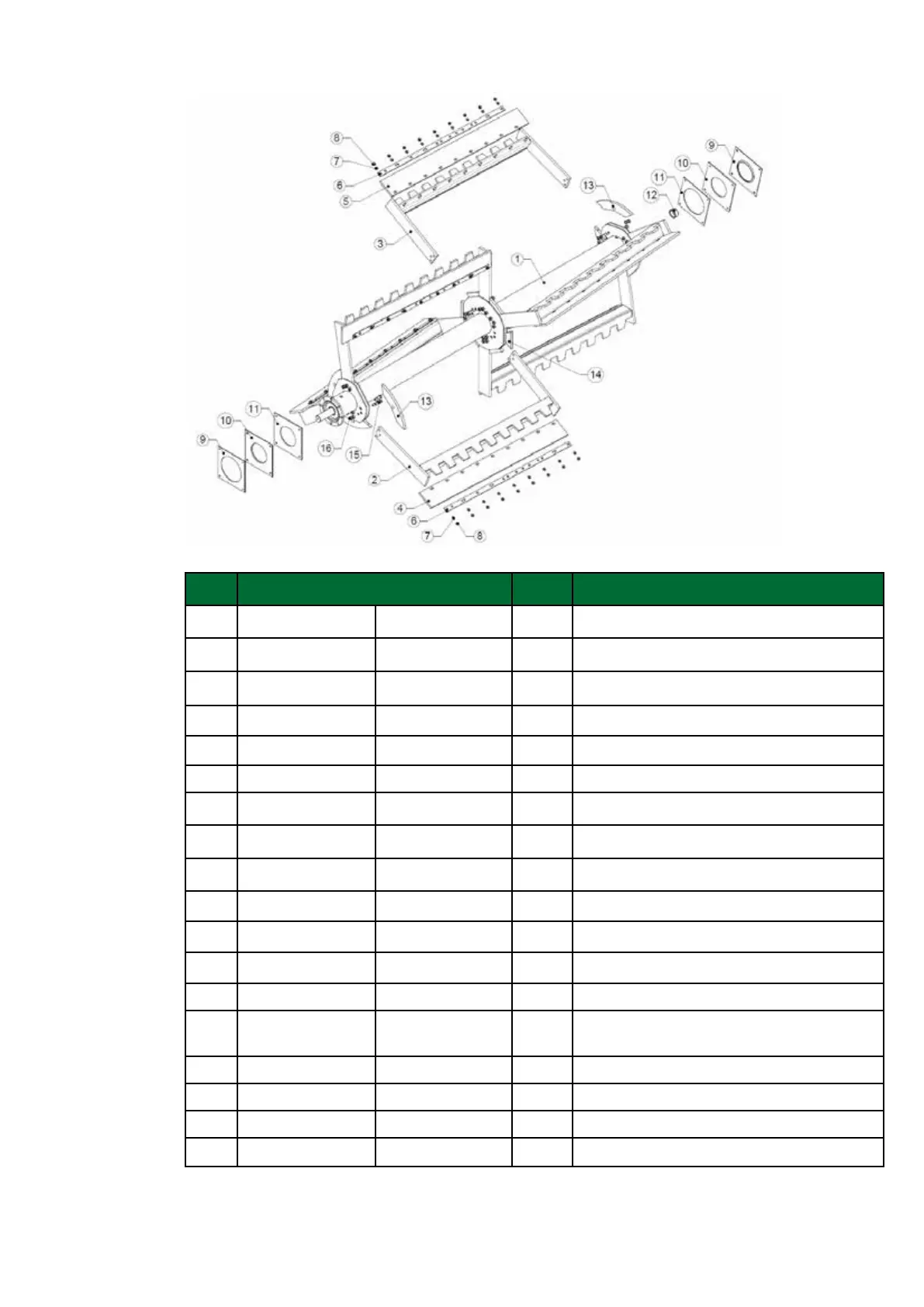

11.5 ROTOR PARTS
Item: P/N Qty: Description:
MechFiber340 MechFiber360
1 FP160-007-0032 FP200-007-0026 1 Rotor assembly
2 FP170-008-0003 FP200-008-0002 3 Front Paddle Assembly
3 FP170-008-0002 FP200-008-0003 3 Rear Paddle Assembly
4 702288 702289 3 Paddle rubber (Front)
5 702287 702290 3 Paddle rubber (Rear)
6 FP140-008-0009 same as 340 6 Paddle rubber retainer
6a n/a FP200-008-0010 6 Paddle rubber retainer
7 700732 same as 340 56/78 M16 at washer
8 700283 same as 340 56/78 M16 Nylock nut
9 701822 same as 340 2 Rotor Lip Seal Rubber
10 FP140-007-0017 same as 340 2 Braided Rotor Seal, Rubber
11 FP140-007-0006 same as 340 2 Rotor Seal Retainer
12 701541 same as 340 1 Rotor Spacer (90mm ID x 120mm OD x
40mm long)
13 FP160-007-0026 same as 340 6 End paddle block
14 RDTP207 same as 340 6 Centre paddle block
15 700298 same as 340 36 M20 x 70 Bolts
16 700305 same as 340 36 M20 Locknuts
Table 14: Rotor assembly
46
