11.15 AXLES
11.15.1 Axle Options

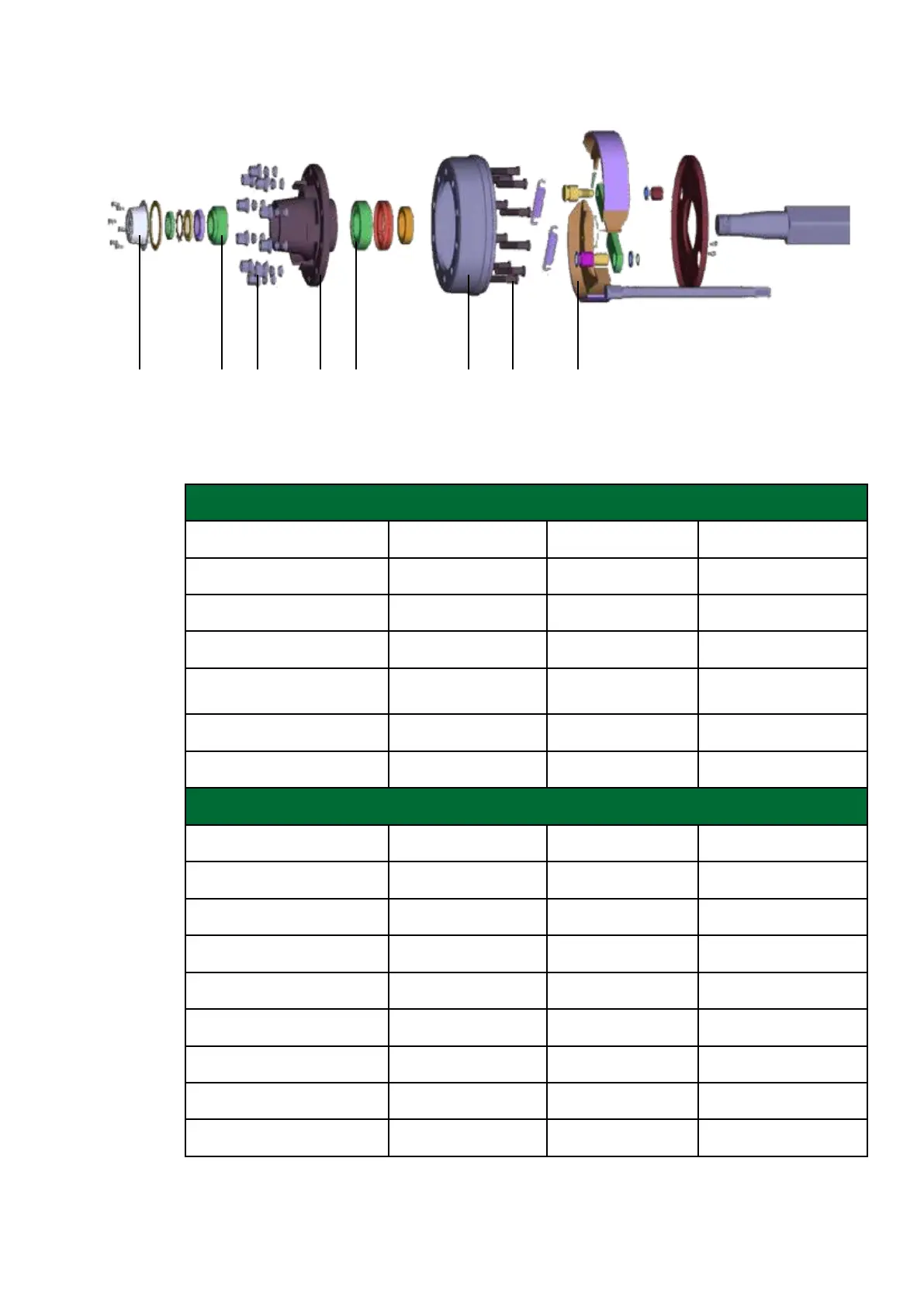

Figure 18: Typical Axle (Exploded View)
1 2 3 4 5 6 7 8
Axle Types
Axle Application MechFiber340 MechFiber360 MechFiber340/360
Axle Spec.
HS12A1-00 EUR1410 414S EF1058/EF1050
Axle Type
Straight Straight/Cranked Tandem Bogie
Axle Width (mm)
2100 2250/2400 2200
Brake Type/Dimensions
(Type/Dia. x Width, mm)
Series S, 420 x 180 414S, 406 x 140 408E, 400 x 80
No. Studs
10 10 8/10
Nut Size
M22 x 1.5 M22 x 1.5 M18 x 1.5/M22 x 1.5
Axle Spare Parts
Item No:
MechFiber340 MechFiber360 MechFiber340/360
1. Hub Cap
704167 703994 703732
2. Outer Bearing
704176 704450* 702987
3. Nut
704166 702644 702992 / 702644
4. Hub
704171 704449 704453 / 704454
5. Inner Bearing
704177 704450* 700838
6. Brake Drum
704172 704451 702466 / 704455
7. Stud
704173 700307 702868 / 700307
8. Brake Shoes
704170* 704452* 704233*
Table 30: Axle Types and Axle Spare Parts
Note: *this is a kit
