Alltech KEENAN MechFiber340 - Page 29

Revision G04 July 2018
29

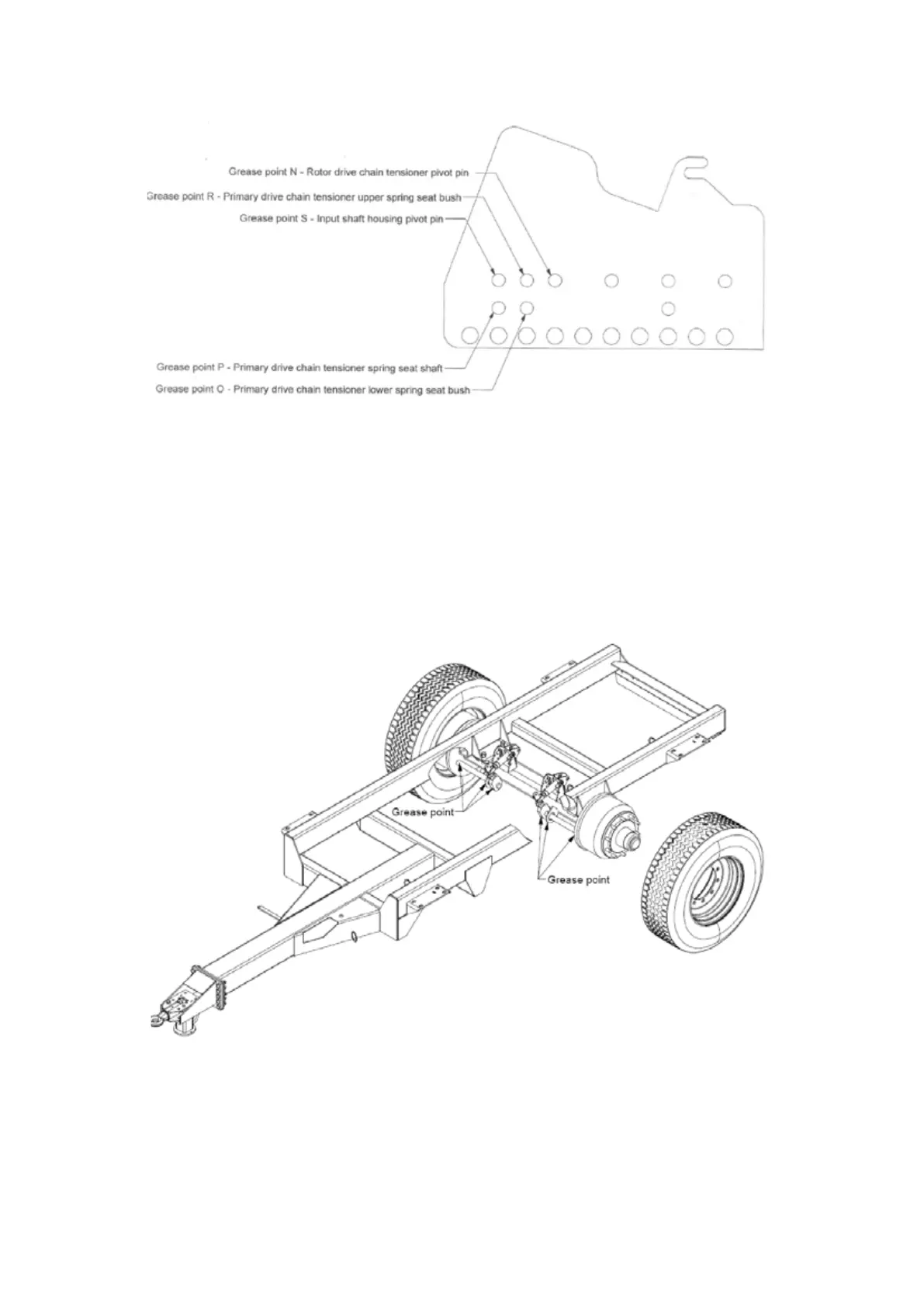

Figure 11c: Front bearing grease points on central greasing manifold
In addition to above there are a number of grease points on the chassis which should be
grease at 40 hour intervals also. These are outlined in Figure 11c & Figure 11d below.
Figure 11d: Single axle chassis grease points
