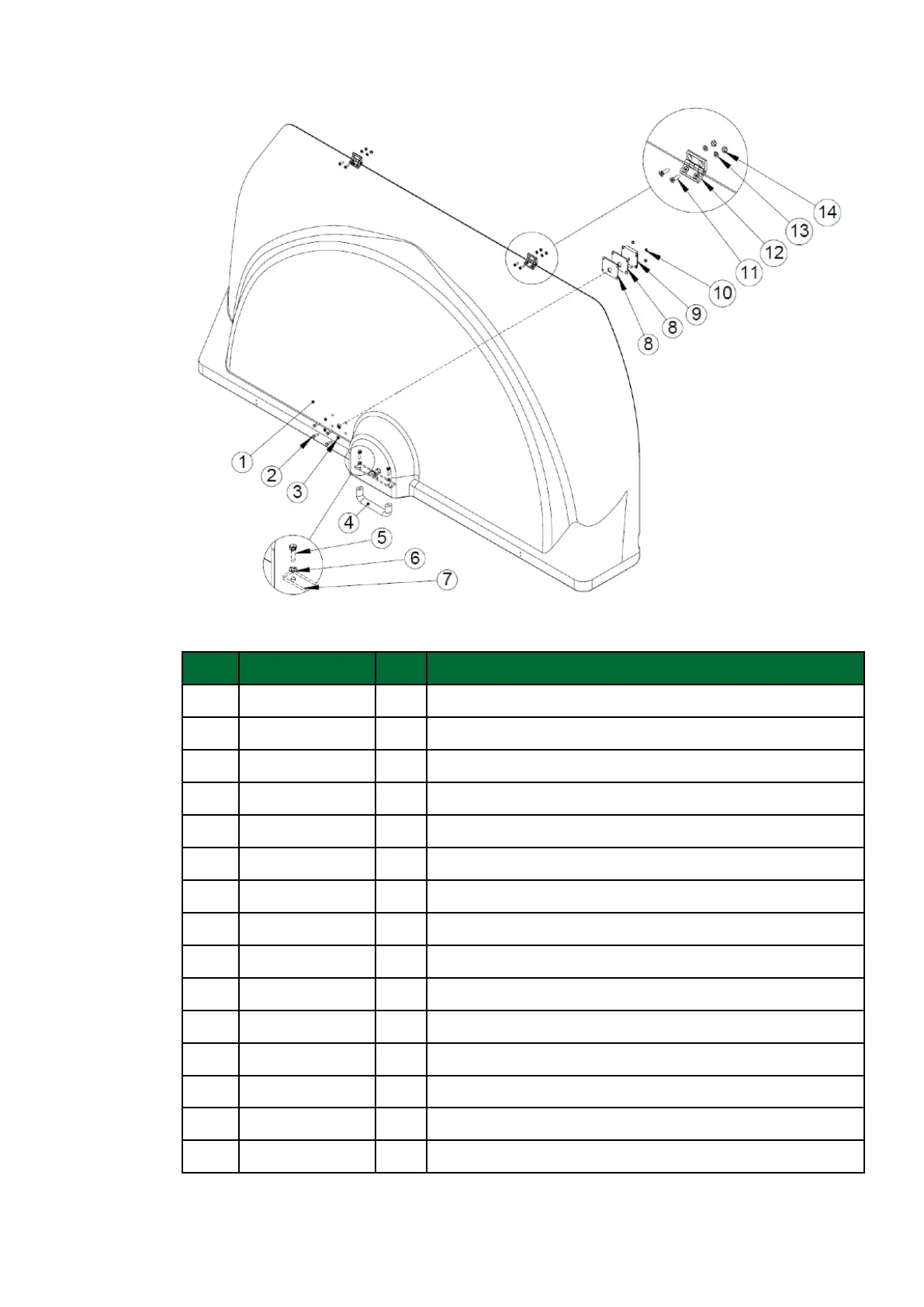

Table 11: Top cover detail
Item: P/N: Qty: Description:
1 FP160-037-0001 1 MechFiber340/360 Fibreglass Front Guard
2 700200 4 M6 x 25mm HT Setscrew
3 700751 4 M6 x 1.5mm Flat Washer
4 701363 1 Handles, U-Shape, 160mm hole centres, for Front Guards
5 700212 2 M8 x 30 Bolts
6 700736 2 M8 Flat Washer
7 FP160-037-0025 1 Handle Mounting Plate Assembly - For Fibreglass Covers
8 FP280-037-0038 2 Spring Lock Spacer Plate
9 EF1038-16 1 Spring Lock (Drilled)
10 700204 4 M6 Locknut
11 704393 8 M6 x 20mm Countersunk Bolt
12 704121 2 Steel Hinge - Black
13 700751 8 M6 x 1.5mm Flat Washer
14 700204 8 M6 Locknut
- 704516 1 Rubber Catch Kit (c/w clasp) for Front Covers (not shown)
