ATRC100 RELAY CONTROLLER
The Alpha Communications® model ATRC100 AlphaTouch™ relay controller is designed to provide the analog
relay gateway interface for the AlphaTouch™ system. The ATRC100 is built into a rugged high impact ABS
plastic case, and is powered by a separate model PS-ATRC100POE (PoE type) or RASP-PI-3-PS (5vdc type)
plug-in power supply.
Each ATRC100 requires the model CT032AE6 relay control cable, CA-USBSERV10 serial to USB cable and
KE-PWR5/2A power supply, as well as the required RY008AE and/or RY032AE addressable relay boards (and
required CT032AEJ jumper cables).
The ATRC100 features built-in Windows OS as well as full size HDMI interface, 4-USB 2.0 ports and audio
output.

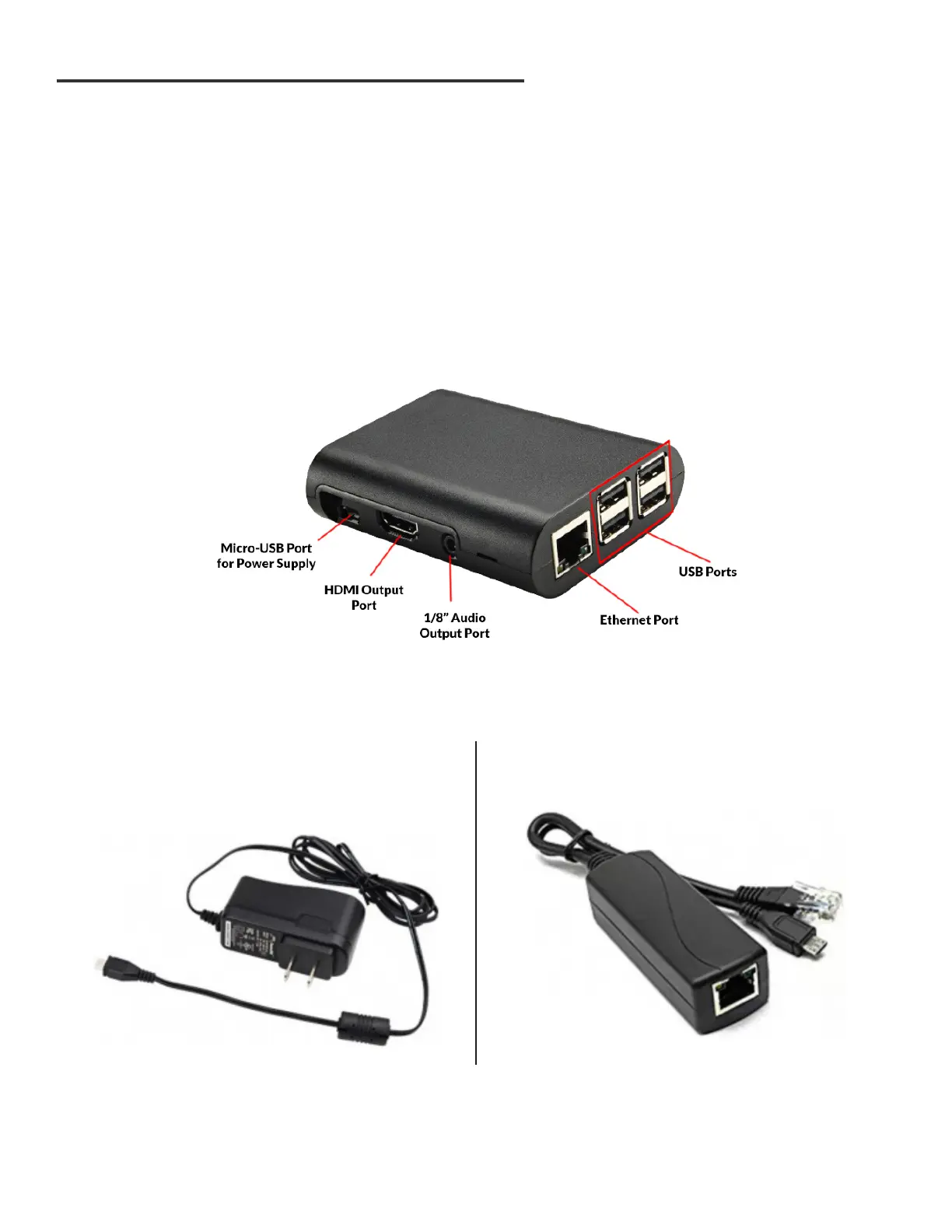

» Product Overview
» Power Supply Options
RASP-PI-3-PS
Plug-In power Supply.
Output: 5V DC / 2.5A Regulated
PS-ATRC100POE
PoE Input, Separate Power and Network Outputs.
Ideal for situaons where no plug in power is available.
40
