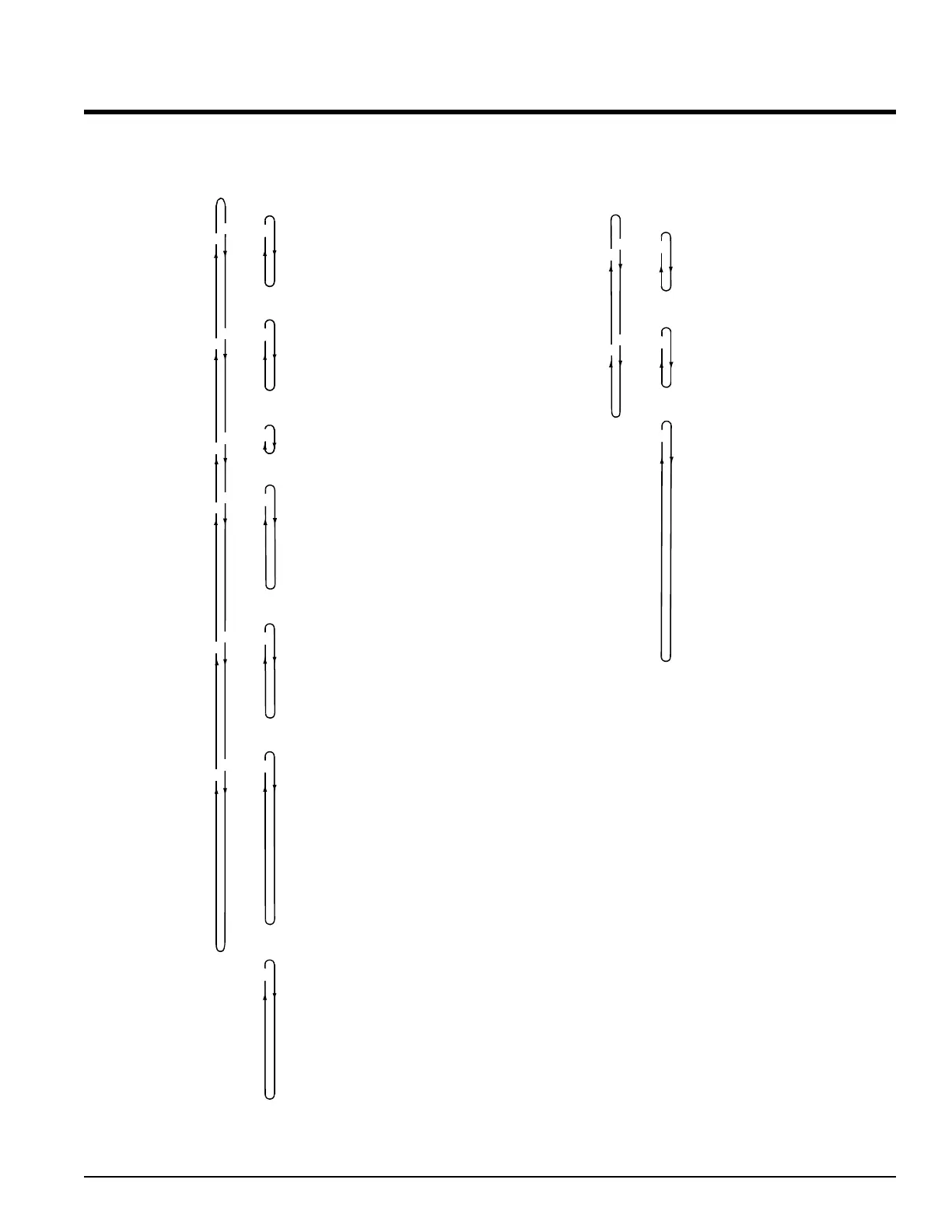

SOFTWARE MAP (CONTINUED)
ALPHA OMEGA INSTRUMENTS CORP. Instruction Manual
Series 800/850 Thermoelectric Cooler Controller Page 69
[InP1]
Input 1 Menu
[`SEt]
Setup Page
[`SEt]
Setup Page
[SEn1]
Sensor Type
[In`1]
Input Type 1
[rL`1]
Range Low 1
[rh`1]
Range High 1
[dEC1]
Decimal 1
[Ftr1]
Input Software Filter 1
[`SEt]
Setup Page
[In`2]
Input 2
[rL`2]
Range Low 2
[rh`2]
Range High 2
[CAL2]
Calibration Offset 2
[E`Fn]
Event Function
[E`cn]
Event Condition
[`SEt]
Setup Page
[Ot`1]
Output 1
[Prc1]
Process Type 1
[`SEt]
Setup Page
[Ot`2]
Output 2
[Prc2]
Process Type 2
[AtY2]
Alarm Type 2
[AhY2]
Alarm Hysteresis 2
[LAt2]
Latching 2
[SIL2]
Silencing 2
[Sid2]
Alarm Active Sides 2
[Lgc2]
Alarm Logic 2
[Anu2]
Alarm Annunciation 2
[`SEt]
Setup Page
[Ot`3]
Output 3
[AtY3]
Alarm Type 3
[Ahy3]
Alarm Hysteresis 3
[LAt3]
Latching 3
[SIL3]
Silencing 3
[Sid3]
Alarm Active Sides 3
[Lgc3]
Alarm Logic 3
[Anu3]
Alarm Annunciation 3
[`SEt]
Setup Page
[Ot`4]
Output 4
[AtY4]
Alarm Type 4
[Ahy4]
Alarm Hysteresis 4
[LAt4]
Latching 4
[SIL4]
Silencing 4
[Sid4]
Alarm Active Sides 4
[Lgc4]
Alarm Logic 4
[Anu4]
Alarm Annunciation 4
[Aout]
Analog Output 4
[Prc4]
Process Type 4
[A`hi]
Analog Output High
[A`Lo]
Analog Output Low
[ACAL]
Analog Output Offset
[BaUd]
Baud Rate
[Addr]
Address
[`SEt]
Setup Page
[Unit]
Units Type
[`C-F]
C or F
[`Err]
Input Error Latching
[FAIL]
Failure Mode
[MAn]
Manual Default Power
[PLSP]
Power Limit Set Point
[PL`A]
High Power Limit Above
[PL`b]
High Power Limit Below
[``rP]
Ramping Mode
[rP`S]
Ramp Scale
[ratE]
Ramp Rate
[OPLP]
Open Loop Detect
‰
‰
‰
‰
‰
‰
¿
¿
¿
¿
¿
¿
[InP2]
Input 2 Menu
[`SEt]
[Out1]
Output 1 Menu
[`SEt]
[Out2]
Output 2 Menu
[`SEt]
[Out3]
Output 3 Menu
[`SEt]
[Out4]
Output 4 Menu
[`SEt]
‰
[GLbL]
Global Menu
[`SEt]
¯
¯
¯
¯
¯
¯
[CUSt]
Custom Menu
[FctY]
Factory Page
‰
‰
‰
[Fcty]
Factory Page
[``P1]
•
•
•
[`P16]
[Fcty]
Factory Page
[``SP]
Set Point Lock
[CUSt]
Custom Menu Lock
[OPEr]
Operations Page Lock
[`SEt]
Setup Page Lock
[`CAL]
Calibration Menu Lock
[Fcty]
Factory Page
[MdL]
Model Number
[dAtE]
Date of Manufacture
[`Sn1]
Serial Number 1
[`Sn2]
Serial Number 2
[Soft]
Software ID Number
[`rEu]
Software Revision
[Ity2]
Input 2 Hardware Enabled
[OTY1]
Output 1 Hardware
[Oty2]
Output 2 Hardware
[Oty3]
Output 3 Hardware
[Oty4]
Output 4 Hardware
[tout]
Test Output
[dISP]
Test Displays
[hrES]
High Resolution
[AMb]
Ambient Temperature
[Acnt]
Ambient A-D Counts
[cnt1]
Channel 1 A-D Counts
[cnt2]
Channel 2 A-D Counts
[tSHt]
Troubleshooting/
Communication Test
[LinE]
Line Frequency
¿
¿
[`LOC]
Lockout Menu
[FctY]
[dIAg]
Diagnostics Menu
[FctY]
¯
¯
*
*The Factory Page also includes calibration parameters that
are not necessary for everyday use of the controller.
Calibration parameters and procedures are explained in the
Appendix.
Note: What you see depends on the options and settings included in your controller.
