3 Features
3.1 CXC HP Controller

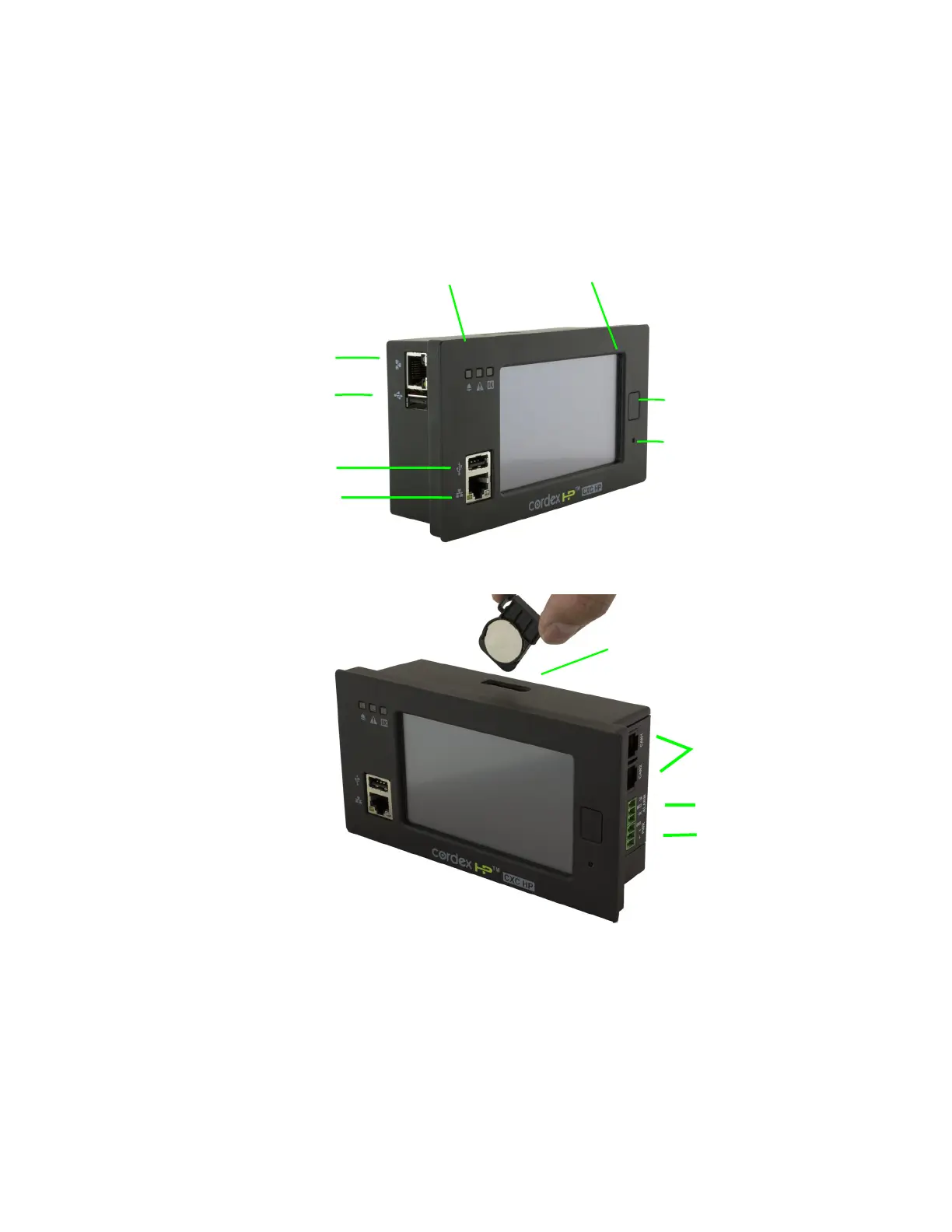

Figure 5: CXC HP Controller (Left Front View)
Figure 6: CXC HP Controller (Right/Top View )
The CXC HP has the following features:
• Front touchscreen: full color LCD display, to access controls and menu items by using fingertip
touch or a stylus.
• Home button: provides the ability to go directly back to the home screen from any menu.
• Front panel reset: for emergency use only to restart the CXC HP if the unit touch screen or home
button are not responding.
%THERNET
REAR
53"REAR
53"FRONT
%THERNETFRONT
3TATUS,%$S ,#$SCREEN
(OME
2ESET
2EMOVABLE24#
,ITHIUM"ATTERY
&AIL&AIL!LARM2ELAY
0OWER)NPUT
$UAL#!.0ORTS
