Alpha Technologies Cordex CXC HP User Manual

0180036-J0 Rev E Page 8
• Front panel LEDs: for alarms, progress and status indication.Audio speaker: built-in audio tones
during active alarms, and can be disabled if required.
• Ethernet: dual ports 10/100 Base T Ethernet connection on both the front and rear of the controller
for remote or local communication.
• USB: dual ports on both the front and rear of the controller for upgrades and file management via
a standard USB flash drive.
• CAN: dual independent CAN bus ports for communication with the Alpha Cordex™ and AMPS
family of products, which allows for a greater number of devices.
• Real-time clock with field replaceable lithium battery: allows for timestamps on alarms and
events.
• System fail alarm/relay: this activates when there is a major internal failure. During such a condi-
tion the unit attempts to reset.

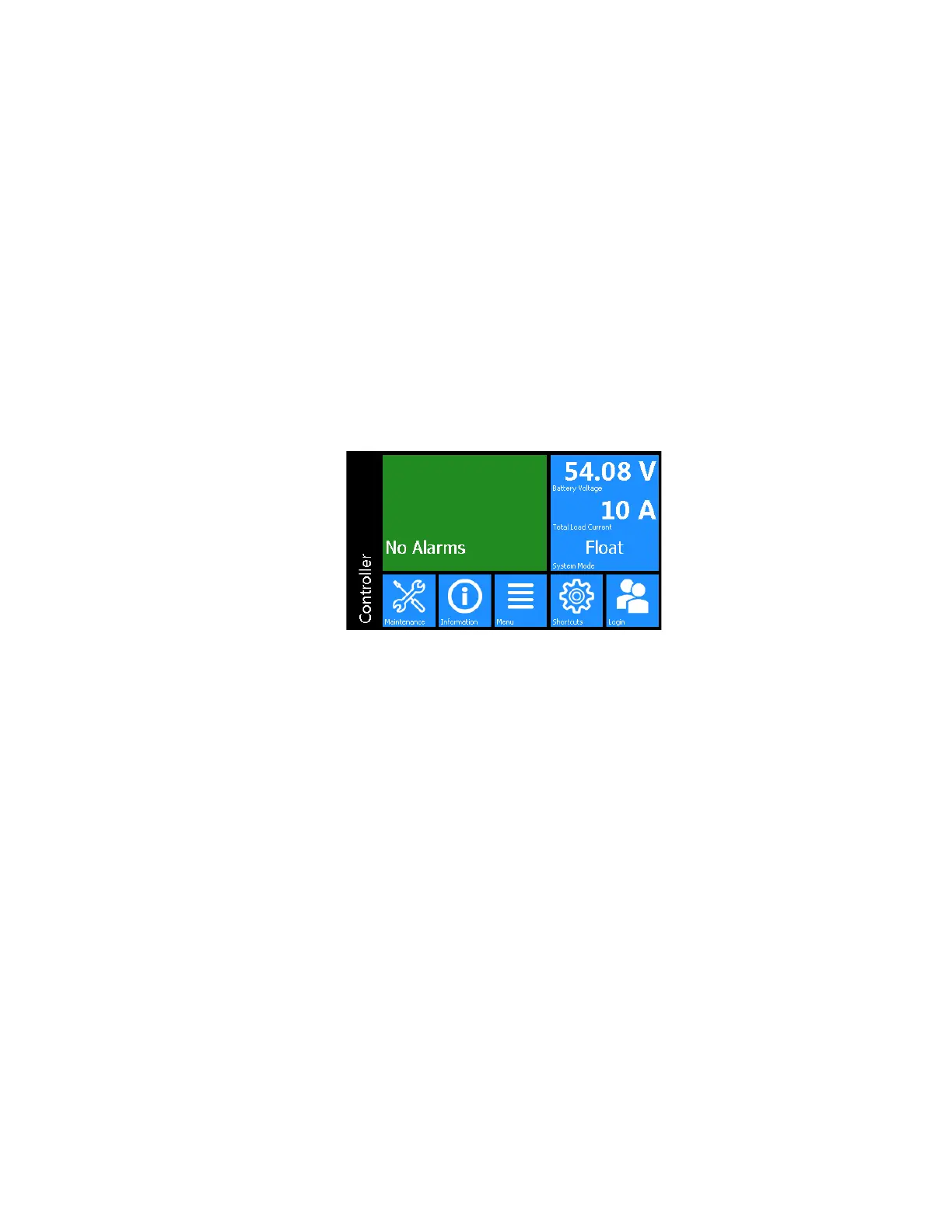

Figure 7: CXC HP Controller LCD
!CTIVE!LARMS
COLORCODED
ALARMSBASED
ONSEVERITY
3YSTEM3TATUS
BATTERYVOLTAGE
LOADCURRENT
SYSTEMMODE
-AINTENANCE
ACCESSTO
ALARMCUTOFF
SETTINGS
-ENU
ACCESSALL
CONTROLLER
MENUS
,OGIN
OR
,OGOUT
3HORTCUTS
ACCESSTO
MOSTOFTEN
USEDAREAS
)NFORMATION
ACCESSTO
SERIALNUMBER
SOFTWAREAND
/3VERSION

Alpha Technologies Cordex CXC HP Specifications

General

Brand	Alpha Technologies
Model	Cordex CXC HP
Category	Controller
Language	English
