0180036-J0 Rev E Page 10
4.1.4 LEDs
Each L-ADIO contains three LEDs for peripheral status indication.
4.1.5 Front Panel Reset
A reset button is located on the front panel for restarting the L-ADIO microprocessor. It takes approxi-
mately 15 seconds before the unit is reacquired after pressing the reset button.
During a reset condition, the L-ADIO will keep relays in their last known state to prevent false alarm noti-
fications and possible changing system LVD states. CAUTION: Pressing the reset button will cause the
L-ADIO to lose communication with the controller.
4.1.6 LVD Override
An LVD override button is located on the L-ADIO. This is for a future feature which is not currently imple-
mented.
4.2 6I-ADIO
The 6I-ADIO is an analog input peripheral providing six isolated shunt inputs. The 6I-ADIO communi-
cates on CAN bus to the controller and provides access to shunt inputs via the CXC HP controller.

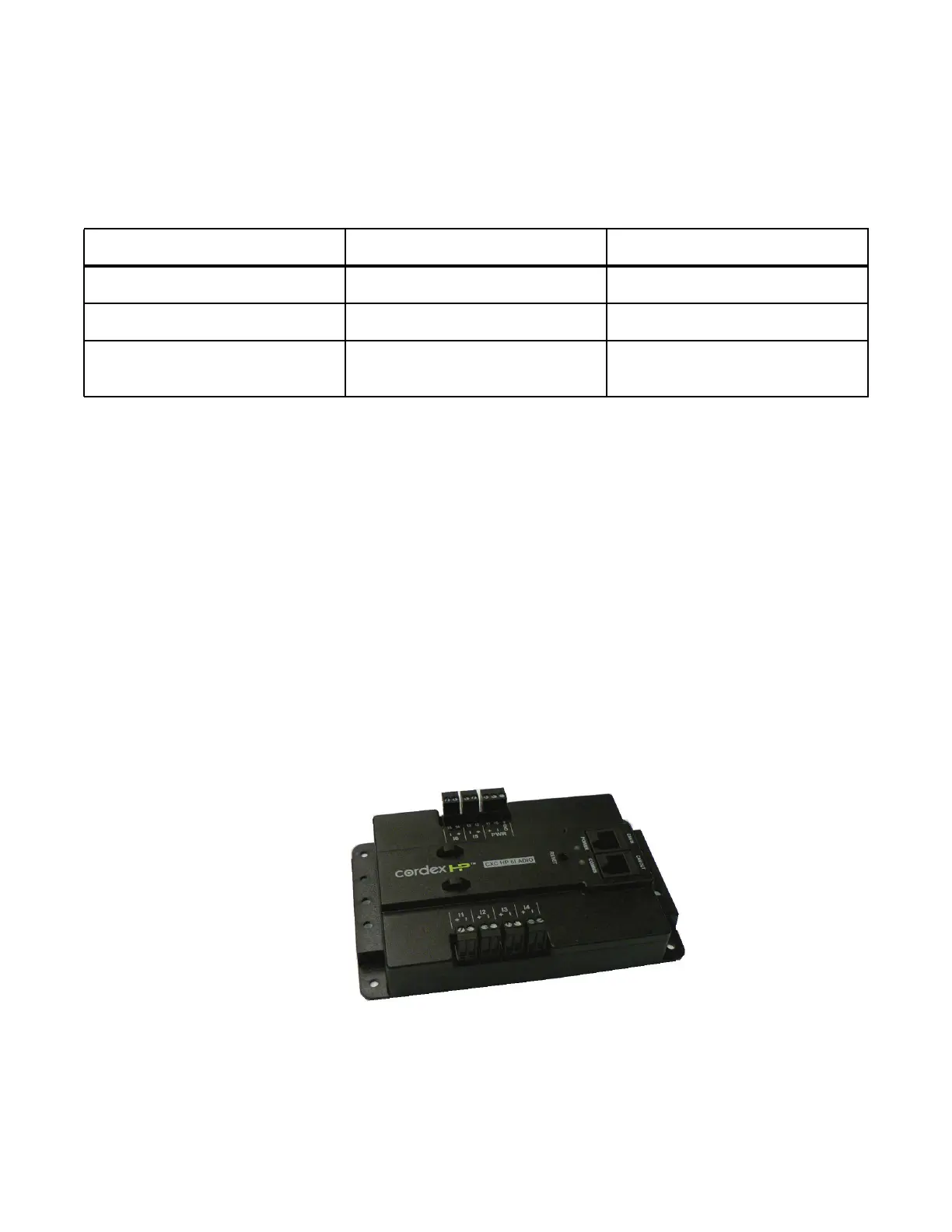

Figure 9: 6I-ADIO Power Module
LED Color Status Indicator
LVD Yellow LVD override engaged
Power Blue Power present to the device
Comms Green L-ADIO has been acquired by the
CXC HP
