0180036-J0 Rev E Page 38
CAUTION: There are no user serviceable parts inside the CXC HP controller or L-ADIO; the battery is
removable without tools for replacement. Opening the case will void warranty and could damage sensi-
tive electronics inside.
10.2 Replacing the Lithium Battery
A removable CR2032 lithium battery is located at the top of the CXC HP controller it is designed to be
field replaceable and can be easily removed with no tools. The battery life is rated up to three years, but
should be replaced if the panel does not maintain date and time during power interruption. It is also
recommended to replace when the lithium battery voltage is less than 2.6Vdc
WARNING: Exercise extreme caution and do not touch any connected equipment.
To replace the lithium battery:
1. Depress the two front panel latches towards the center of the panel.
2. Tilt the front panel forward and down.
3. Pull battery out carefully.
4. Ensure that the new battery is the same as the one being replaced.
5. Slide the new battery into place. Be careful to insert the new battery in the correct polarity (not
upside-down; there is a plus (+) sign marked on the battery holder).
AFTER COMPLETING THIS TASK:
If the controller is powered off when the battery is replaced, time will be lost. Once the controller is
powered on, reset the time.

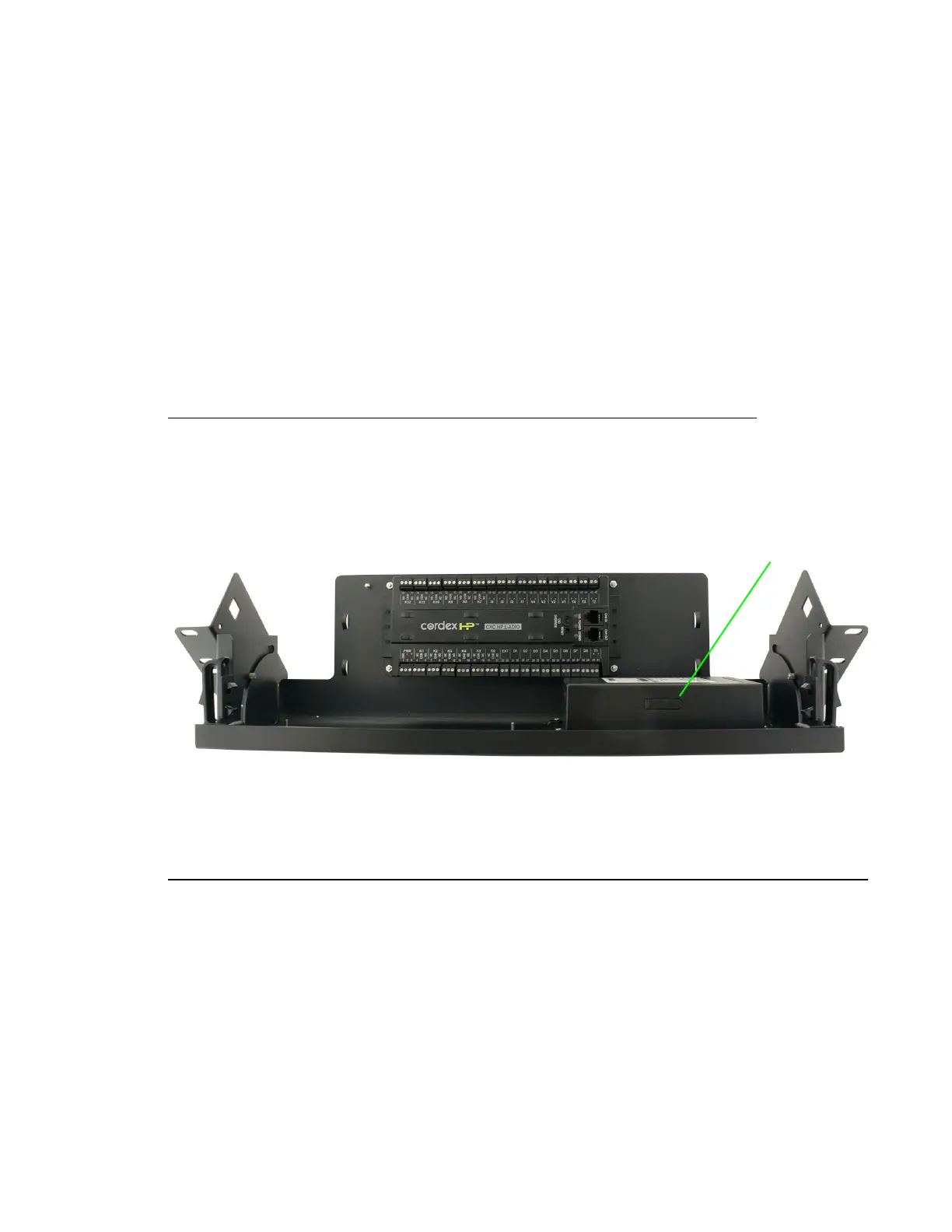

Remove the battery
from the slot.
