Part names and functions
25
En

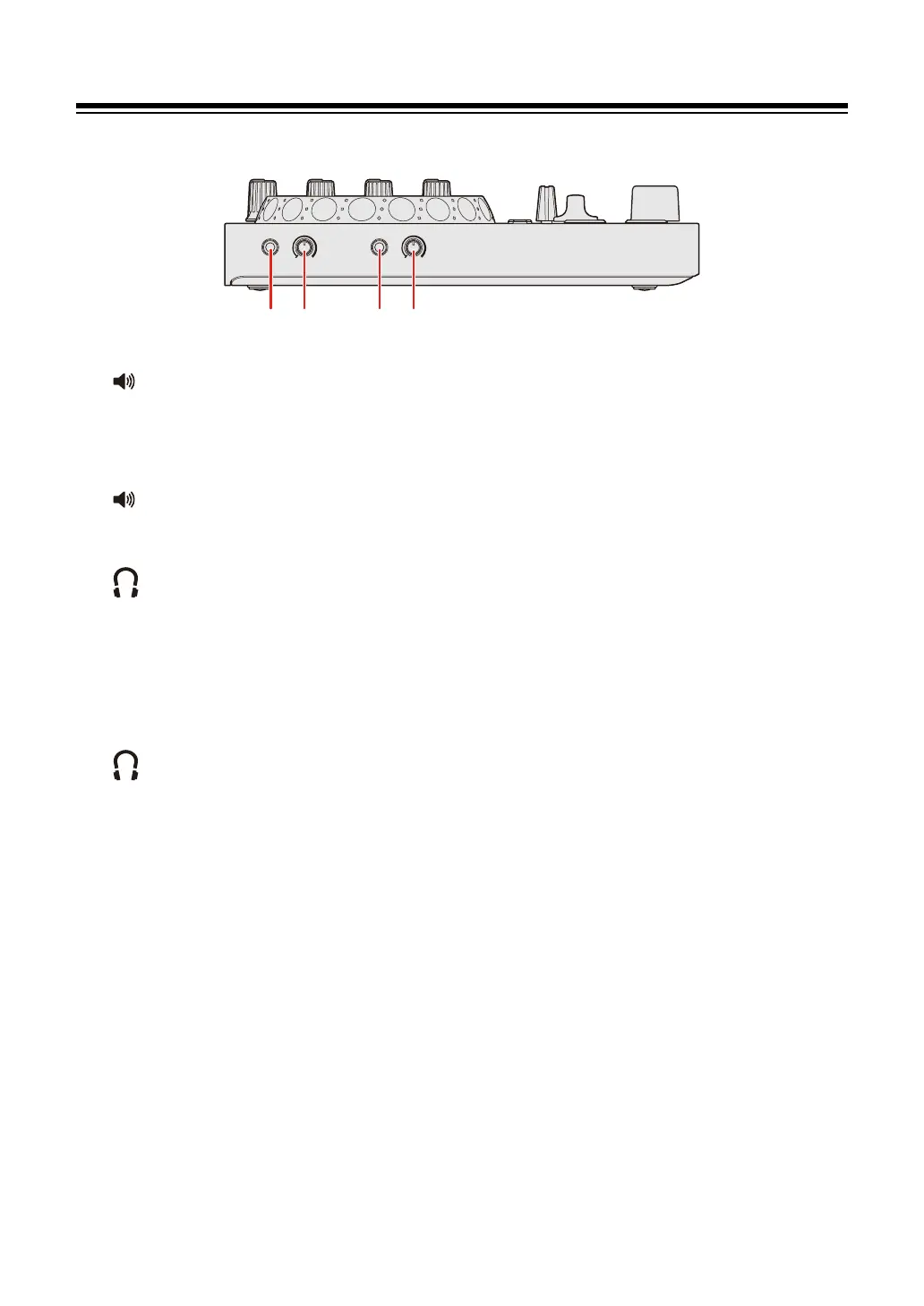

Side panel
1 (master) output terminal
Connection for a powered speaker, a power amplifier, etc.
• Stereo mini phone plugs (ø 3.5 mm) can be used with the unit.
2 (master level) knob
Adjusts the volume of the master output.
3 (headphones) output terminal
Connection for your headphones.
Stereo mini phone plugs (ø 3.5 mm) can be used with the unit.
• Only use headphones with 32 Ω or more impedance. Headphones with
impedance lower than 32 Ω won’t work with the unit.
4 (headphones level) knob
Adjusts the volume of the headphones output.
