45-EN

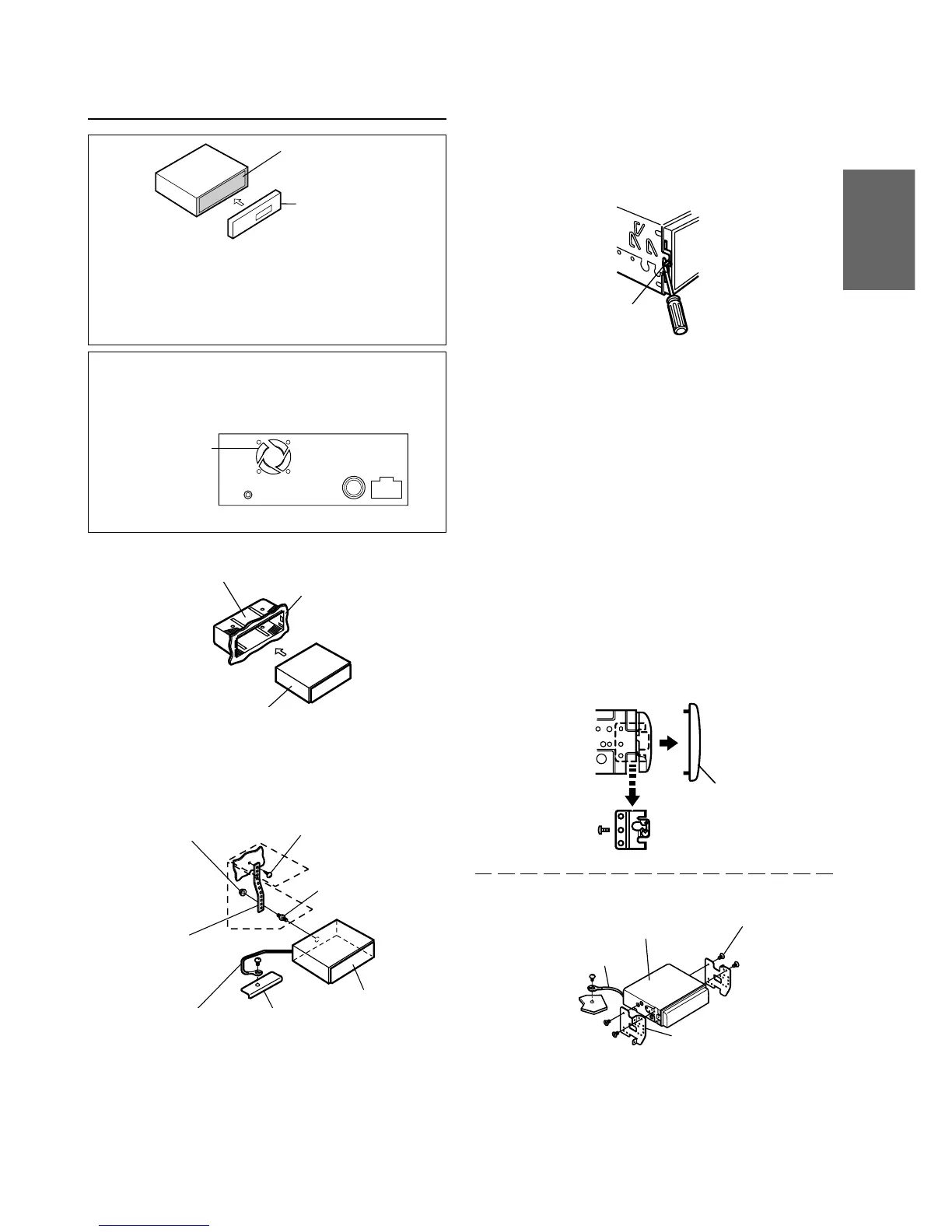

Installation
Caution
When you install this unit in your car, do not remove
the Detachable Front Panel.
If the Detachable Front Panel is removed during
installation, you might press too hard and warp the
metal plate that holds it in place.
Caution
Do not block the unit’s fan or heat sink, thus
preventing air circulation. If blocked, heat will
accumulate inside the unit and may cause a fire.
1
Slide mounting sleeve from main unit (See "Removal"
on this page.)
Slide mounting sleeve into the dashboard.
2
Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (
∗
) already
attached to the vehicle's chassis.
NOTE
For the screw marked
**
, use an appropriate screw for
the chosen mounting location.
Metal plate
Detachable
Front panel
Mounting Sleeve
(Included)
Dashboard
CDA-7878
Metal
Mounting
Strap
Chassis
Hex Nut (M5)
Bolt Stud
Ground Lead
∗∗
∗
CDA-7878
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming
from the left rear of the CDA-7878. Connect all other
leads of the CDA-7878 according to details
described in the CONNECTlONS section.
Slide the CDA-7878 into the dashboard. When the
unit is in place, make sure the locking pins are fully
seated in the down position. This can be done by
pressing firmly in on the unit while pushing the
locking pin down with a small screwdriver. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard. Install the
Detachable Front Panel.
Removal
1 Remove the DETACHABLE FRONT PANEL.
2 Use a small screwdriver (or similar tool) to push
the locking pins to the “up” position (see above
drawing). As each pin is unlocked, gently pull out
on the unit to make sure it does not re-lock before
unlocking the second pin.
3 Pull the unit out, keeping it unlocked as you do
so.
<JAPANESE CAR>
Face Plate
NOTE
Secure the ground lead of the unit to a clean metal spot
using a screw (
∗
) already attached to the vehicle's
chassis.
3
Lock Pin
Screw
Mounting Bracket
Ground Lead
Screws (M5 × 8)
(Included)
CDA-7878
∗
Air ventilation
hole
<Rear side>
