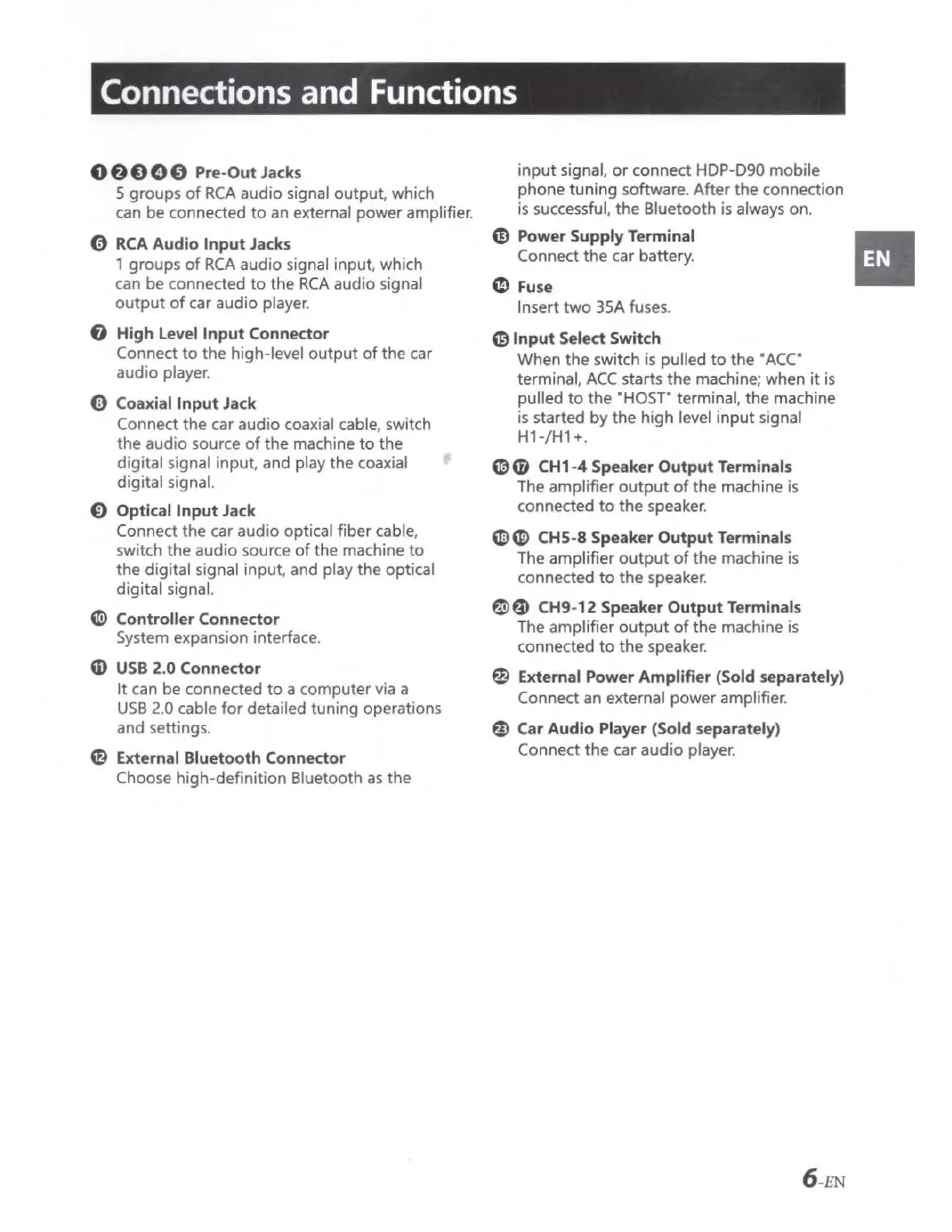

Connections and Functions
0
f)
€)
()
0
Pre-Out
Jacks
5 groups
of
RCA
audio signal
output
, which
can be connected
to
an external power amplifier.
0
RCA
Audio
Input
Jacks
1 groups
of
RCA
audio signal
input
, which
can be connected
to
the
RCA
audio signal
output
of
car audio player.
f)
High
Level
Input
Connector
Connect
to
the
high-level
output
of
the car
audio player.
0 Coaxial
Input
Jack
Connect the car audio coaxial cable, switch
the
audio source
of
the machine
to
the
digital signal input, and play the coaxial f
digital signal.
0 Optical
Input
Jack
Connect the car audio optical fiber cable,
switch the audio source
of
the
machine
to
the
digital signal input, and play the optical
digital signal.
~
Controller Connector
System expansion interface.
G, USB
2.0
Connector
It
can be connected
to
a computer via a
USB
2.0 cable
for
detailed tuning operations
and settings.
G External Bluetooth Connector
Choose high-definition Bluetooth
as
the
input
signal,
or
connect HDP-D90 mobile
phone tuning software.
After
the
connection
is
successful,
the
Bluetooth is always on.
G)
Power Supply Terminal
II
Connect
the
car battery.
CD
Fuse
Insert
two
35A fuses.
(0
Input
Select Switch
When
the
switch
is
pulled
to
the •
ACC
terminal,
ACC
starts
the
machine; when
it
is
pulled
to
the
"HOST" terminal, the machine
is
started
by
the
high level input signal
H1-/H1 +.
m G CH
1-4
Speaker
Output
Terminals
The amplifier
output
of
the machine
is
connected
to
the speaker.
~~
CHS-8 Speaker
Output
Terminals
The amplifi
er
output
of
the
machine is
connected
to
the
speaker.
Qi~
CH9-12
Speaker
Output
Terminals
The amplifier
output
of
the machine is
connected
to
the
speaker.
fl) External Power Amplifier (Sold separately)
Connect an external power amplifier.
@)
Car Audio Player {Sold separately)
Connect
the
car audio player.
6-
EN
