Maintenance
Electrical contact densimeter threshold in sp ectio n
L51--107EN/01
2/8
06--2003
E ALSTOM

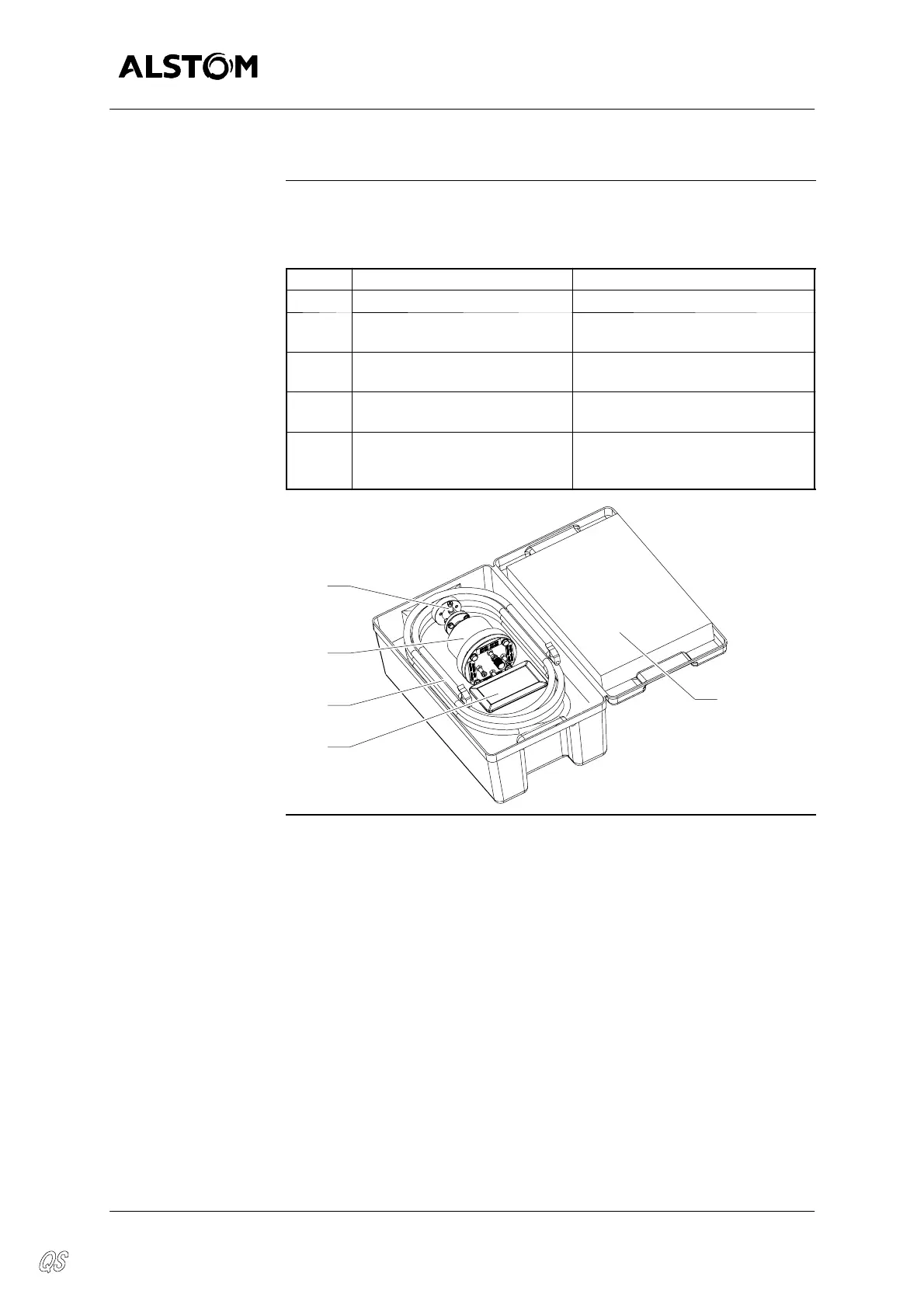

Contents of the d ensimeter threshold inspection case
Parts table
The table below describes the parts of the densimeter threshold inspection
case :
Mark Component Information
(3) Case Put the tool
(4) Threshold inspection tank
Connection : densimeter -- stan-
dard gauge -- SF
6
gas bottle.
(5) Connection valve block
Supports the densimeter during
the threshold inspection.
(6) Linking pipe
Connection : connection valve
block -- threshold inspection tank.
(7) Setofseals
Seals used for the connection
valve block and replacing the
densimeters of the three poles.
5
3
4
6
7
