Manual operations
FK 3-1 / FK 3-06 motor-wound spring
operating mechanism
21.5.2003
© ALSTOM
48.020.181E/2
9/26
Preparation of operating mechanism for manual operations
If Action
Horizontal rear panel mounting
• Remove side panels 78.01
• Remove side panel lock nuts 78.20
• Swing side panel 78.01 outward and
pull down
Prepare cabinet
Vertical rear panel mounting
• Unscrew roof mounting screws 78.18
and lift off roof 78.02

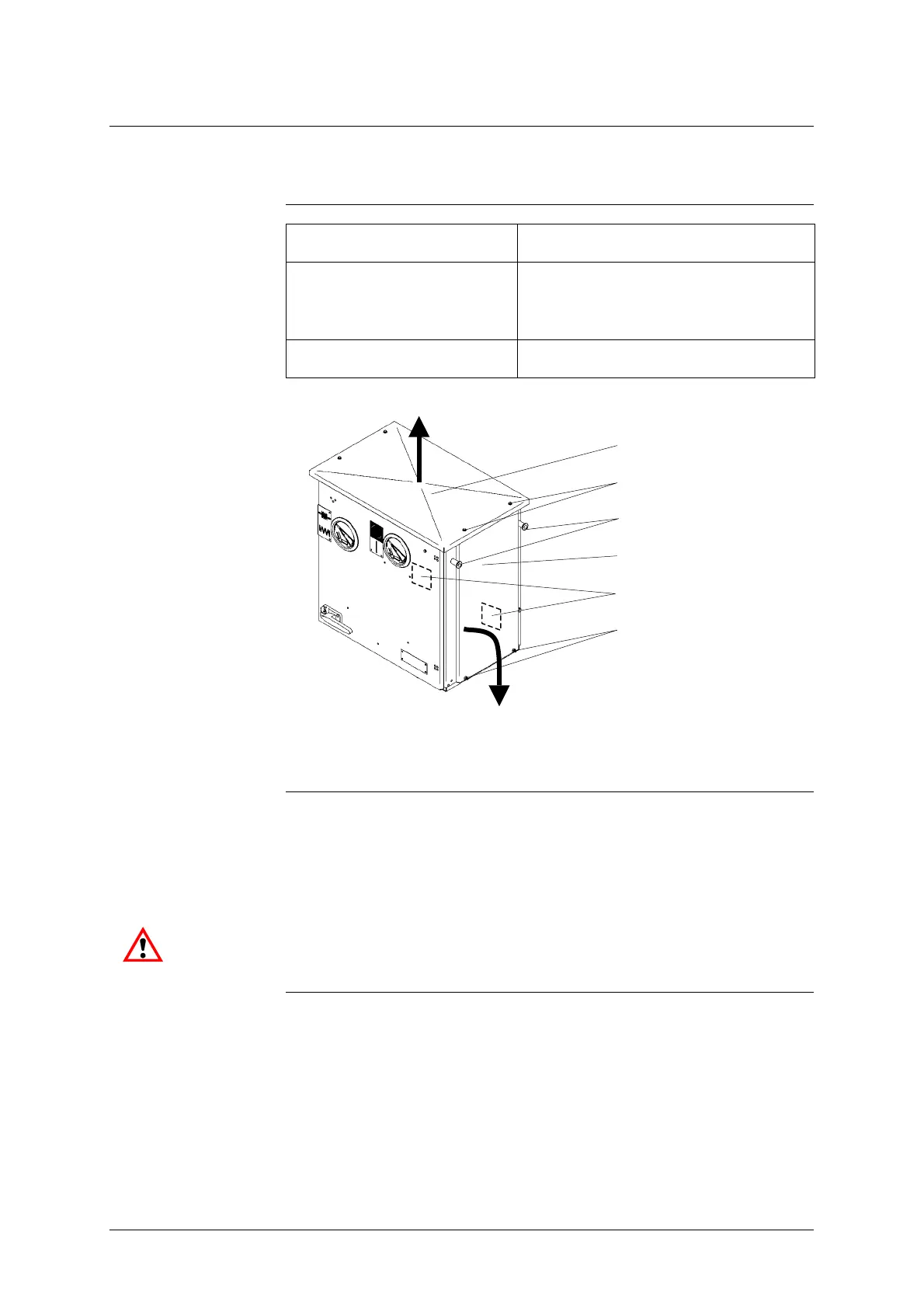

Horizontal mounting shown
78.01 Side panel 78.18 Roof mounting screws
78.02 Roof 78.19 Cover panel
78.07 Lifting lugs 78.20 Side panel lock nuts
Disable manual re-
leases
• The manual releases can be inadvertently actuated when performing
manipulations on the spring operating mechanism.
• Injury may result from performing manipulations on the spring operating
mechanism without disabling the manual releases.
WARNING
• Disable the manual releases to prevent inadvertent manual ac-
tuation of the spring operating mechanism.
78.02
78.18
78.07
78.01
78.19
78.20
