Alstom GL314 - Pole Operation (Interrupting Principle)

Description and operation
Pole operation
(Interrupting principle)
L13--003EN/02
1/6
08--2000
E ALSTOM
Presentatio n
Introduction

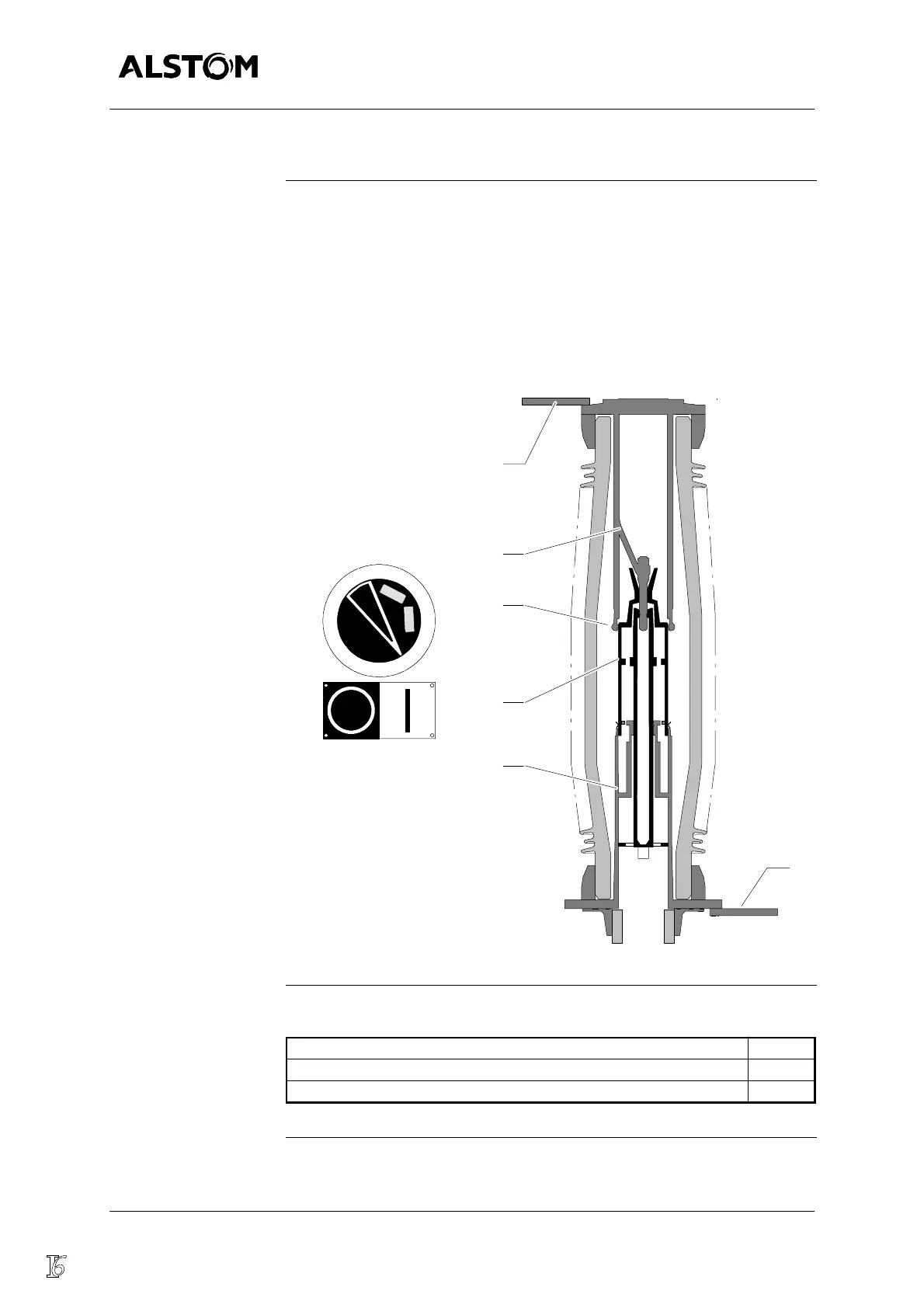

In “CLOSED” position the current passes through :
-- the terminal (1),
-- the fixed contact support (2),
-- the main contacts (3),
-- the moving contact (4),
-- the moving contact support (5),
-- the opposite terminal (1).
2
3
4
5
1
1
In this module
This module contains the stages of the pole operation :
Stage Page
Opening 2
Closing 5
