Resumption of service

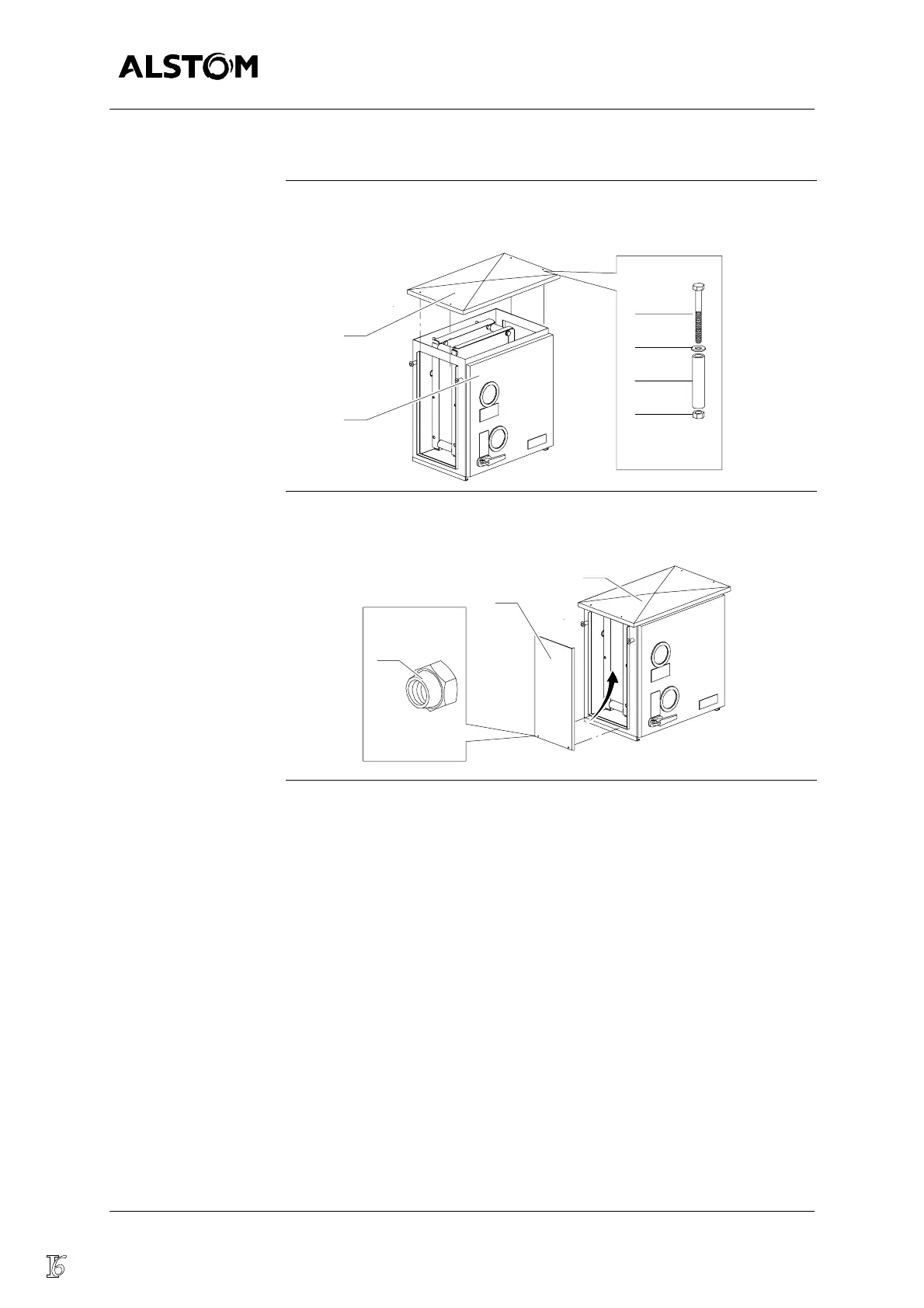

Installing the roof
Install the roof plate (4) of the operating device (1) using the screws (5), was-
hers (6), spacers (7) and nuts (8).
4
5
6
7
8
x4
HM6--60
0,7 daN.m
1
Installing the side
panels
Insert the side panel (3) under the edge of the roof plate (4). Press it down to
insert the mounting screws and fasten using new nuts (2).
x2
NYLSTOP
M8
2
3
4
