Alstom GL314 - Removing Side Panels

Maintenance
Intervention on the operating device
L51--302EN/01
4/10
10--1999
E ALSTOM
Prep aring the operating device
Introduction
In order to perform certain maintenance operations inside the operating de-
vice it is necessary to remove some cabinet parts.

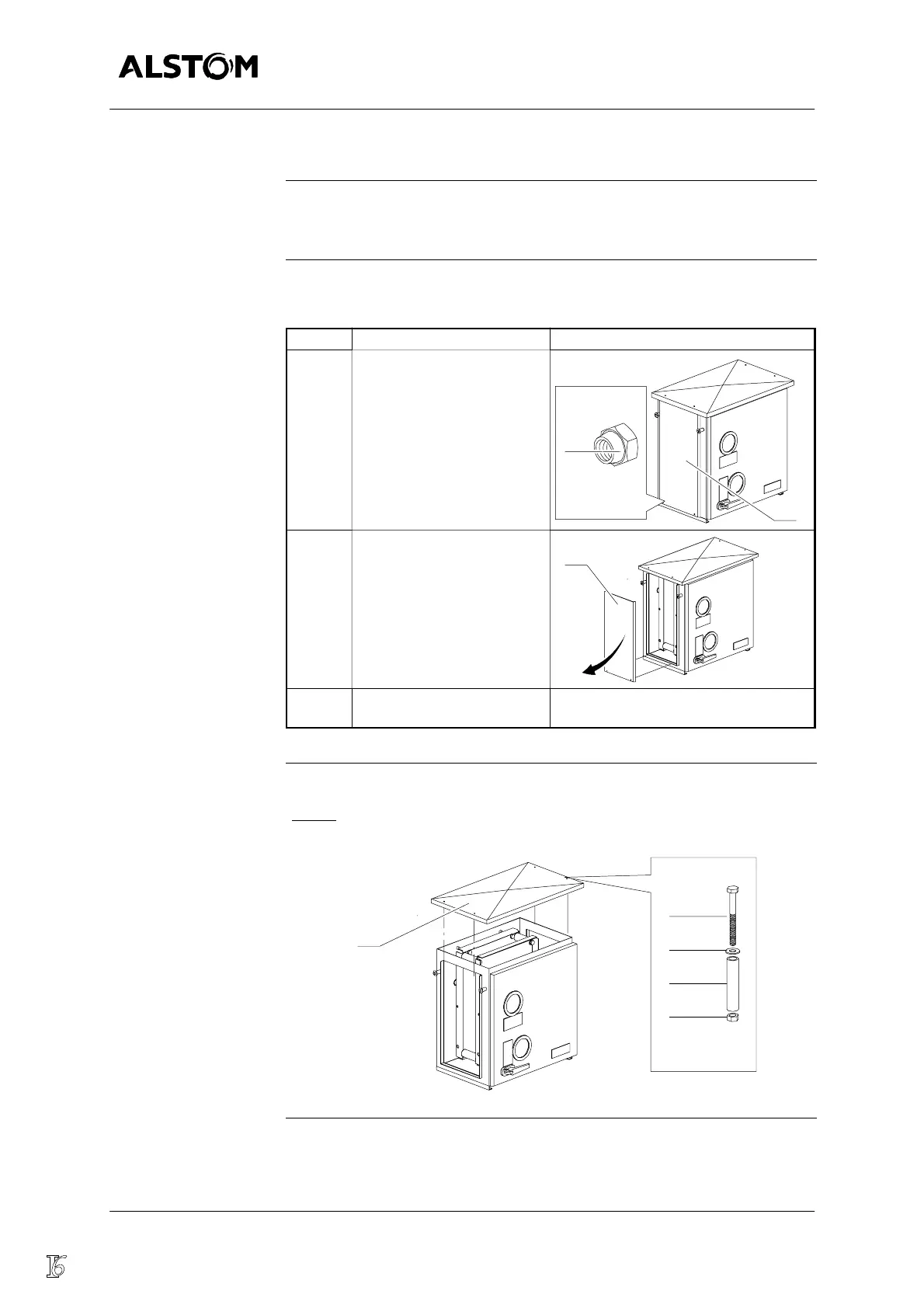

Removing
side panels
The table below gives the steps of side panels removing :
Step Action Diagram
1 Remove the nuts (2) from
the left side panel (3).
x2
NYLSTOP
M8
2
3
2 Take hold of the left side
panel (3) from underneath,
pull slightly towards the out-
side, then downwards to re-
move it.
3
3 Proceed in the same way
for the right side panel.
Removing the
roof plate
Take the roof plate (4) from the operating device by removing the nuts (8).
NOTE
: The spacers (7), washers (6) and screws (5) stay on the roof
plate.
5
6
7
8
x4
HM6--60
0,7 daN.m
4
