Manual operations
FK 3-1 / FK 3-06 motor-wound spring
operating mechanism
21.5.2003
© ALSTOM
48.020.181E/2
12/26

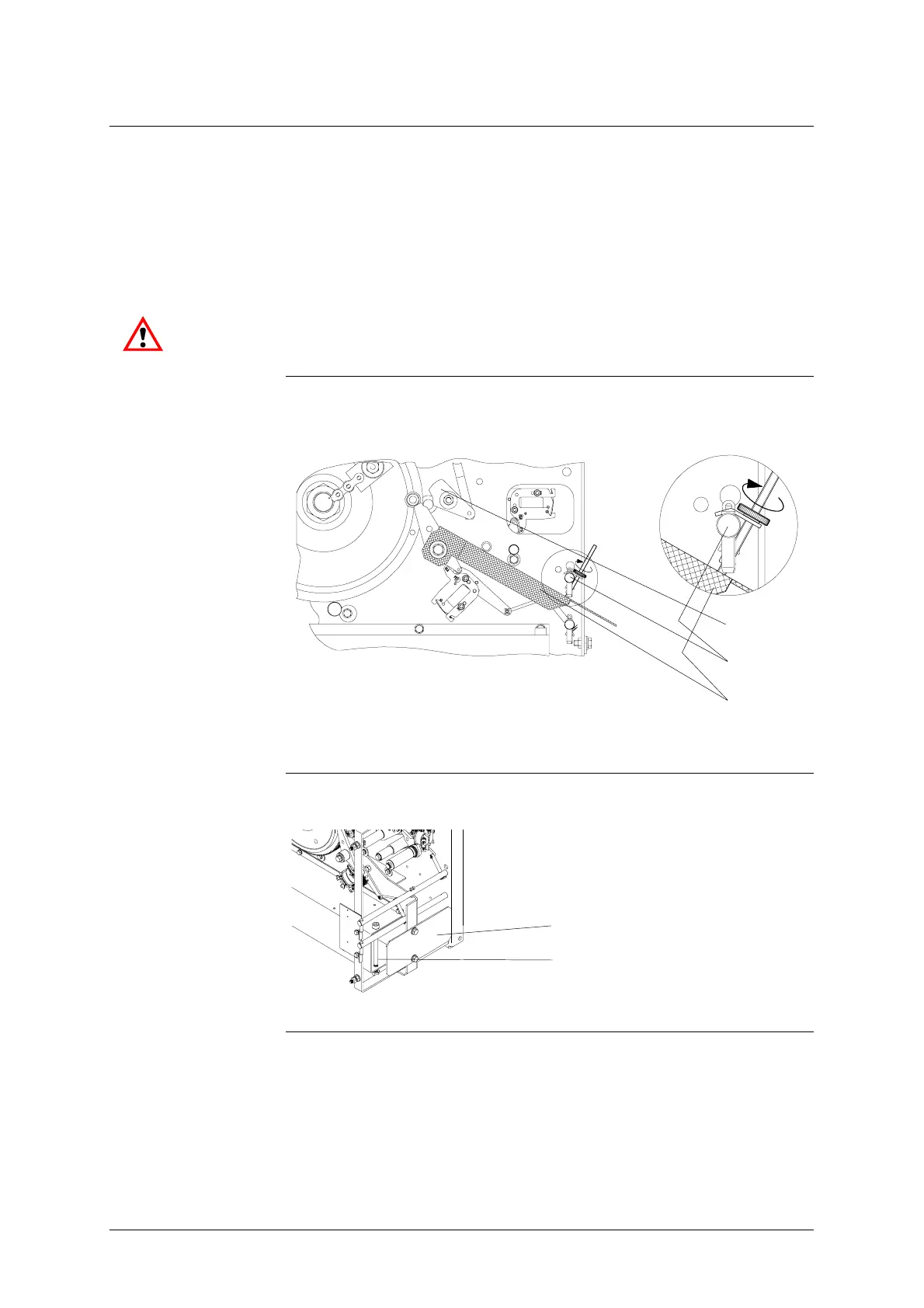

Disable closing latch
if closing spring is
charged
• The closing latch can be inadvertently actuated when performing ma-
nipulations on the spring operating mechanism.
• Injury may result from performing manipulations on the spring operating
mechanism with the closing spring charged and the closing latch not
disabled.
WARNING
• Disable the closing latch in order to prevent inadvertent manual
actuation of the spring operating mechanism.
• Insert disabling device 70.71 of closing latch 70.05 and fix to the axle of
manual TRIP release 70.13.
70.05 Closing latch
70.13 Manual TRIP release
70.71 Closing latch disabling
device
Remove safety plate
• Remove safety plate 70.48.
70.48 Safety plate 70.96 Securing screw
70.05
70.13
70.71
70.48
70.96
