Manual operations
FK 3-1 / FK 3-06 motor-wound spring
operating mechanism
21.5.2003
© ALSTOM
48.020.181E/2
26/26
Final actions on cabi-
net
• Reinstall side panels 78.01 and roof 78.02.

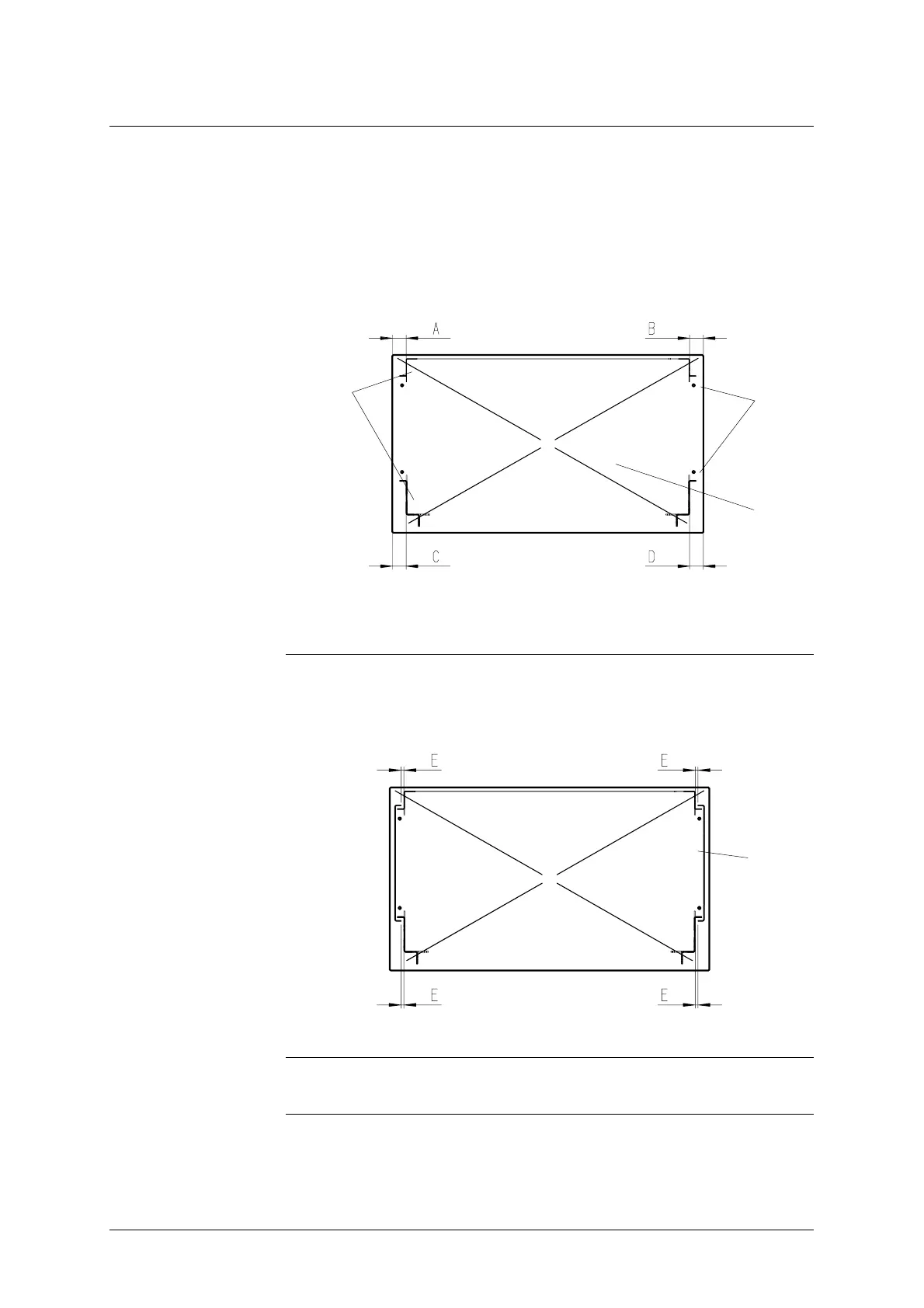

• Lay roof on cabinet and align so that dimensions A, B, C, D are within a
tolerance of ±1 mm. The cabinet may have to be straightened in order
to attain the specified tolerance.
• Tighten roof mounting screws. After tightening, check dimensions A, B,
C, D; correct if necessary.
78.02 Roof 78.03 Frame
78.18 Roof mounting screws
• Install side panels 78.01.
For proper sealing of side panels against cabinet rims, dimension E (side
panel to cabinet clearance) must be no greater than 5 mm.
78.01 Side panel
Restore to service
• Connect control voltage.
78.18
78.02
78.03
78.01
