Description and operation
Pole operation
(Interrupting principle)
L13--003EN/02
5/6
08--2000
E ALSTOM
Closing
Description

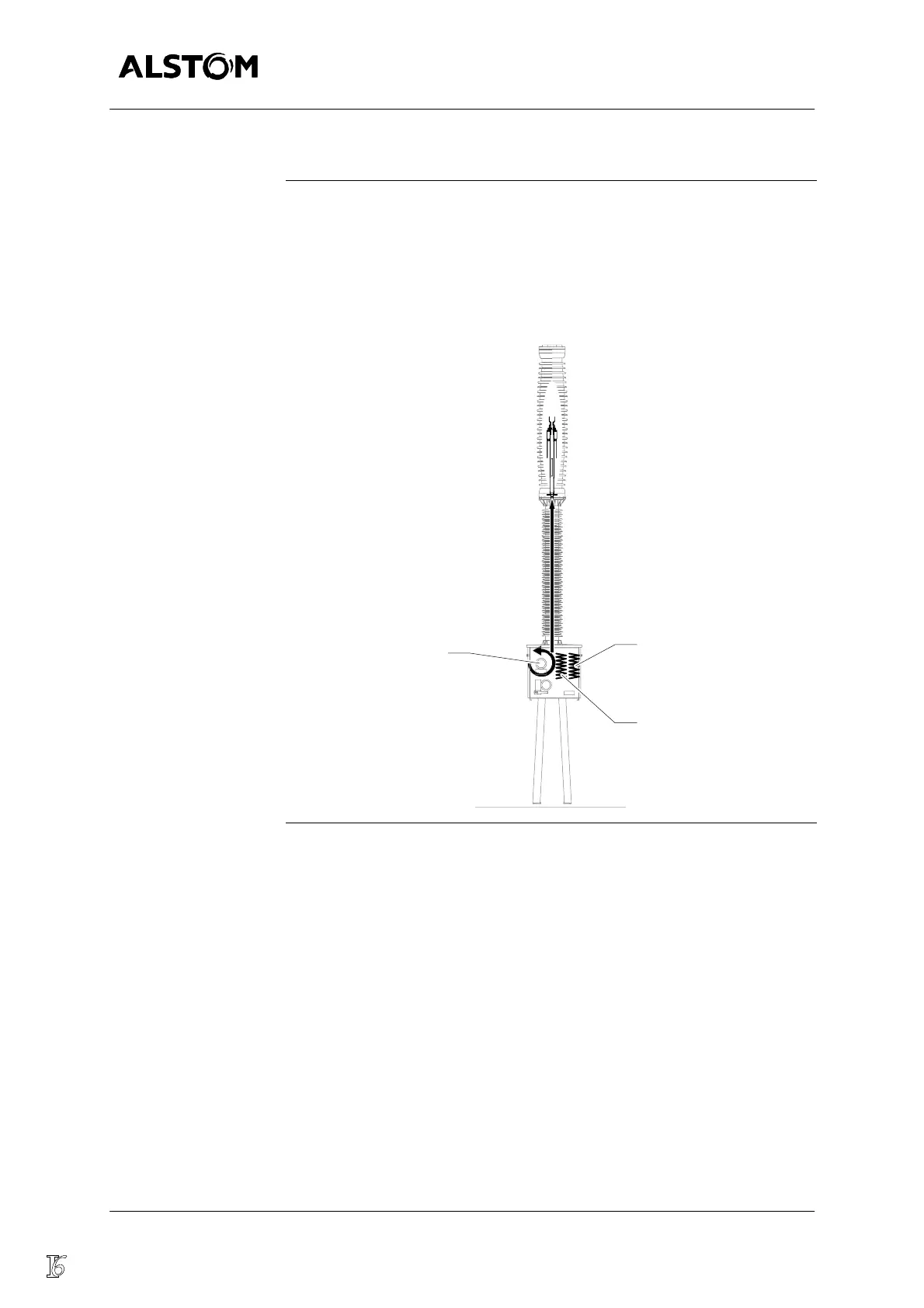

When an electrical or manual closing order is given, the energy accumulated
in the closing spring (15) -- situated inside the operating device -- is released.
This energy is transmitted directly to the pole operating shaft (16), to ensure
closing.
The release of the energy stored up in the closing spring (15) causes displace-
ment of the moving parts -- and so the closing of the interrupting chamber --
and also reloads the opening spring (7).
16
15
7
