Installation
Checking fo r p resence of
stop ring of the “fusible” pin
L31--090EN/01
3/4
03--2004
E ALSTOM

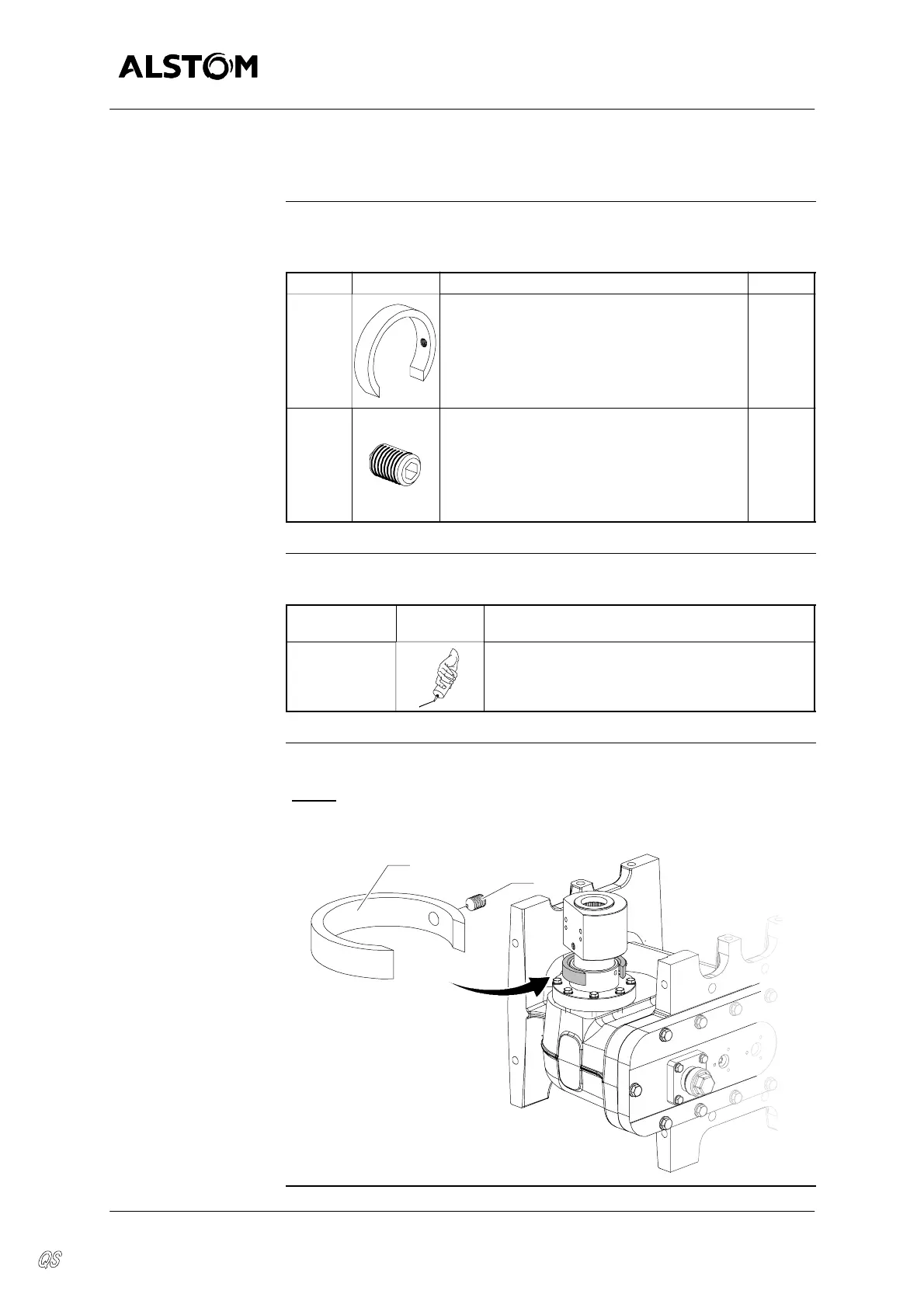

Installing the stop ring “site” of the “fu sib le” pin
(in case of absen ce of the stop ring)
Necessary
components
List of the ALSTOM components necessary for the assembling :
Mark Diagram Designation Number
(5) Stop ring “site” 1
(4) Screw 1
Necessary products
List of the ALSTOM products necessary for the installing :
ALSTOM
reference
Diagram Designation
--01818327 LOCTITE 225 (250ml)
Installing
Install the stop ring “site” (5) and hold in place using the screw (4).
NOTE
: Stick the screw (4) using LOCTITE 225 and apply a tightening
torque of 17 N.m.
