Installation
Lifting and positionning the pole
L31--201EN/02
3/4
07--2003
E ALSTOM

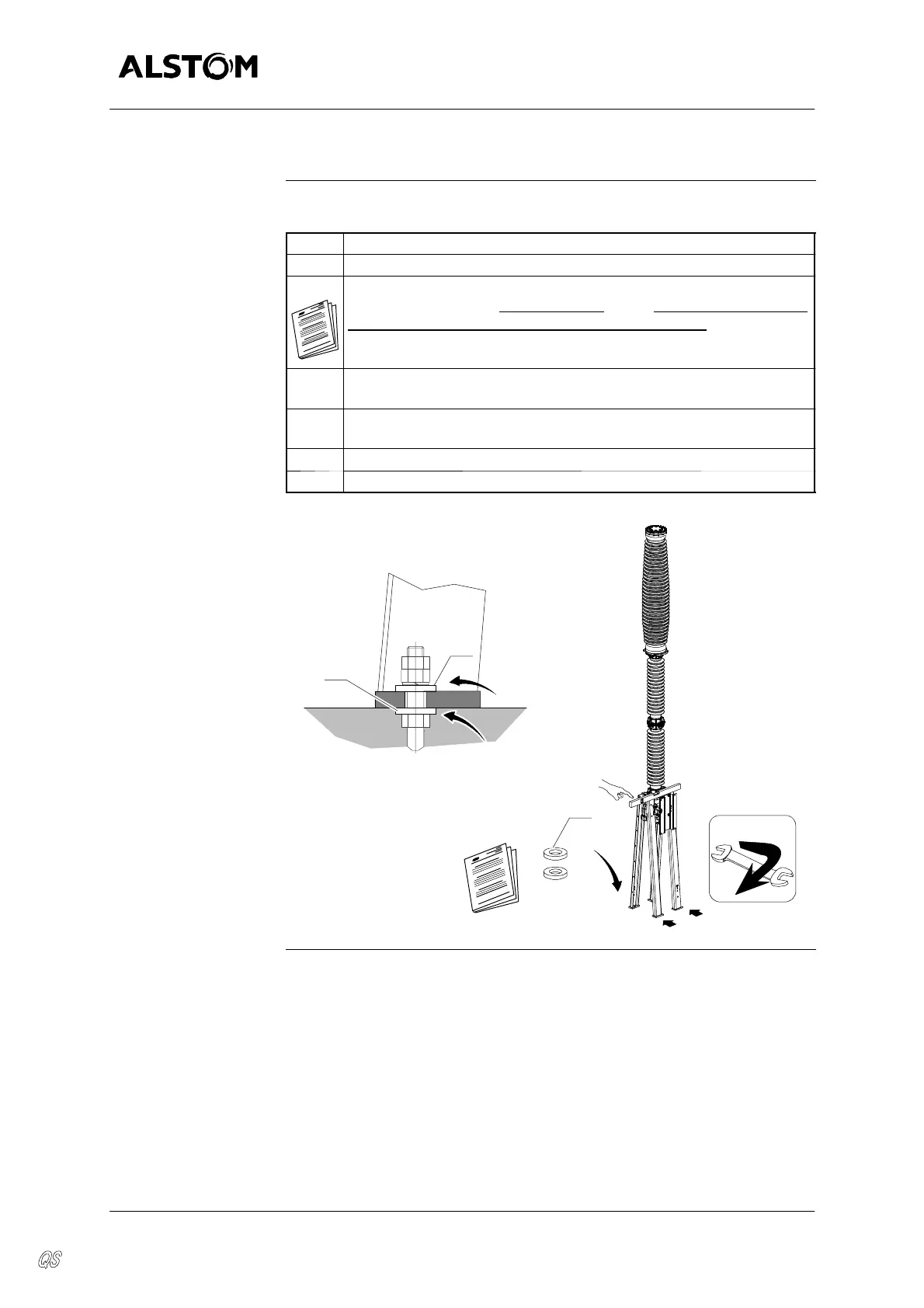

Positioning the pole
Process
The table below gives the steps of positioning the pole :
Step Action
1 Install the lower washers (12) on the fixation mounting.
2 Use a lifting device to position the chassis frame onto its ground
attachment points but do not secure it
, whilst respecting the orienta-
tion of the pole indicated on the sketch of the device
.
3 If necessary, place shims under the supports of the frame so that the
upper plate is level.
4 Install the upper washers (12) and clamp the whole to the ground
using nut.
5 Remove the lifting straps.
6 Check the tightening torques of all frame screws.
12
18 daN.m
12
12
