SAFETY

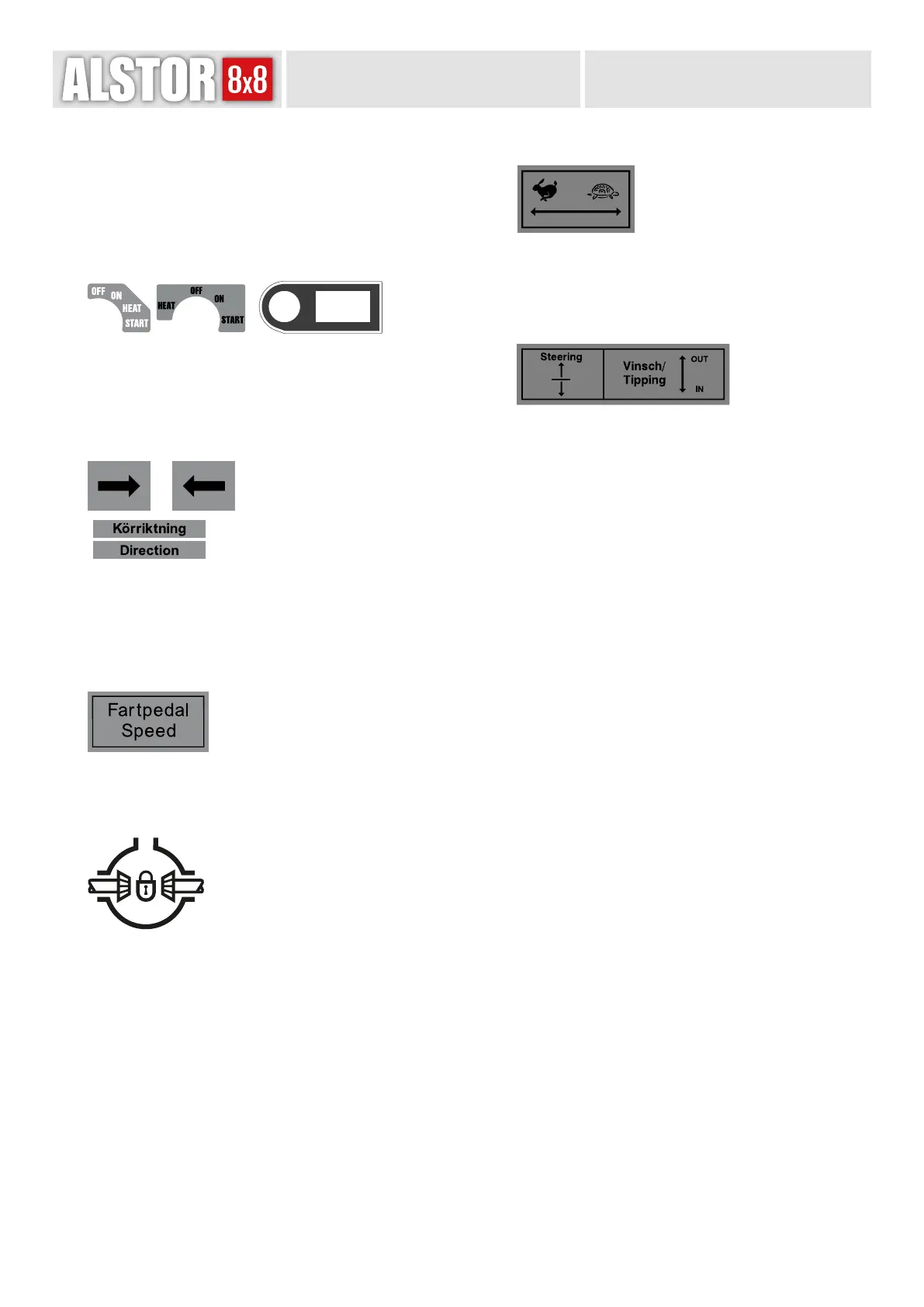

1.5 FUNCTIONAL MARKINGS
The functions of the machine are explained below and
where appropriate illustrated with pictures.
OFF
ON
HEAT
START
IGNITION SWITCH DIESEL
OFF = Ignition o, ON = Ignition on,
HEAT = Glow-plug operation, START = Start of engine
DIRECTION OF TRAVEL
Forward
Neutral
Reverse
ACCELERATOR PEDAL
DIFFERENTIAL LOCK
ENGAGE/DISENGAGE
MANUAL THROTTLE CONTROL
Left/hare = Increased gas/engine speed
Right/turtle = Decreased gas/engine speed
STEERING, WINCH AND TIPPING CONTROLS
Arrows indicate joystick function.
Machines optionally equipped with awinch and tippable
atbed have function markings indicating the OUT and IN
directions.
For other crane model options, please refer to the instruction
manual supplied with the crane.
