ALSTOR 822 - Location of Controls

14 | www.alstor.se
822/834/850
Instruction manual
SAFETY
Vänster Spak Höger Spak
Vänster Spak Höger Spak

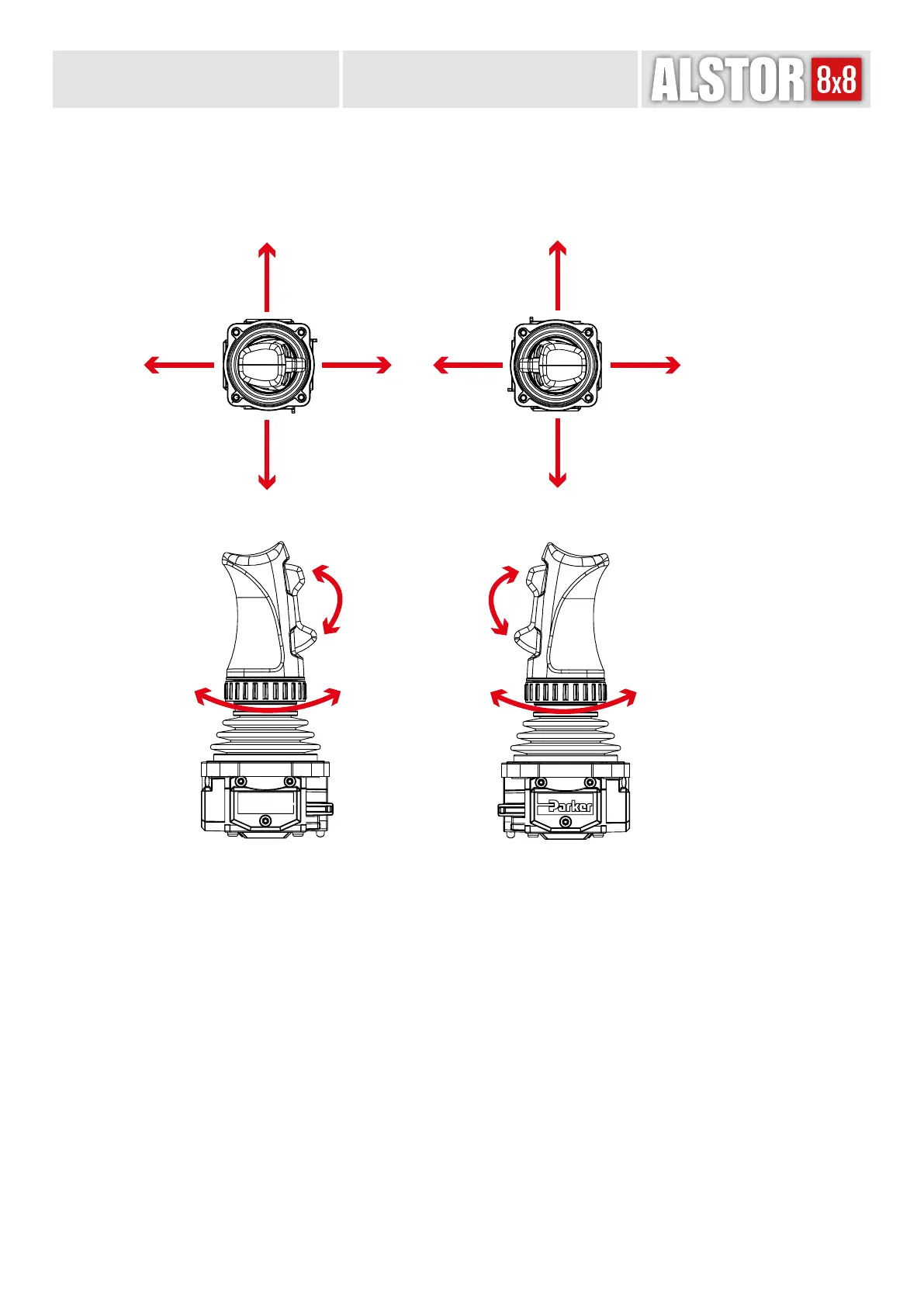

1.6 MINI-LEVER FUNCTIONS – Electrical proportional control (LC6)
LEFT MINILEVER
5A = Right crane swing
5B = Left crane swing
6A = Rocker arm out/up
6B = Rocker arm in/down
7A = Telescope out
7B = Telescope in
8A = Outrigger up
8B = Outrigger down
RIGHT MINILEVER
1A = Rotator anti-clockwise, articulated steering
(when driving)
1B = Rotator clockwise, articulated steering
(when driving)
2A = Main boom up
2B = Main boom down
3A = Grip open
3B = Grip close
4A = Outrigger down
4B = Outrigger up
7A 3A
7B
8B 4B8A 4A
3B
2A6B
5B 1A5A 1B
