ALSTOR 822 - Belt Adjustment; Belt Replacement

www.alstor.se | 55
Instruction manual
SERVICE AND MAINTENANCE
850/850 H
Hydrostat pump/hydraulic pump drive belt
Replacement/adjustment
■
Tilt the cab according to the previous instructions.
■
Check the belt tension every 400 hours of operation and adjust
if necessary.
Belt adjustment:
■

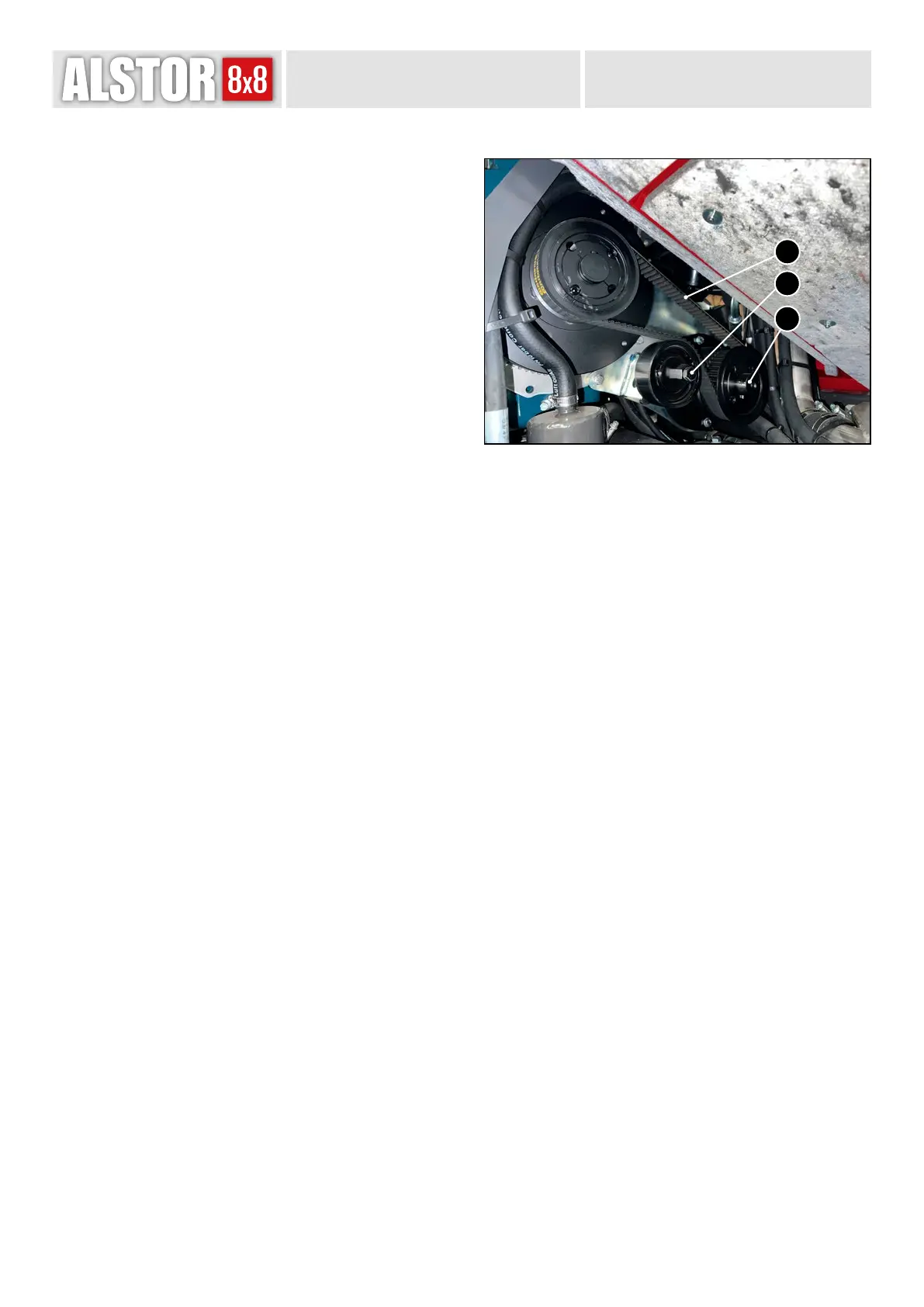

Check the belt tension by applying pressure to the middle of
thebelt (1).
It should move afew centimetres, i.e. slightly springy. When
properly tensioned, it should be possible to twist the belt 90
degrees by hand in the middle. An excessively tensioned belt
will result in undue wear.
■
If necessary, adjust by loosening the tensioning wheel (2) and
pushing it up to the desired position. Tighten and check the
tension. Alternatively, loosen the indicated screw one turn and
adjust using the eccentric washer. Pull gently.
Belt replacement:
■
Loosen the stop screw on the tensioning wheel (2) and lower
itto slacken the belt.
■
Loosen the belt and replace it with anew one.
■
Tighten the belt by raising the tensioning wheel, and tighten
the stop screw.
■
Check and adjust the belt tension.
Dead-eye bearing
■
Service of the dead-eye bearing (3) must be carried out by
anauthorised workshop every 1,200 operating hours.
2
3
1
