850/850 H
Instruction manual
SAFETY

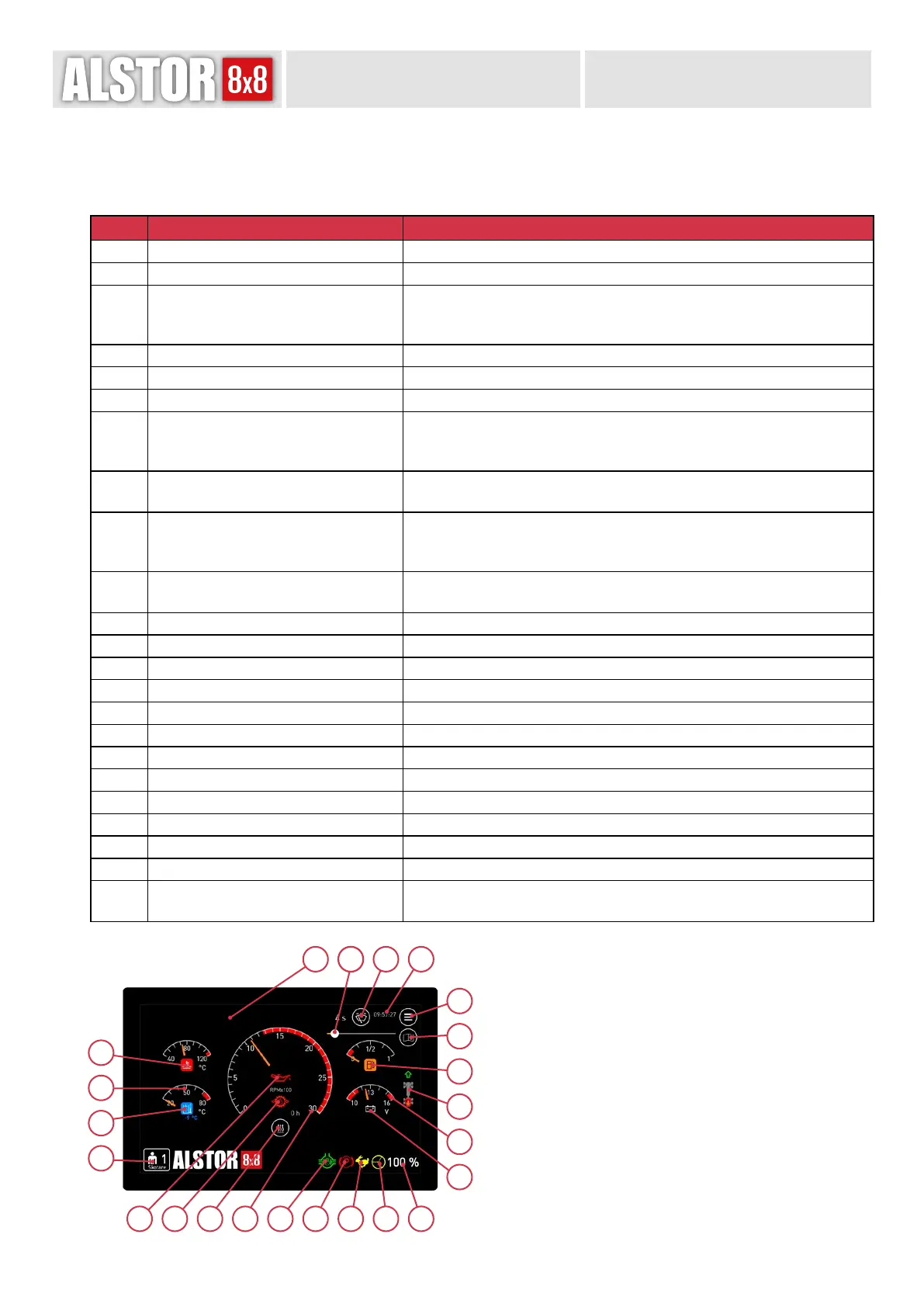

1.9 DISPLAY, 850/850 H
The appearance of the display may dier depending on options and tted equipment.
Item
Symbol/button Information
1.
Radiator water temperature
2.
Hydraulic oil temperature
3.
Low/high hydraulic oil temperature
indication
Low = Blue, High = Red. If the temperature becomes high, stop the engine and
investigate the cause.
The engine warm-up programme is indicated by symbol no. 7.
4.
Operator selection The machine features 5 separate crane operator settings.
5.
Diesel engine low oil pressure warning Switch o the engine immediately and check the oil level.
6.
Diesel engine low oil pressure hydrostat Switch o and check the hydraulic oil level.
7.
Warm-up programme Available between -10°C and +15°C. Activate using the button. Refer to the
instructions. Once sucient temperature is reached, the warm-up function
automatically switches o.
8.
Tachometer Never exceed the red marking on the tachometer. Automatic adjustment
according to the operating temperature.
9.
Dierential lock When the lamp is illuminated, the dierential locks are engaged.
When activated, the lamp ashes yellow for 4 seconds and the machine cannot
be operated.
10.
Automatic parking brake Indicates that the machine is braked. If the machine moves despite the lit
indicator, check brake operation.
11.
High gear activated Activates when inching between 50 and 100% in high gear.
12.
Machine steering Steering control is activated when the lamp lights.
13.
Inching 0-50% low gear. 50-100% high gear.
14.
Low battery voltage Alerts of low battery voltage. Investigate the cause.
15.
Battery voltage
16.
Heading indicator/Outriggers down Front/rear gear. Also indicates if the outriggers are down.
17.
Fuel gauge Warns when approximately 3 litres remain.
18.
Lever information
19.
Menu button
20.
Clock
21.
Windscreen wiper activated Press to adjust the interval.
22.
Windscreen wiper interval Use the display for stepless interval adjustment.
23.
* Outrigger warning Asymbol in combination with ared warning frame will warn when the
outriggers are down and the machine is in motion.
1
19
2
18
3
17
4
16
15
14
5 6 7 8 9 10 11
222223
12
21
13
20
