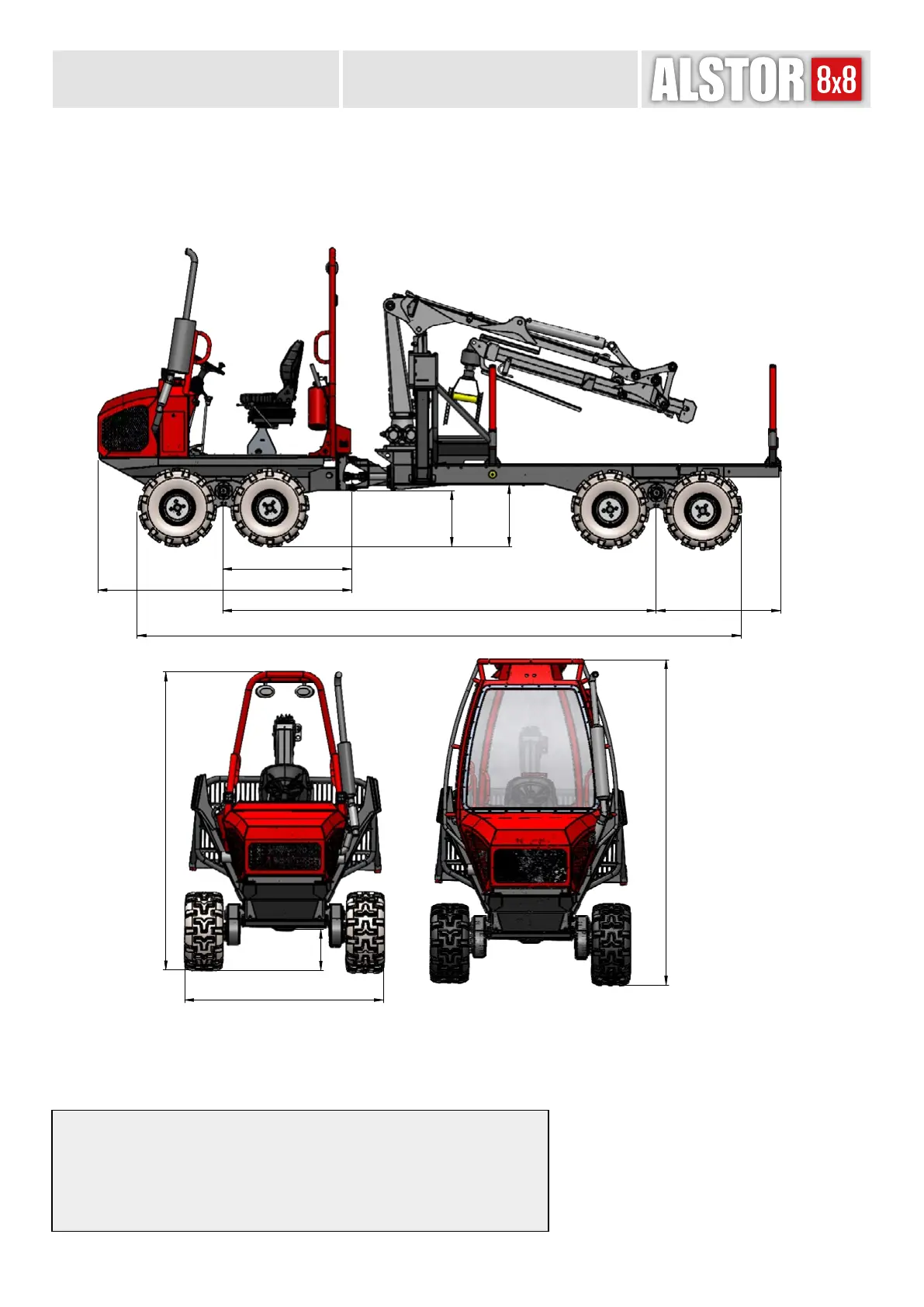

ALSTOR 822 - Dimensions and Weight

58 | www.alstor.se
822/834/850/850 H/851
Instruction manual
TECHNICAL SPECIFICATIONS
3442 (3842)
443
491
4795 25" ( 5195)
2016
1026
2728
989
327
1580 25"
2365 25"
2583 834 25"
General Tolerance:
ISO 2768-1: Medium
ISO 13920: B
Article No.
Sheet: 1/1
Max Ra6,3
General Surface Finish European
Projection:
Phone: +46(0)524-40745
Rev.
190000
Description:
Benämning:
Size:
Created Date:
2022-04-20
A3
Material:
Weight: kg
Created By:
A A
B B
C C
D D
E E
F F
8 7 6
5
5
4
4
3
3
2
2
1
1
4.2 DIMENSIONS AND WEIGHT
Models 822 and 834
Kerb weight 822/1,900 kg | 834/2,300 kg
Width 1,580 mm
Ground clearance 327 mm
Load capacity 3,000 kg
Obstruction clearance 510 mm
A/C + 134 mm
