ALSTOR 822 - Tilting the Cab

www.alstor.se | 49
Instruction manual
SERVICE AND MAINTENANCE
850/850 H

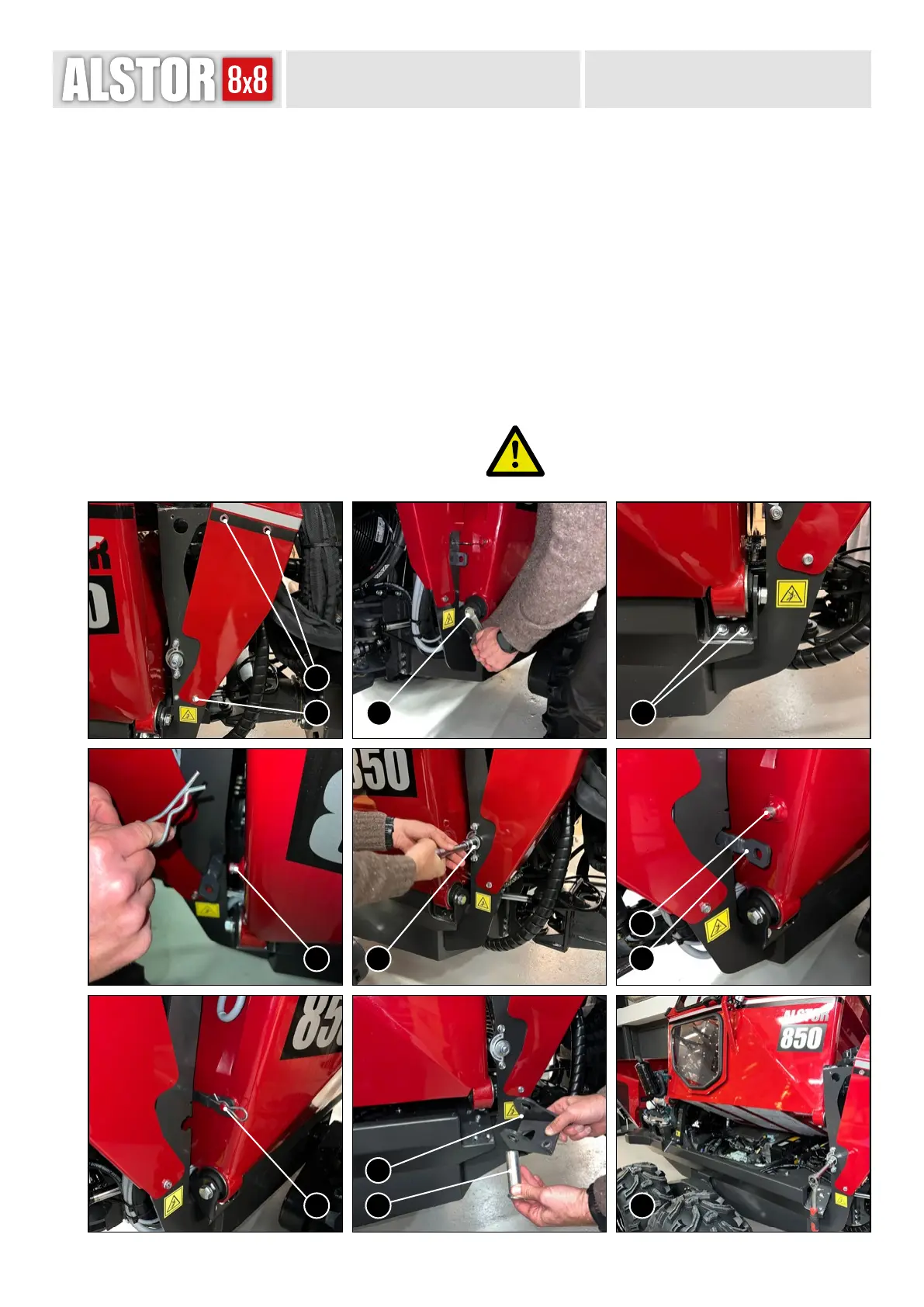

Tilting the cab
■
Loosen the lower screw (1) slightly and remove the two
upper screws (2) on the left and right sides in order to tilt the
protective cover back (not on 850 H).
■
Loosen 2 × M24 screws on the front and rear on the right side.
Let them stay in place (3).
■
Loosen and remove 2 × M8 screws on the front section and on
the rear section on the left side (4).
■
Loosen the cotter on the right side (5).
■
Screw anti-clockwise with aratchet spanner and 24 mm socket
(6). The support on the right side (7) can now be mounted on
the corresponding attachment point on the cabin (8).
Secure the strut with the locking cotter (9).
■
Tilt the cab by turning anti-clockwise with the ratchet spanner (6).
When the cabin is raised 10 cm, loosen the M24 screw and pull
out the axle (10) and remove the bracket (11). NOTE: Applies to
the front and rear on the left-hand side of the cabin.
■
Slightly tilt the cab further by turning anti-clockwise using the
ratchet spanner (6). NOTE: Max. 40 degrees, see (12).
Tilt the cab back.
■
Turn the ratchet spanner clockwise until the cabin is down (12).
■
Reinsert the axle and bracket (10, 11).
■
Screw the front and back screws back (4).
■
Remove the strut from the attachment point and put the cotter back (9).
■
Screw back the M24 screws on the front and rear (3).
■
Ret the protective cover.
WARNING! Exercise great care. There is arisk of crushing.
Secure the cab against tipping forwards or backwards.
3.7 INSTRUCTIONS FOR OIL/FILTER REPLACEMENT, 850/850 H
9 10 12
11
5 6 7
8
1 3 4
2
