3.7 INSTRUCTIONS FOR OIL/FILTER REPLACEMENT, 822/834
Always take used oils/waste to the local waste collection facility for recycling.
WARNING! Always wear personal protective equipment when handling oils. Oils can be corrosive to the skin. Oils in awarm
machine can be extremely hot. Risk of injuries from burns.
The machine’s undercover (1) may need to be removed to gain access to certain oils and lters.
Loosen 4 screws on each side. Atotal of 8 pcs.
After work is completed, reassemble and secure with the same screws.
Engine oil
Please also refer to the engine instruction manual. The engine oil plug can most easily be accessed from beneath the machine after having
removed the undercover (1). The engine oil quality is important for both engine power and engine service life.
Always use the recommended oil grade and oil lters. Check, replenish or replace the oil regularly.
To replace engine oil lters, see under the lter heading later in this chapter.
Gearbox oil
Recommended gearbox oil:
■
To ensure quick and complete draining of the oil, replace the oil with the engine at normal operating temperature.
■
To gain access, remove the undercover (1), front oor plate (3) and torpedo plate (2).
■
The gearbox can most easily be accessed from the operator position. See picture.
■
Remove the oil ller plug (4). Use the dipstick to check the oil level.
■
Place acollecting vessel under the gearbox.
■
The bottom of the gearbox has adrain plug.
To gain access to this under the machine, rst remove the undercover as explained above.
Open it using a12 mm Allen key.
■
Unscrew the drain plug and drain the oil.
■
Once the oil has been drained, screw the drain plug back into place and ll up with the recommended oil. For the correct quantity,
seetable 3.7 Oils, lters and liquids, 822/834.
■
Replace the oil ller plug.

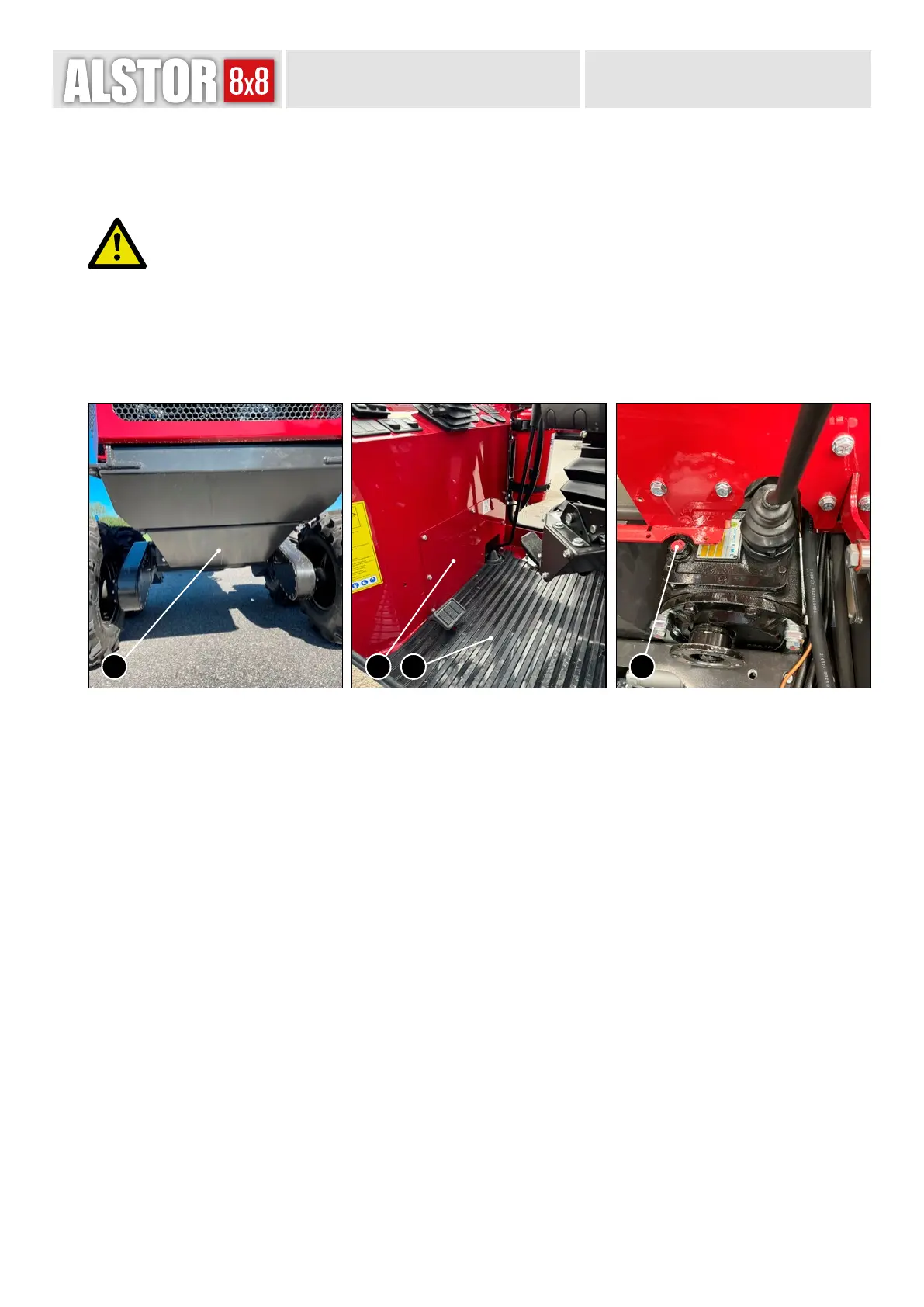

1 2 3 4
