SERVICE AND MAINTENANCE
822/834
Bogie box oil
■
Place an oil collection vessel under the inspection cover (4)
onthe inside.
■
Undo the inspection cover on the inside by removing all
screws. (4)
Allow the oil to be drained and, if necessary, suction out
theremaining oil using oil suction equipment.
■
Clean the surfaces of the inspection covers and apply new
silicone. Replace the inspection cover using all the screws.
■
Once the oil is drained, loosen the oil plug (5) and ll with
1litre of oil at each wheel, i.e. atotal of 2 litres in each
bogiebox.
3.7 INSTRUCTIONS FOR OIL/FILTER REPLACEMENT, 822/834
Replacement of dierential oil at the rear and front.
■
Place asuitable vessel for oil drainage underneath, open the bottom plug (2) and drain the oil. If the bottom plug does not come out,

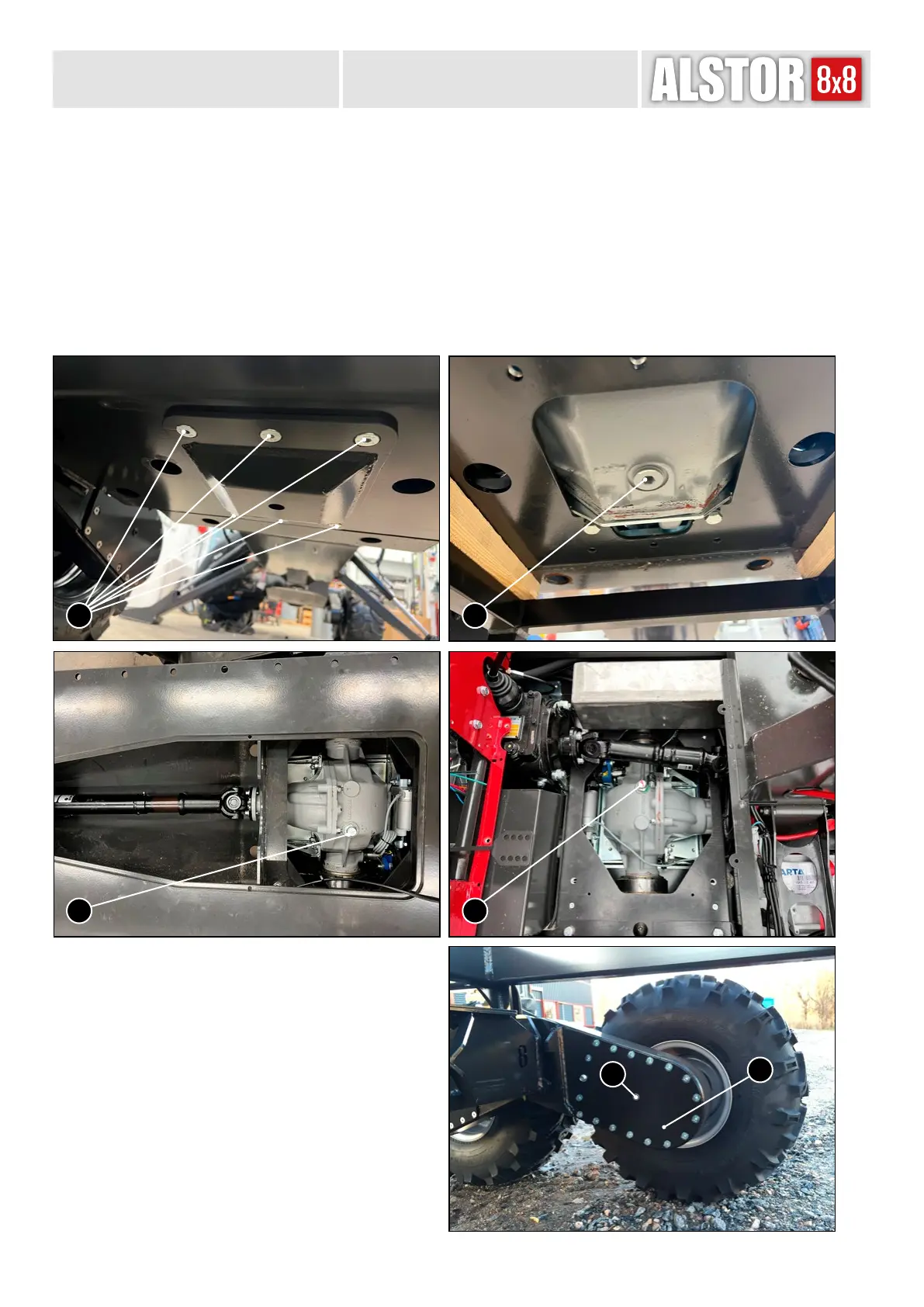

you may need to dismount and remove the protective cover (1). NOTE: Located on both the front and rear section. See picture.
■
Screw the drain plugs back and put the protective cover back in place.
■
Remove the inspection cover/oor plate. Open the oil ller plug. (3) See the marking in the picture. Fill with new oil at the front and
rear. See the table on page 42. Replace the oil ller plugs at the front and rear and ret the inspection cover/oor plate.
