SERVICE AND MAINTENANCE
822/834
3.6 LUBRICATION CHART, 822/834
Always replace clogged or defective grease nipples.
Remove the load from joints before lubrication.
Use lithium-saponied grease with an NLGI grade 2 EP additive
LUBRICATION CHART
Lubrication site Number Lubricant Interval (operating hours)
1. Front section, under the oor front 5 Grease, see above 400 h
2. Front section, under the oor rear 6 Grease, see above 400 h
3. Centre joint and transmission shaft, left and right 9 Grease, see above 50 h
4. Rear section, inspection cover 2 Grease, see above 400 h
5. Rear section, inspection cover 1 Grease, see above 400 h
6. Bogie rocker rear section, left and right 2 Grease, see above 50 h
7. Left and right outriggers 3+3 Grease, see above 50 h
×. Should not be lubricated
A Remove the front oor plate by loosening the screws.
B Undo the rear oor plate by turning the quick fasteners.
A B

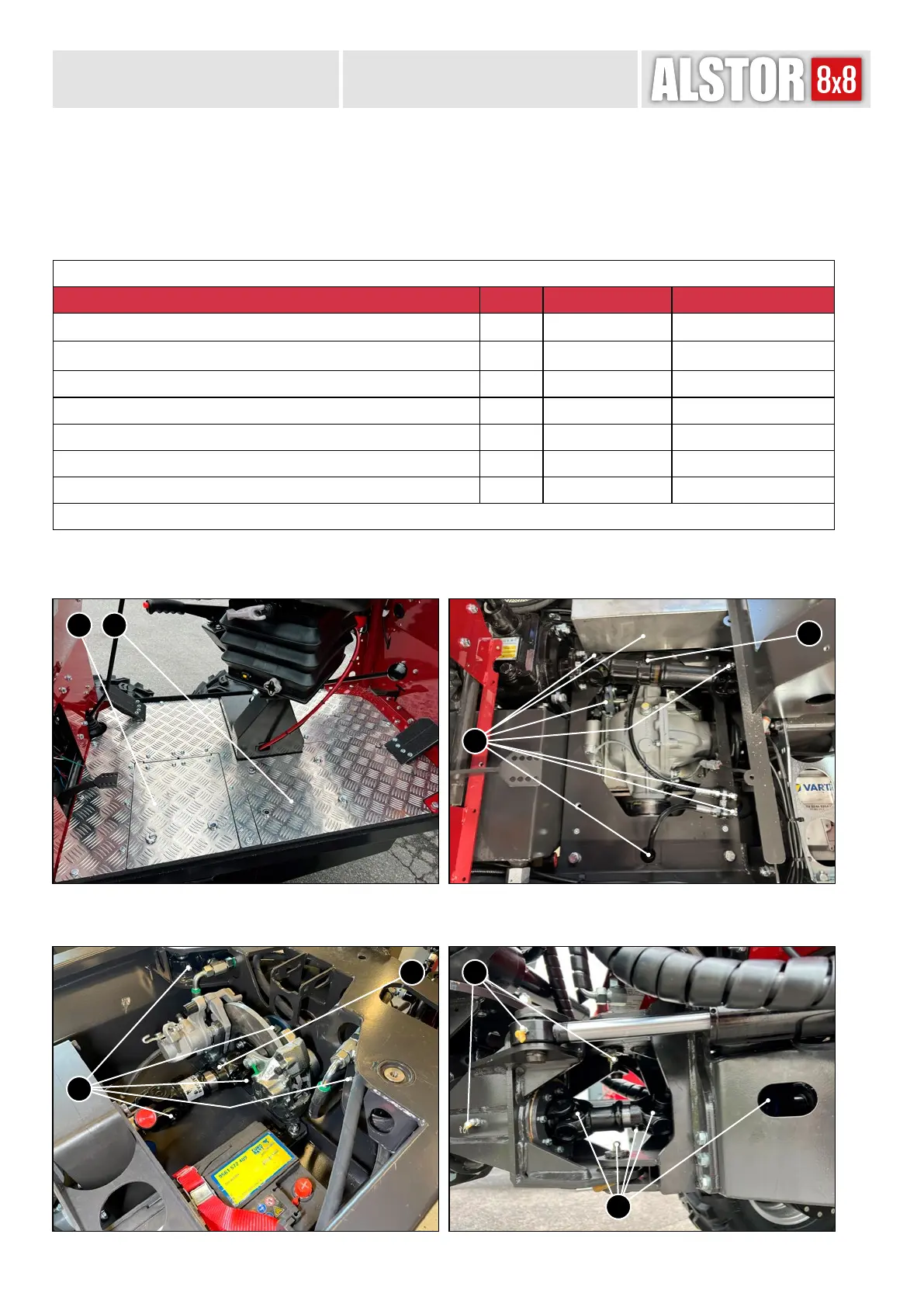

2. Grease points on the front section of the machine, rear inspection
cover.
3. Grease points in the centre joint and on the transmission shaft.
Note: Grease points are on both the left and right side.
2
3
1. Grease points on the front section of the machine, front
inspection cover.
×
1
3
×
