Instruction manual
OPERATION
850/850 H

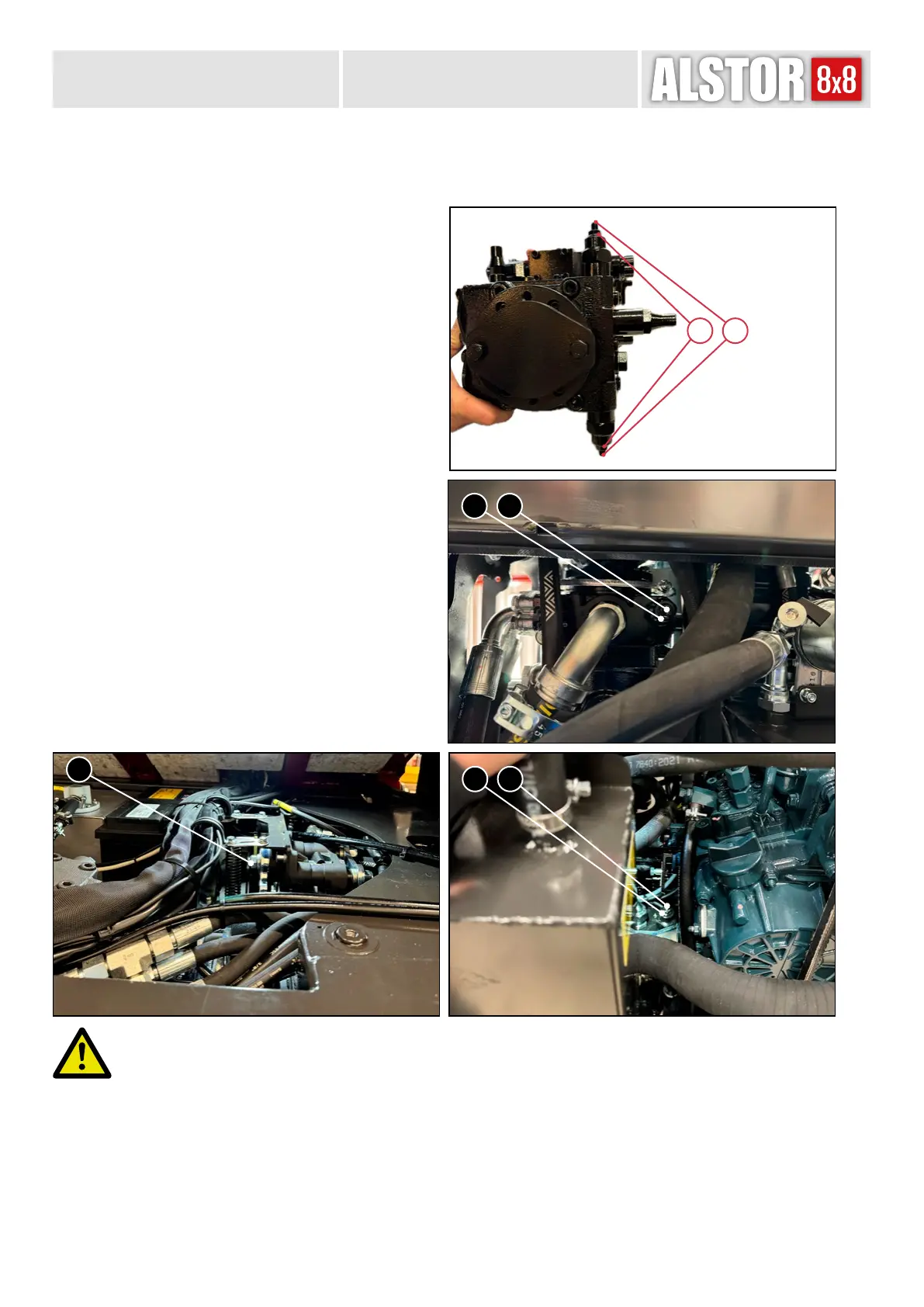

2.4 TOWING AND RECOVERING THE MACHINE, 850/850 H
1 2
1 2
De-activation of the bypass function
(execute on both the upper and lower screw):
■
Loosen the lock nut (1) by turning it anti-clockwise half aturn.
Use an Allen key to turn the screw (2) anti-clockwise until it
stops.
■
Retighten the lock nut (1) by turning it clockwise to atorque
of22 Nm.
Parking brake activation:
■
Tighten the parking brake arm using a½” extender and
concurrently tighten the nut, which adjusts the position of the
brake arm, so that the brake arm stays in the upper position (3).
■
Then adjust the brake arm to the correct position by slowly
loosening the nut (3) until the brake cylinder bolt is in the
middle of the brake console.
3
1 2
WARNING! Steering is unavailable when the engine is switched o.
Transport
When transporting the machine on atrailer or other means of transportation, secure it safely. During transport, the machine must be secured so
that it is able to counteract aforward force that is equal to the full total weight as well as to the rear and sides that is equal to at least half the total
weight. We recommend using tensioning straps since standard ropes are unsuitable because they can stretch when subjected to heavy loads. Check
the condition of the tensioning straps and replace them if damaged. Apply the parking brake and switch o the main power switch. During machine
transport, the crane arm should always be in the parked position and locked. Please make sure you have the requisite driving license qualications
that apply for your transport vehicle. Normally, the machine should rest on all eight wheels.
