Mechanical Data
Section 2.2
Mechanical Data
Dimensions and Weights
About the drawings
All drawings CAD files can be downloaded from www.schneider-electric.com

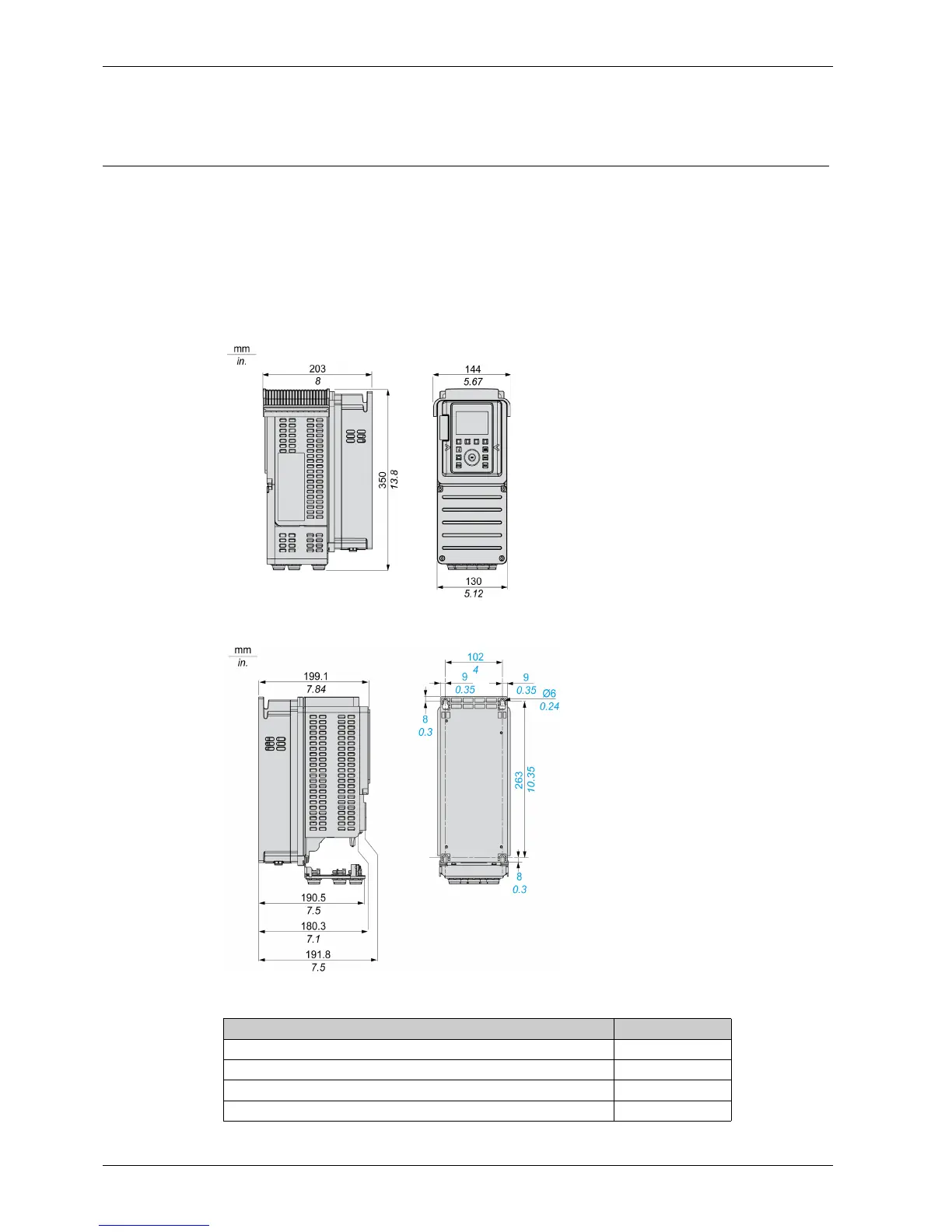

Frame Size 1
IP21 / UL Type 1 Drives - Side and Front View
Drives without IP21 top cover - Side and Rear View
Weights
Catalog Number Weight in kg (lb)
ATV630U07M3, ATV630U15M3 4.3 (9.5)
ATV630U07N4...U22N4, U22M3...U30M3 4.5 (9.9)
ATV630U30N4, ATV630U40N4, ATV630U40M3 4.6 (10.1)
ATV630U55N4 4.7 (10.4)
