Wiring the Power Part
Access To The Terminals For Frame Sizes 1 to 3
Apply the following instructions to access control terminals on frame sizes 1 to 3 drives
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Safety Information chapter before performing any procedure
in this chapter.
Failure to follow these instructions will result in death or serious injury.

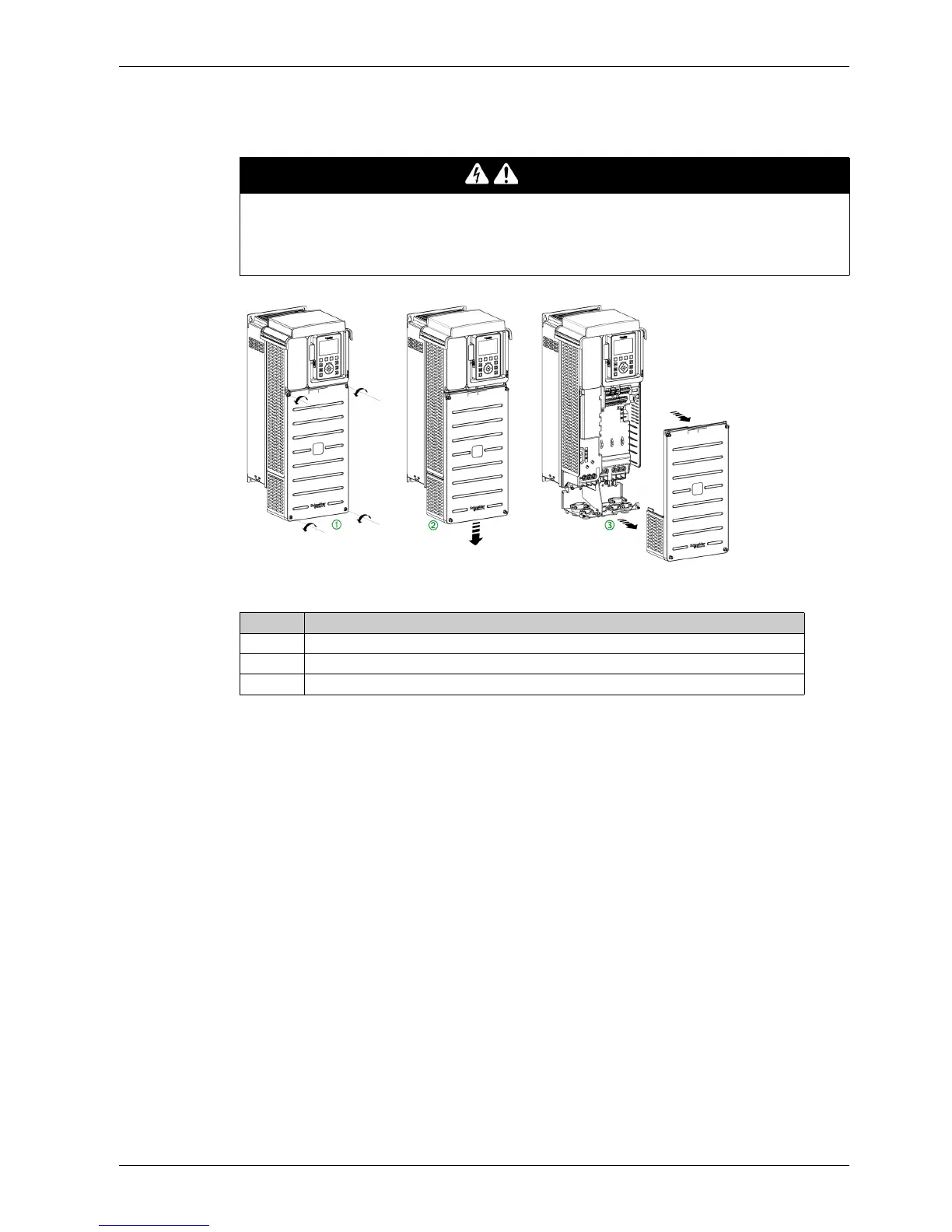

Step Action
1 Unscrew the 4 screws attaching the housing
2 Slide down the front cover
3 Remove the front cover
