Access To The Terminals For Frame Size A
Apply the following instructions to access control terminals on frame size A drives
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Safety Information chapter before performing any procedure
in this chapter.
Failure to follow these instructions will result in death or serious injury.
Step Action

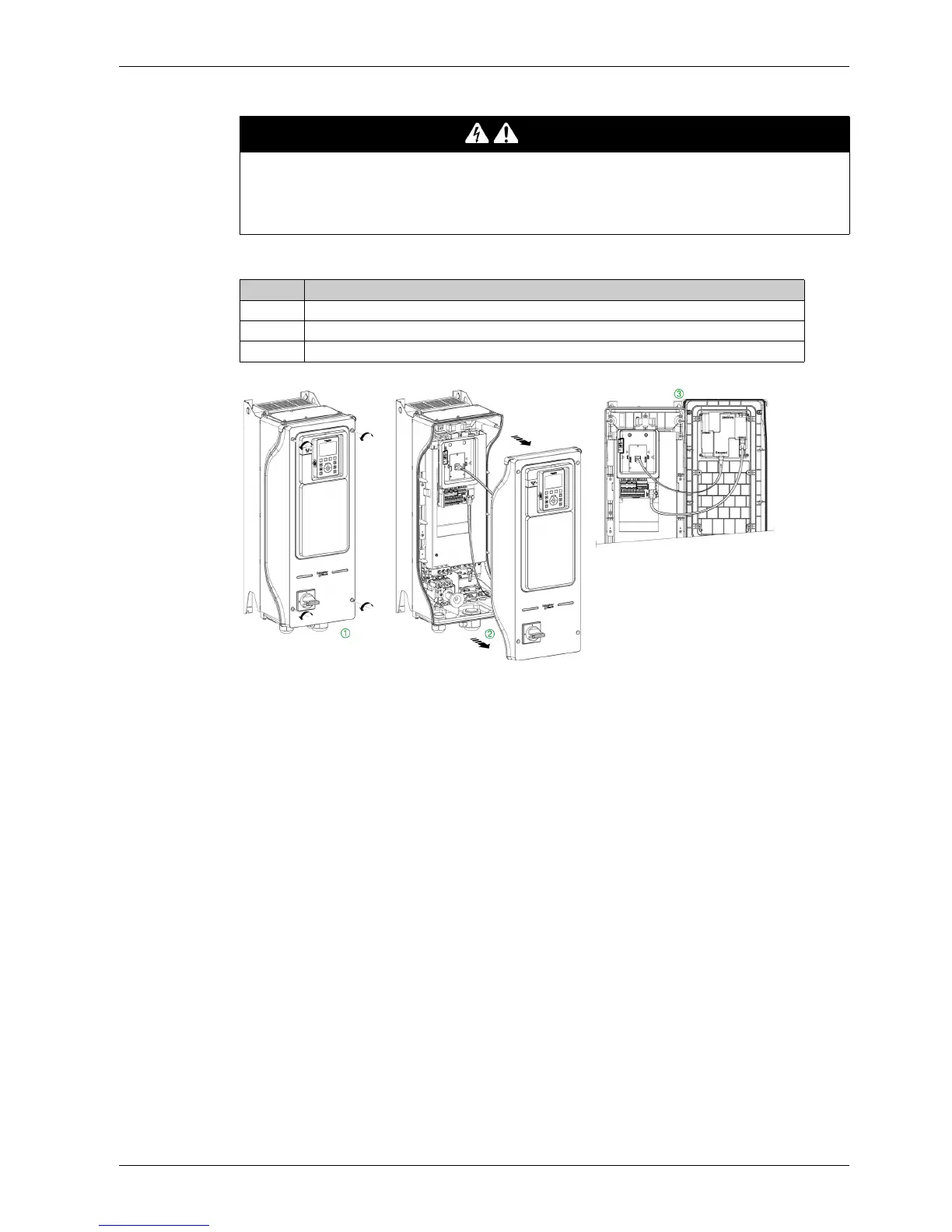

1 Unscrew the 4 captive screws attaching the housing
2 Remove the front cover
3 Attached it on the left or right side of the housing
To Next Page
