18

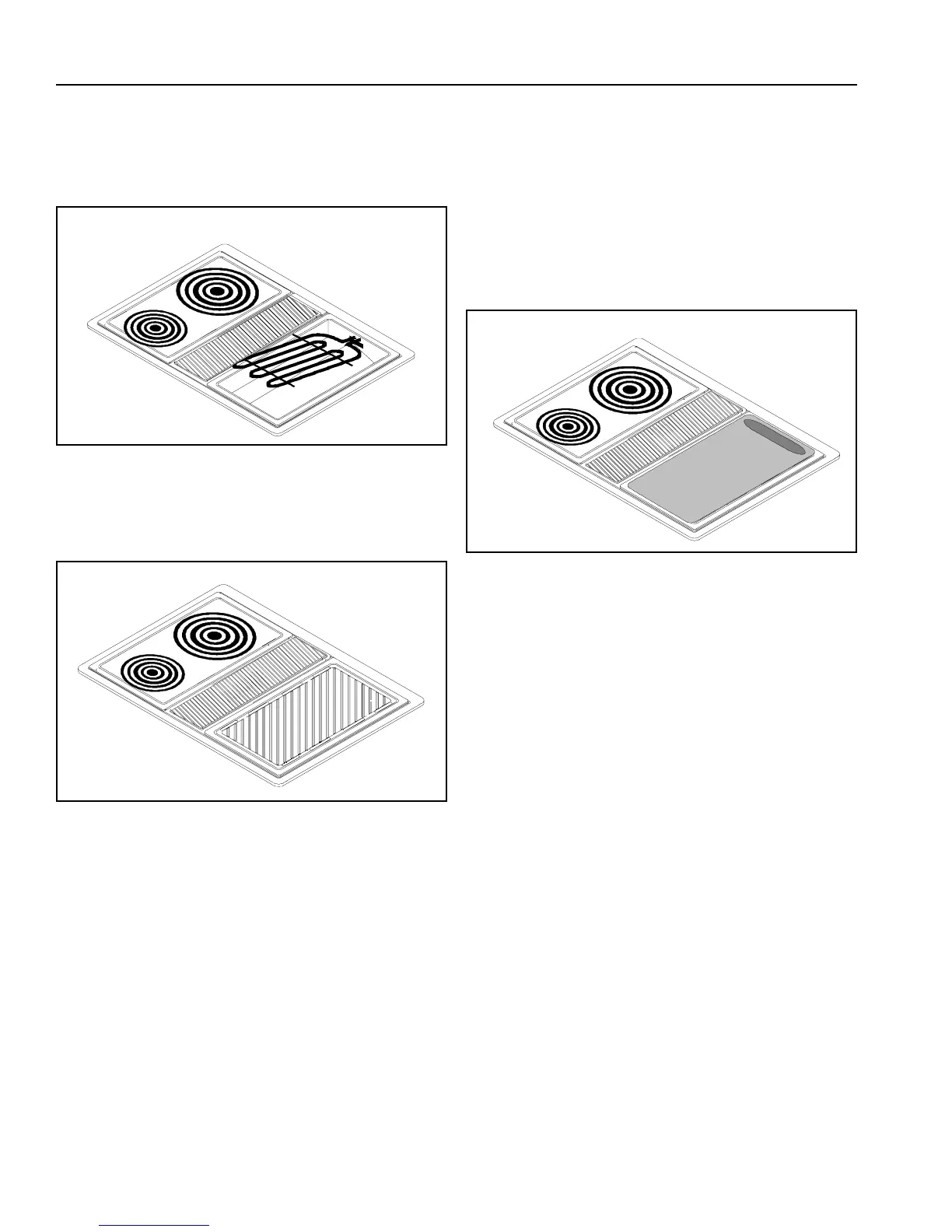

3. See Figure 28. Hold grill element with terminals
pointing toward rear of cooktop.
• Slide terminals into plug as far as they go.
• Check grille element to make sure it is fully
engaged into plug.
Figure 28
4. See Figure 29. Place grill on module pan.
• To remove grill module turn all controls to
OFF
,
allow to cool, and reverse steps above.
Figure 29
Installing Griddle
The range is not intended to be used with more than one
grill or griddle accessory at once.
1. Turn all controls to
OFF.
2. Install module pan and griddle element according to
“Installing Smoke Control Grill™ Module” section.
3. See Figure 30. With grease trap toward rear of
cooktop, place griddle over of element.
• To remove griddle module turn all controls to
OFF
and reverse steps above.
Figure 30
