17
Removing Coil and Smoothtop Modules
1. Turn all controls to
OFF
. Make sure module is cool.
2. Using tab on front of module, lift up slightly.
• Do not lift module too high. Lifting module too high
can cause damage to terminals.
3. Pull module toward the front of cooktop and carefully
lift it out.
Installing Smoke Control Grill™ Module
The range is not intended to be used with more than one
grill or griddle accessory at once.
1. Turn all controls to
OFF
.
2. See Figure 27. Place module pan with terminal
opening towards plug.
A
B
C
A—Rear of well
B—Terminal opening
C—Module pan

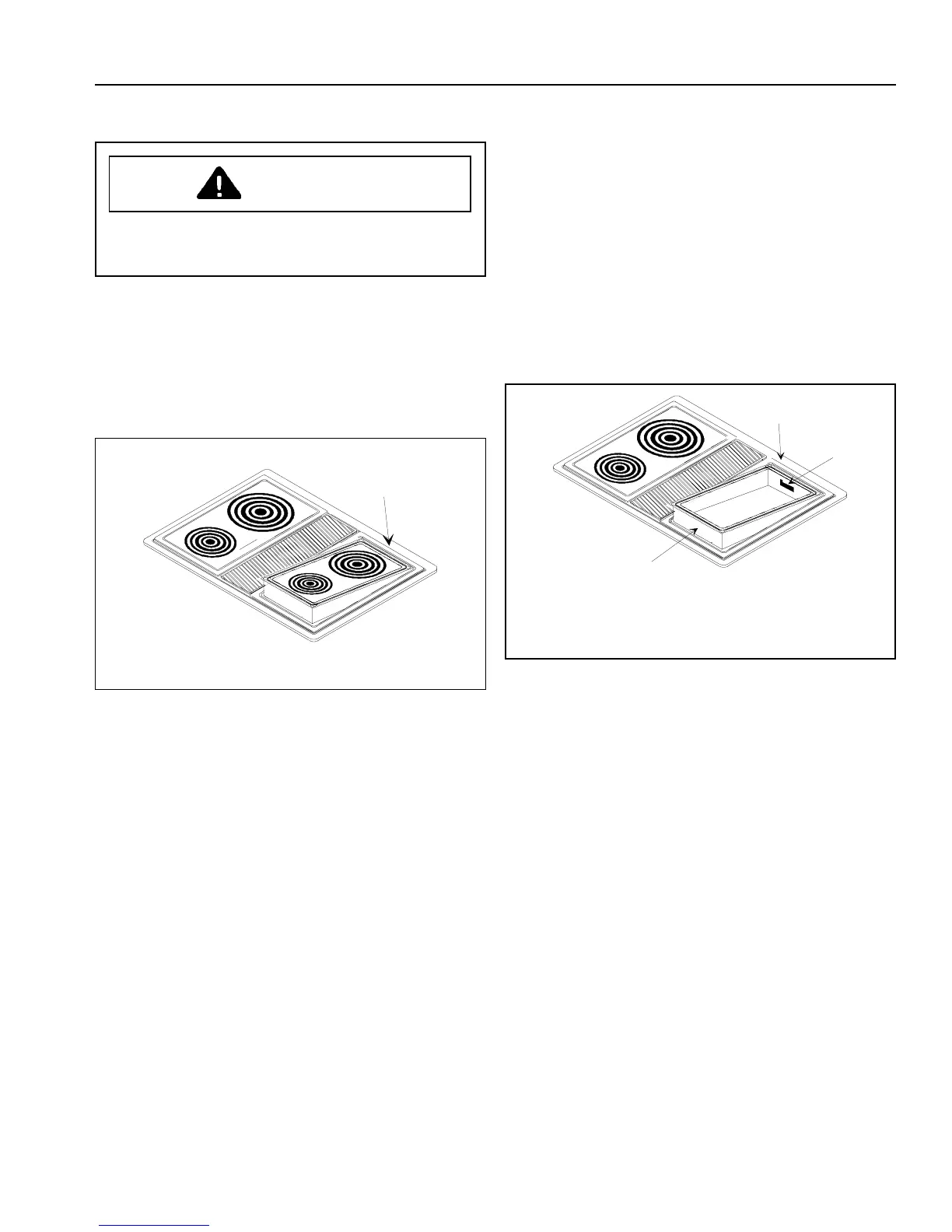

Figure 27
Installing Modules
WARNING
To avoid risk of personal injury, all controls must be in
"OFF" position before removing or installing modules.
Installing Coil and Smoothtop Modules
1. Turn all controls to
OFF
.
2. Hold module with terminals pointing toward rear of
range.
3. See Figure 26. Place end of module into range well
with terminals facing rear of well.
• If module pan from grill or griddle module is in well,
remove before installing coil module.
A
A—Rear of well
Figure 26
4. Slide module towards rear of cooktop until module
engages. Lower front of module into well.
To Next Page
