December 1997 89 RS1300003 Rev. 0
Kit Instructions
Side-by-Side Refrigerator
PK201 and PKD201 1/4"
Decorator Door Panel Kits
Installation Instructions
Introduction
RECOGNIZE THIS SYMBOL AS A
SAFETY PRECAUTION
Caution
To avoid personal injury and property damage,
observe all safety instructions.
Caution
To avoid property damage, protect soft vinyl or other
flooring with cardboard, rugs, or other protective
material.
Read entire manual before installing kit. Confirm all parts
listed are included in kit. If parts are missing, contact
source from whom kit was purchased.
Important
• Mechanical experience is required to install
trim kit.
• Depending on installer’s knowledge and skill,
installation can take from one-half to one hour.
• If unable to solve a problem during installation,
contact source from whom kit was purchased.
Parts List
Description Qty
PK201E
Black
PK201L
Almond
PK201W
White
PKD201E
Black
PKD201L
Almond
PKD201W
White
Panel, Refrigerator Door 1 X X X X X X
Panel, Freezer Door 1 X X X
Upper Panel, Freezer Door
1
X X X
Lower Panel, Freezer Door
1
X X X
Spacer, Refrigerator Door 1 X X X X X X
Spacer, Freezer Door 1 X X X
Upper Spacer, Freezer Door
1
X X X
Lower Spacer, Freezer Door
1
X X X
Installation Instructions 1 X X X X X X
Procedure
Caution
To avoid personal injury, protect hands and arms.Trim
pieces may have sharp edges.
Important: Save all screws and reuse in original
location.

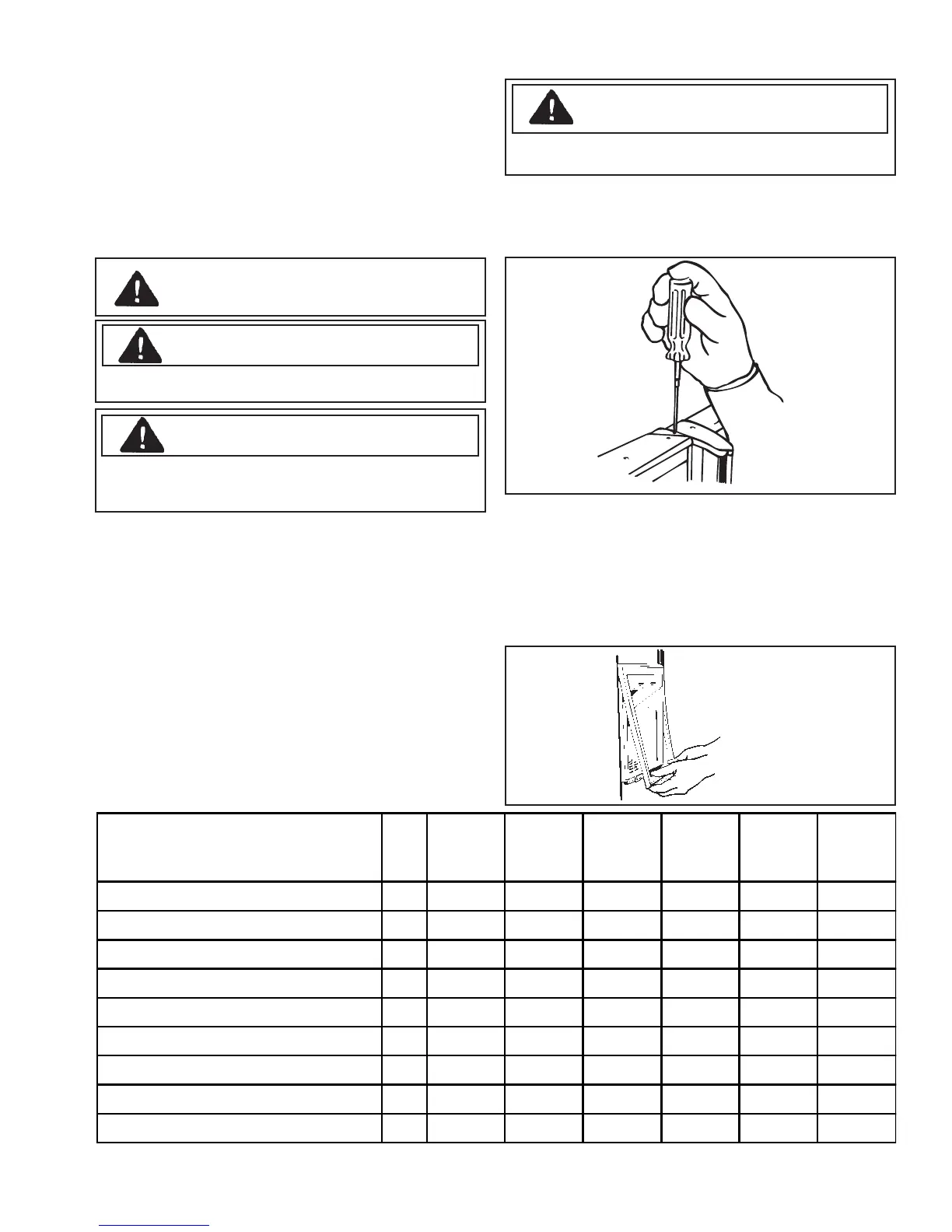

1. Remove top handle end caps by removing
screws.
2. Dispenser Models
Remove crushed/cubed ice switch cover on
dispenser by pulling forward. Remove screws from
bottom of dispenser cover. Release bottom clips on
dispenser cover by placing taped edge of putty knife
underneath cover and pulling out. Release top clips
by holding bottom of dispenser cover out and sliding
up.
To Next Page
