Amana VCA - CCA_FSC & CHA_TSC A Coil Specifications

BBA/BBC BLOWER COIL SPECIFICATIONS
24 Rev. 3
CCA_FSC & CHA_TSC
"A" COIL SPECIFICATIONS

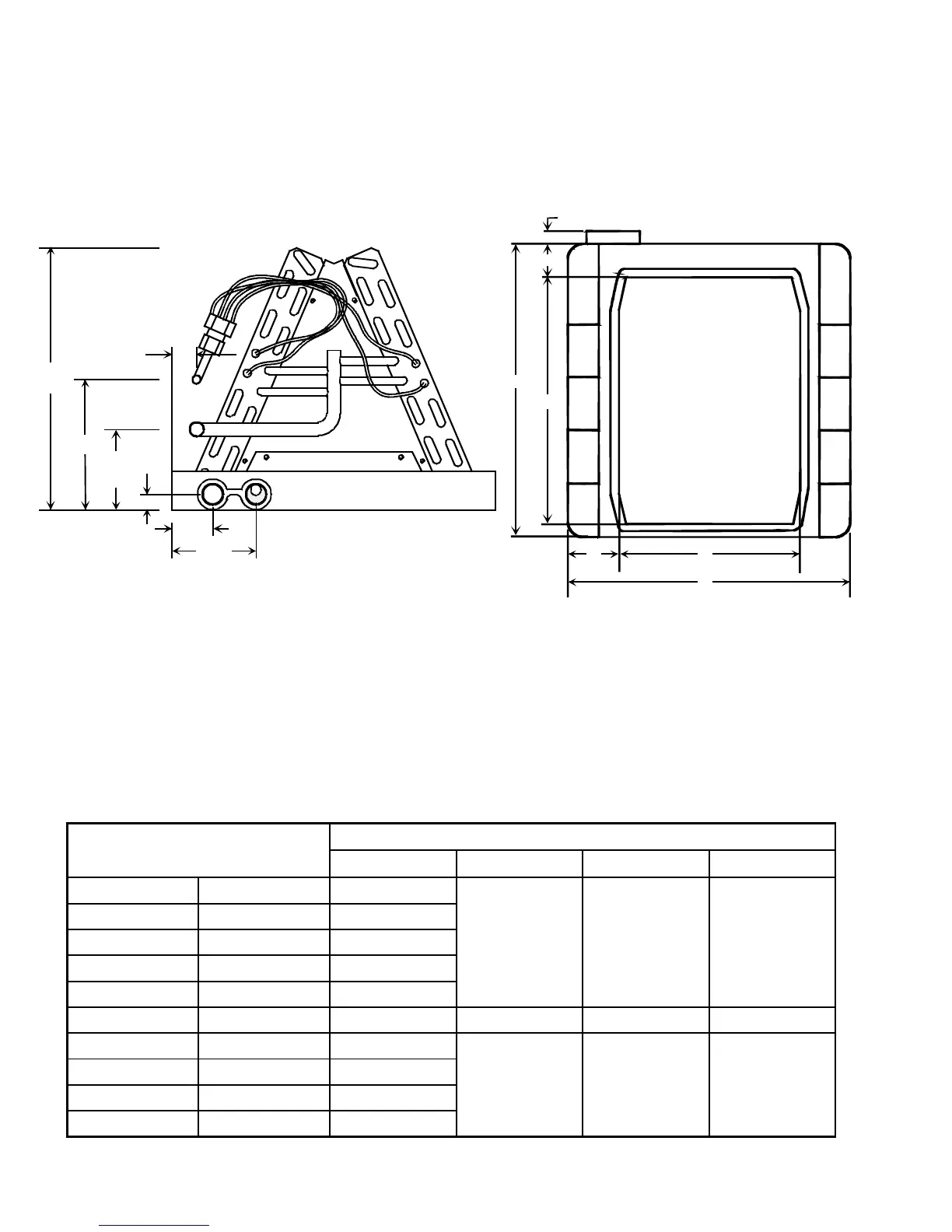

DIMENSIONS (inches)
ABCD
CCA18FSC 12 1/4
CCA24FSC CHA18TSC 12 1/2
CCA30FSC CHA24TSC 16 1/4 15 3 7/16 8 1/8
CCA36FSC CHA30TSC 16 1/2
CCA42FSC CHA36TSC 18 5/8
CCA48FSC CHA42TSC 20 1/4 19 3 7/16 12 1/8
CCA54FSC CHA48TSC 21 5/8
CCA57FSC CHA54TSC 22 23 4 1/4 14 9/16
CCA60FSC CHA57TSC 24
CHA60TSC 24 3/8
MODEL
1 1/8
1 7/8
3 7/8
6
3 3/4
11/16
A
16 9/16
2 5/16
9/16
D
B
C
20
