Amana VCA - A Coil Dimensions; CCA_TUA & CCA_FUA A Coil Specifications

23 Rev. 3
BBA/BBC BLOWER COIL SPECIFICATIONS
CCA_TUA & CCA_FUA
"A" COIL SPECIFICATIONS
MODEL
CCA18TUA/B
CCA18FUA/B
CCA24TUA/B
CCA30FUA/B
CCA30TUA
CCA36TUA
CCA36FUA
CCA42TUA/B
CCA42FUA/B
CCA48TUA/B CCA60TUA CCA60FUA
EVAPORATOR COIL
Face Area (sq. ft.)
3.8 4.7 4.7 4.7 5.2 6.1 5.6
Rows Deep
2233343
Fins/Inch
14 14 14 14 14 12 14
DRAIN LINE SIZE
3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT
AUX. DRAIN SIZE
3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT 3/4 FPT
HOLDING CHARGE
NITROGEN CHARGE
REFRIGERATION LINE
3/8" LIQ 3/8" LIQ 3/8" LIQ 3/8" LIQ 3/8" LIQ 3/8" LIQ 3/8" LIQ
CONNECTIONS
5/8" VAPOR
5/8" 24T
3/4" 30F
3/4" VAPOR 7/8" VAPOR 7/8" VAPOR 7/8" VAPOR* 7/8" VAPOR*
APPROXIMATE SHIPPING
WEIGHT
26 lbs 35 lbs 35 lbs 37 lbs 39 lbs 66 lbs 43 lbs
* Unit is rated with 1-1/8" suction line. Installer should supply 7/8" - 1-1/8" adapter

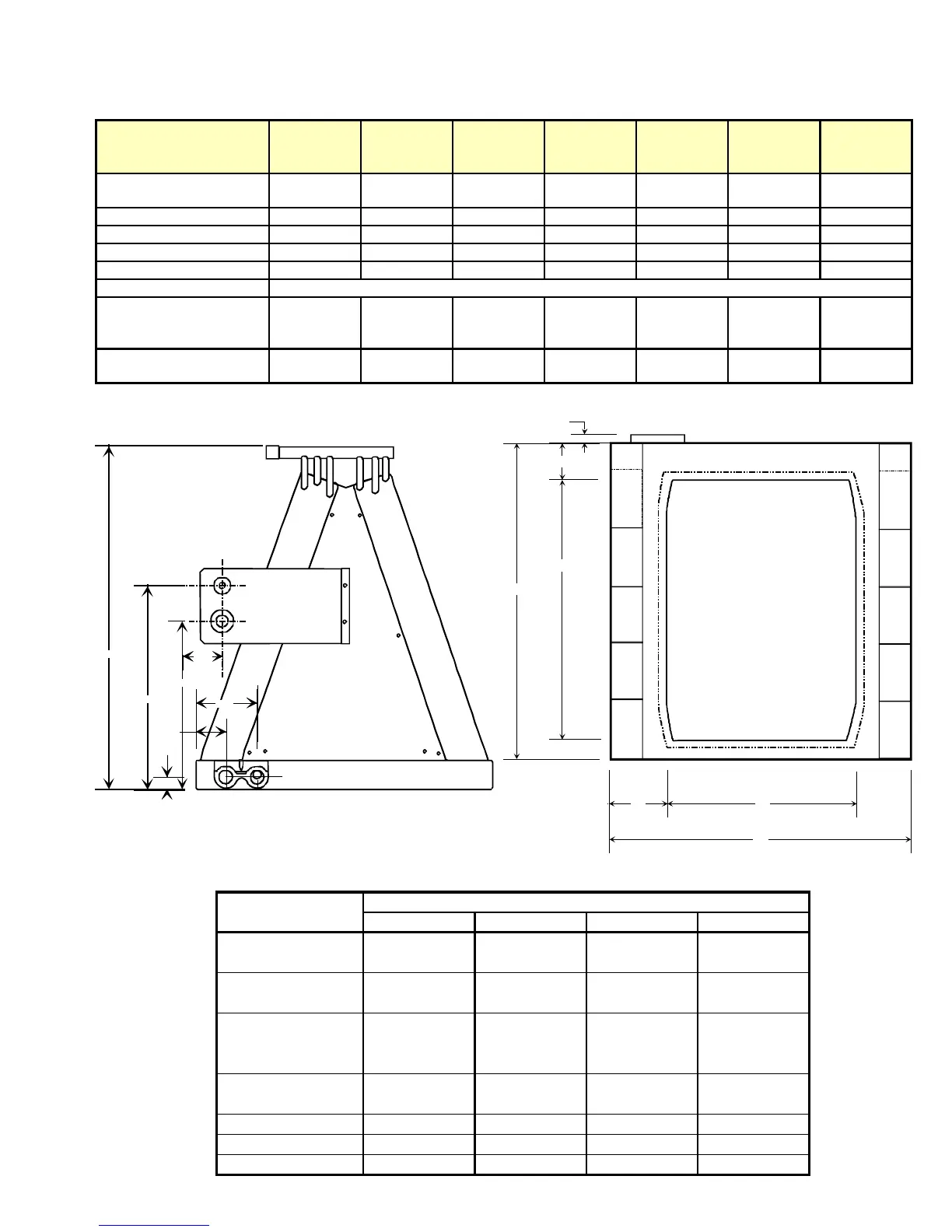

"A" COIL DIMENSIONS
DIMENSION
ABCD
CCA18TUA
CCA18FUA
18 1/4 15 3 7/16 8 1/8
CCA24TUA
CCA30FUA
21 15/16 15 3 7/16 8 1/8
CCA30TUA
CCA36TUA
CCA36FUA
21 15/16 15 3 7/16 8 1/8
CCA42TUA
CCA42FUA
21 15/16 19 3 7/16 12 1/8
CCA48TUA 23 1/4 23 4 1/4 14 9/16
CCA60FUA 26 1/8 23 4 1/4 14 9/16
CCA60TUA 27 13/16 23 4 1/4 14 9/16
MODEL
C
D
B
16 9/16
20
2 5/16
9/16"
1 5/8
3 7/8
1 7/8
10 5/8
12 15/16
A
11/16
