SYSTEM OPERATION
30 Rev. 3

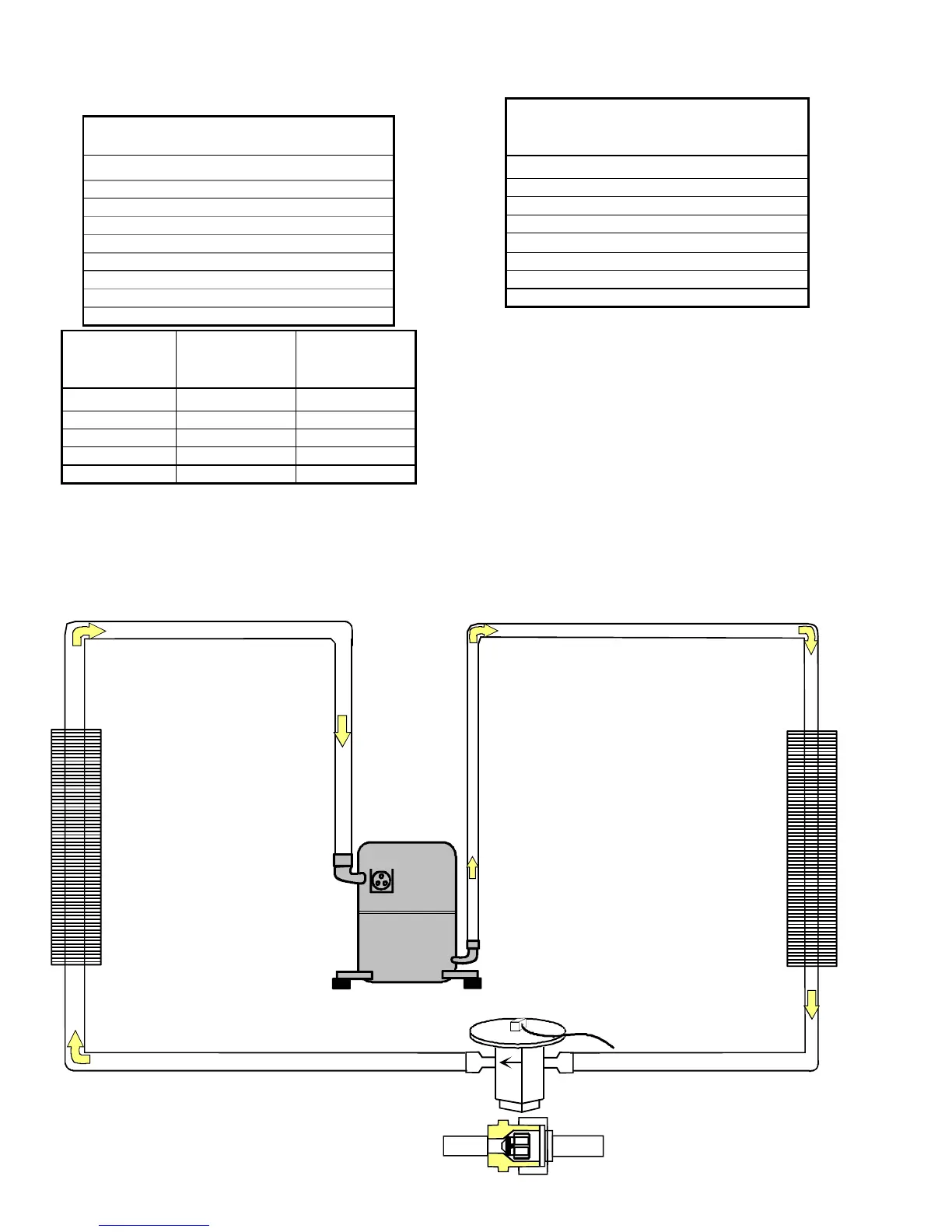

"A"
COIL
ORIFICE
SIZE
CCA18F*C 0.051
CCA24F*C 0.061
CCA30F*C 0.063
CCA36F*C 0.071
CCA42F*C 0.076
CCA48F*C 0.081
CCA54F*C 0.081
CCA57F*C 0.098
CCA60F*C 0.098
"A"COILS WITH SERIAL # 9705 AND LATER
HORIZONTAL
COIL
CCH-FCC
AeroQuip
Orifice size
CCH-FCD
Chatleff
Orifice Size
CCH24F 0.054 0.055
CCH30F 0.063 0.063
CCH36F 0.069 0.068
CCH48F 0.081 0.081
CCH60F 0.092 0.092
HORIZONTAL
"A"
COILS
CCF-F_C
Chatleff
Orifice Size
CCF18F*C 0.051
CCF24F*C 0.061
CCF30F*C 0.063
CCF36F*C 0.071
CCF42F*C 0.076
CCF48F*C 0.081
CCF60F*C 0.098
CCF61F*C 0.098
The refrigerant used in the system is R-22. It is clear, color-
less, nontoxic, nonirritating, and nonexplosive liquid. The
chemical formula is CHCLF
2
. The boiling point, at atmospheric
pressure is -41.4°F.
A few of the important principles that make the refrigeration
cycle possible are: heat always flows from a warmer to a
cooler body, under lower pressure a refrigerant will absorb
heat and vaporize at a low temperature, the vapors may be
drawn off and condensed at a higher pressure and tempera-
ture to be used again.
Indoor
Coil
Outdoor
Coil
Thermostatic
Expansion
Valve
Chatleff
Orifice
Assy
