27 Rev. 3
AIRFLOW DATACCH-F & CHH-T

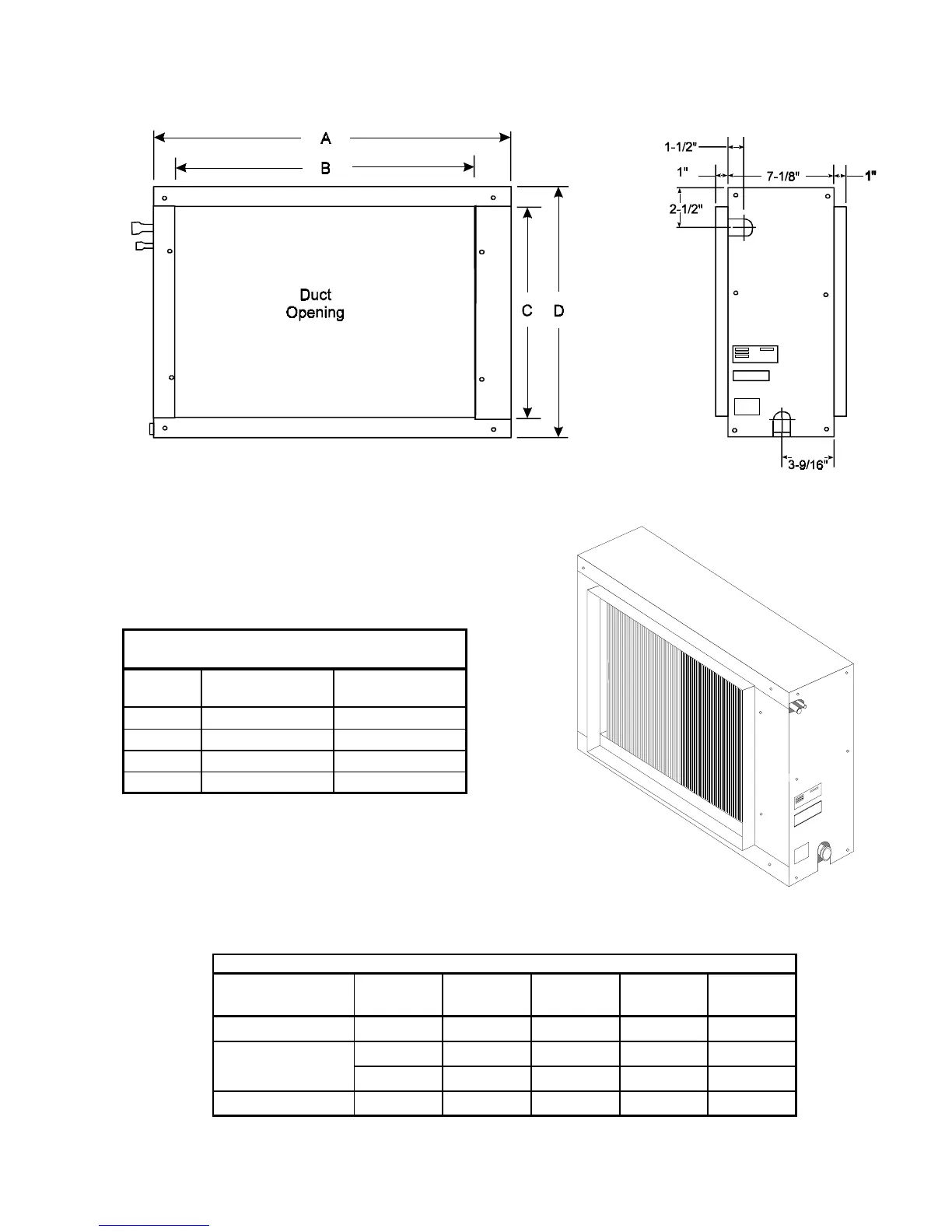

HORIZONTAL COIL SPECIFICATIONS
HORIZONTAL CASED
COIL DIMENSIONS
MODEL
CCH(24-36)F
CHH(24-36)T
CCH(48-60)F
CHH(48-60)T
A 30 1/2 34 1/2
B25 29
C19 23
D 21 1/2 25 1/2
CONNECTION SIZES AND WEIGHTS
MODEL
CCH24F
CHH24T
CCH30F
CHH30T
CCH36F
CHH36T
CCH48F
CHH48T
CCH60F
CHH60T
Drain Line Size
3/4" FPT 3/4" FPT 3/4" FPT 3/4" FPT 3/4" FPT
3/8" Liq. 3/8" Liq. 3/8" Liq. 3/8" Liq. 3/8" Liq.
5/8" Suct. 3/4" Suct. 3/4" Suct. 7/8" Suct. 7/8" Suct.*
Approx. Ship Wgt.
38 44 44 60 65
*Unit is rated with 1-1/8" suction line.
Refrigerant Line
Connections
