Amano EM-e II - Preparation (Continue); Power Supply Connection

１５
3．Preparation(continue)
Be sure to read and understand on the page 3 to 7 “For safety operation” carefully before use
Connecting to the power supply
Import
ant
●All electrical wiring work must be performed by a competent electrician.
●
1 Checking the specifications of the power
Che
ck the name plate that the power specifications of the
product is suit with the power outlet.
●
2 Turning off the switch.
Be sure to turn off the current breaker for preventing electric
shock.
●
3 Grounding the earth
Ensu
re that the earth is installed in accordance with the
requirements that mean maximum grounding resistance is 100
ohms and under.
●
4 Connecting wires except the earth
Scre
w the power cord except the earth firmly with the terminal
block of the electric breaker.
●
5 Turning on the switch
Che
ck the above ① to ④ again and turn on the switch of the electric breaker.
Checking of the breaker：
For safety, install the breaker on the side of the primary power source. The recommended trip value of the breaker
is the following in chart.
Model Type of breaker Trip value(Power 200Ｖ)
EM－15eⅡ 10A
EM－30eⅡ
MCB(Electric breaker for wiring)
or
ELB(Earth leakage circuit breaker )
15A

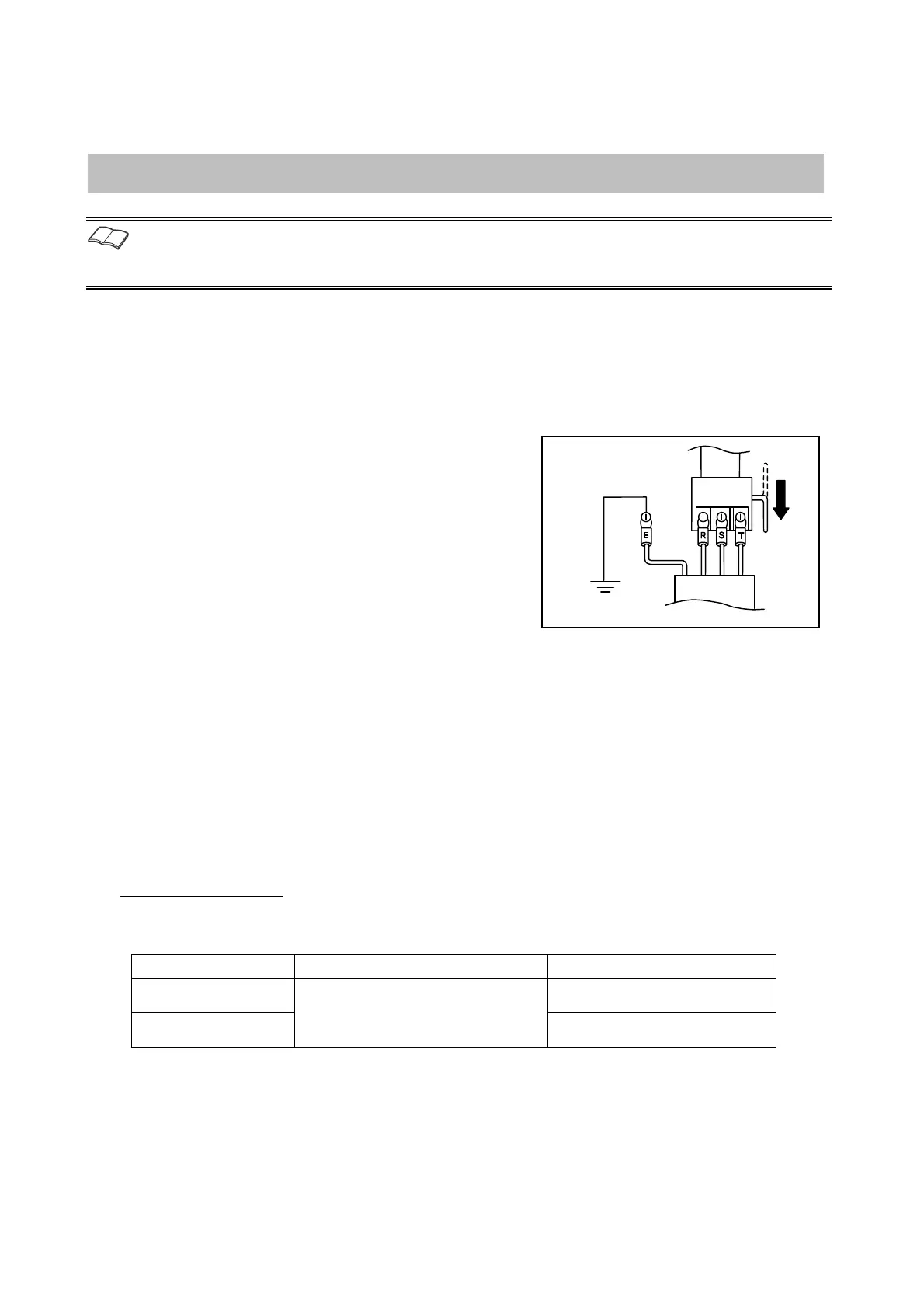

Earth
Circuit
breaker
Switchboard
Power cord
